PF5300 / PF5301 / PF5302 Socketed Programming Board

KITPF5300SKTEVM

Roll over image to zoom in

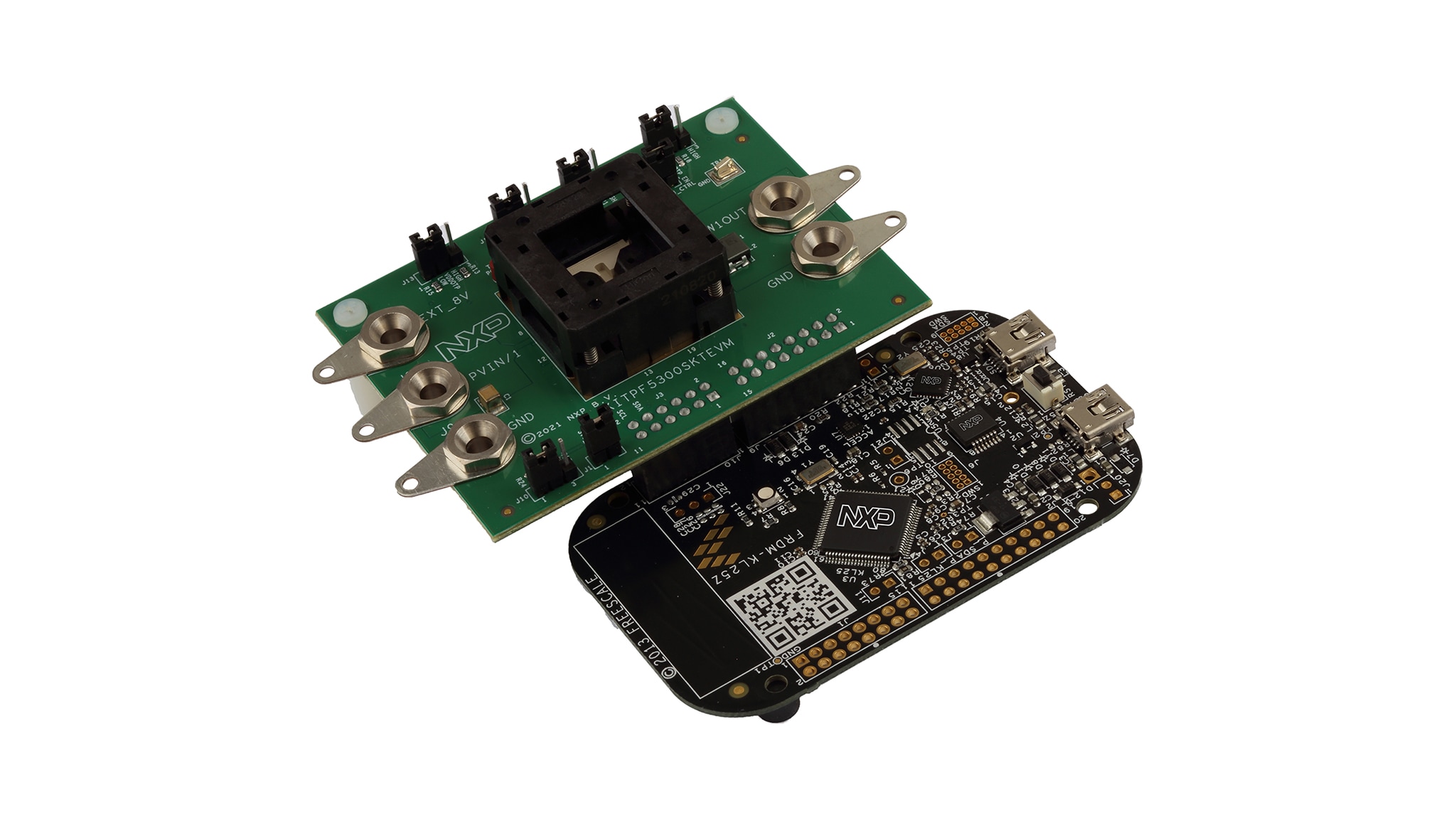

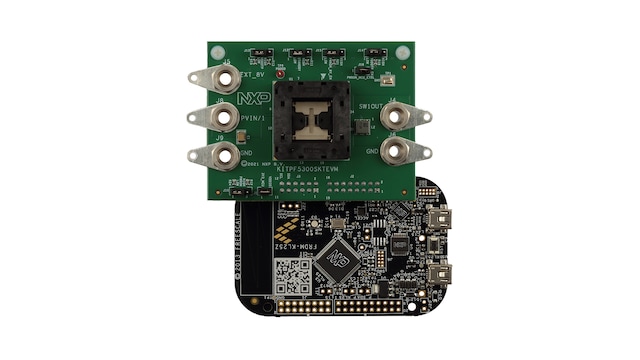

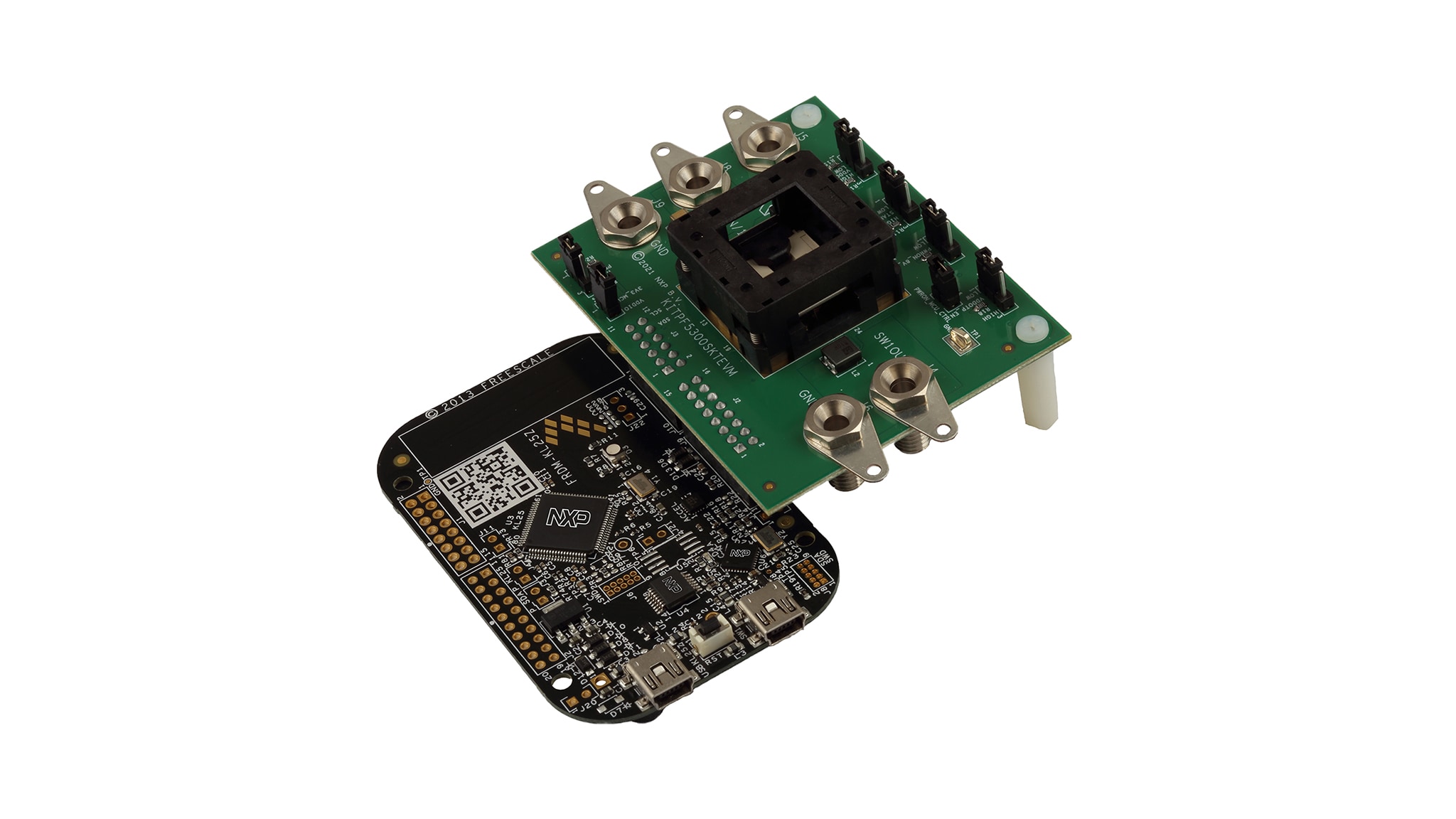

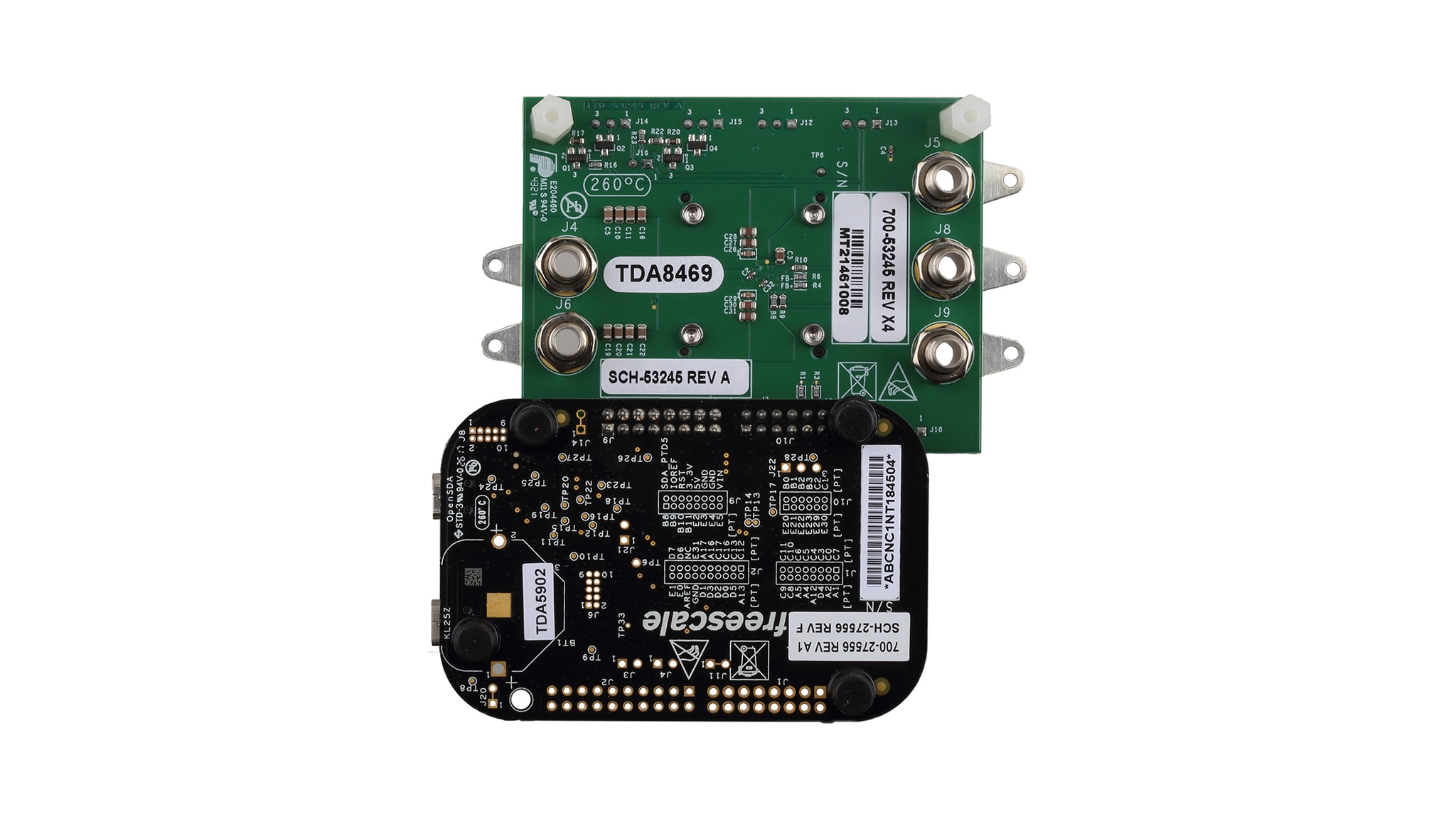

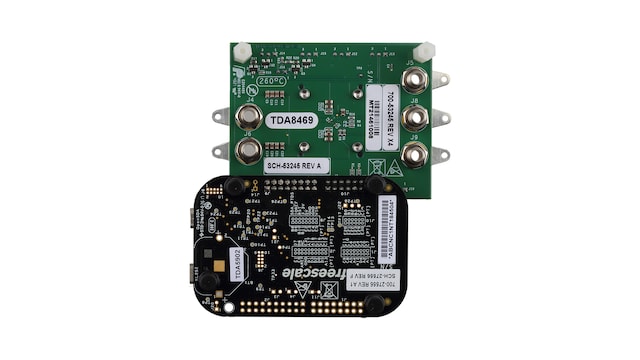

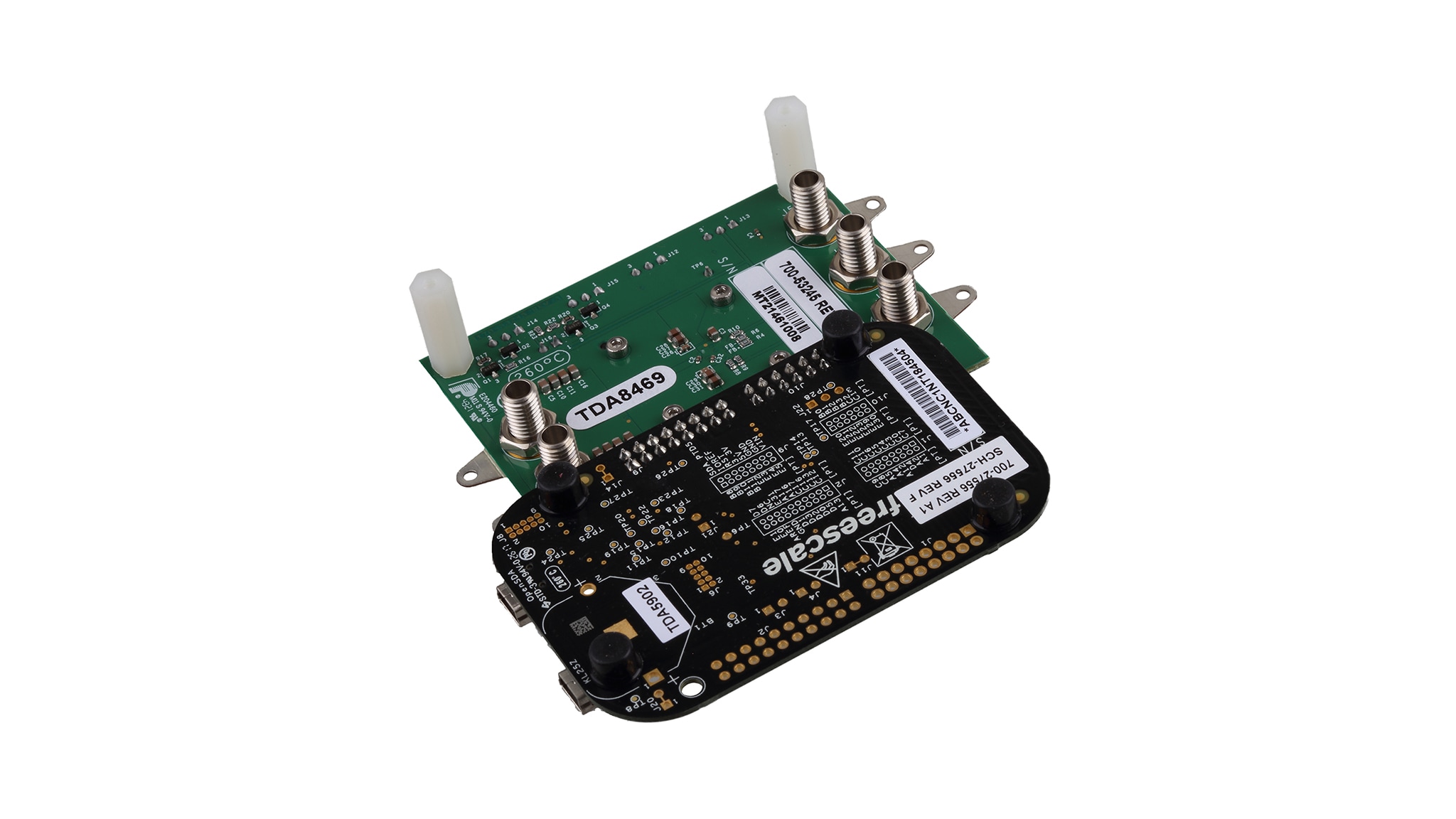

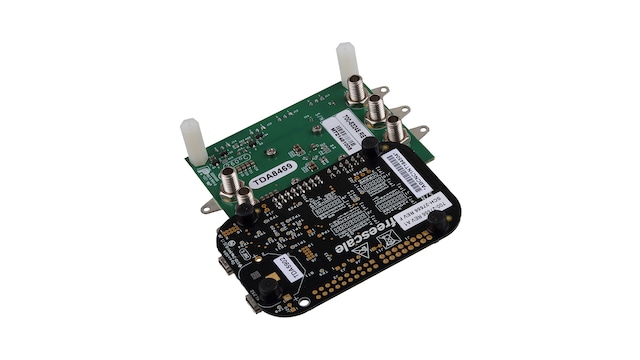

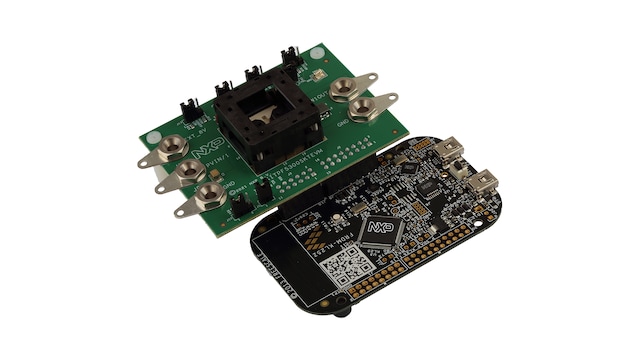

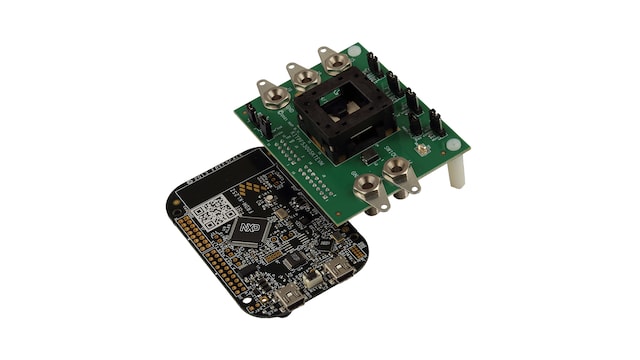

The KITPF5300SKTEVM is a customer evaluation board for OTP programming the PF5300 / PF5301 / PF5302.

The kit integrates all hardware needed to OTP program the PF5300, PF5301 and PF5302. It integrates a communication interface based on the FRDM-KL25Z freedom board to interface with the NXP GUI software to fully configure and control the PF53 PMIC.

Supported Devices

Power Management

PMICs

  • PF53: 12 A / 8 A / 15 A Core Supply Regulator with AVP and Watchdog

Features

PMICs

  • PF5300, PF5301 and PF5302 power management integrated circuits (PMICs)

Features

  • High current core supply
  • OTP Programmable
  • Fit up to ASIL D level

Connectivity

  • High-speed I²C through KL25Z

Jumpers and Switches

  • PMIC enable and IO control

Buy Options

KITPF5300SKTEVM-Image

Click to expand

  • KITPF5300SKTEVM
    Active

  • PF5300 / PF5301 / PF5302 Socketed Programming Board.

  • Kit Contains

    • Assembled and tested KITPF5300SKTEVM
    • Preprogrammed FRDM-KL25Z
    • USB-STD A to USB-B-mini cable
  • $175.60 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
