Evaluation Board for MC33810EK, Automotive Engine Control IC

KIT33810EKEVB Active

Roll over image to zoom in

This evaluation board supports the MC33810EK Automotive Engine Control IC for fuel injectors, solenoids, lamps, and relays.

  • Minimizes need for additional external discrete components
  • Reduces parts count
  • Lowers manufacturing and test cost
  • Reduced current consumption decreases battery drain during key off
  • Offers a small footprint for reduced printed circuit board area
  • Provides a simple MCU interface
  • Helps to protect against common failure conditions

Product Details

Supported Devices

Power Management

Pre-Drivers

  • MC33810: Automotive Engine Control IC

Features

General Specifications

  • Designed to operate over the range of 4.5 V ≤ VPWR ≤ 36 V
  • Quad Ignition IGBT or MOSFET gate pre-driver with Parallel/SPI and/or PWM Control
  • Quad Injector Driver with Parallel/SPI Control
  • Interfaces Directly to MCU Using 3.3 V / 5.0 V SPI Protocol
  • Injector Driver Current Limit - 4.5 A Typical
  • Independent Fault Protection and Diagnostics
  • VPWR Standby Current 10 µA Typical

Buy Options

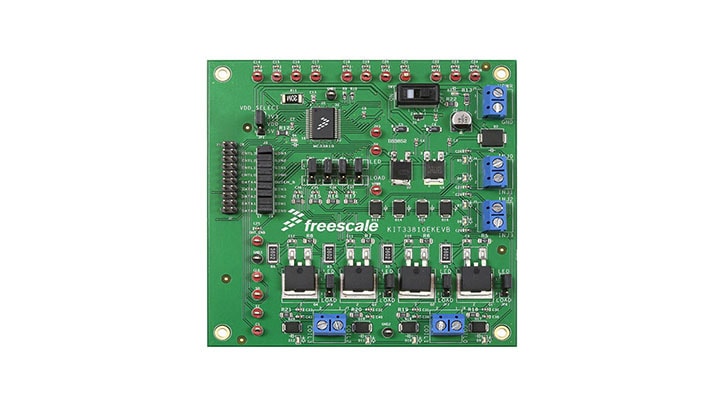

KIT33810EKEVB-Image

Click to expand

  • KIT33810EKEVB
    Active

  • Evaluation Kit - MC33810EK, Engine Control IC The 33810 is an eight channel output driver IC.

    • KIT33810EKEVB Hardware
    • Cable, Flat ribbon
    • Quick Reference Guide
  • $186.30 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
