MC33777A Evaluation Board with Isolated Daisy Chain

EVBMA777T2

Roll over image to zoom in

The EVBMA777T2 is a MC33777A evaluation board. It is designed to support the development of battery junction box, in automotive or industrial applications. The MC33777A supports ASIL D current measurements, voltage measurements and pyrotechnic switch control. The board is ideal to exercise all the IC features and develop the associated software. It communicates with an isolated daisy chain.

Supported Devices

Power Management

Battery Sensors

  • MC33777: Battery Junction Box Monitor IC

Features

Key Features

  • Four current measurement channels (supporting two ASIL D current measurements)
  • 16 analog inputs supporting redundant measurements
  • Two independent pyrotechnic switch controllers including driver stage

Connectivity

  • TPL communication, daisy chains support
  • Isolated power supply
  • All MC33777 inputs/outputs accessible with connectors

Buy Options

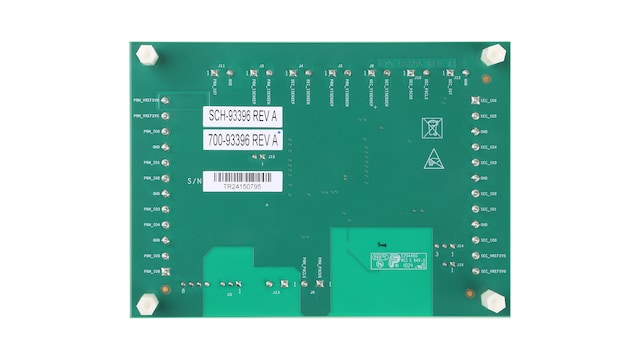

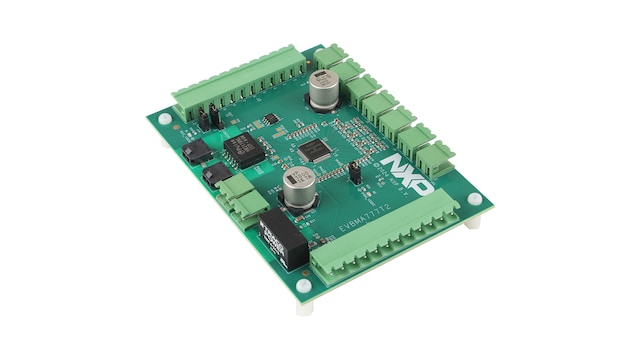

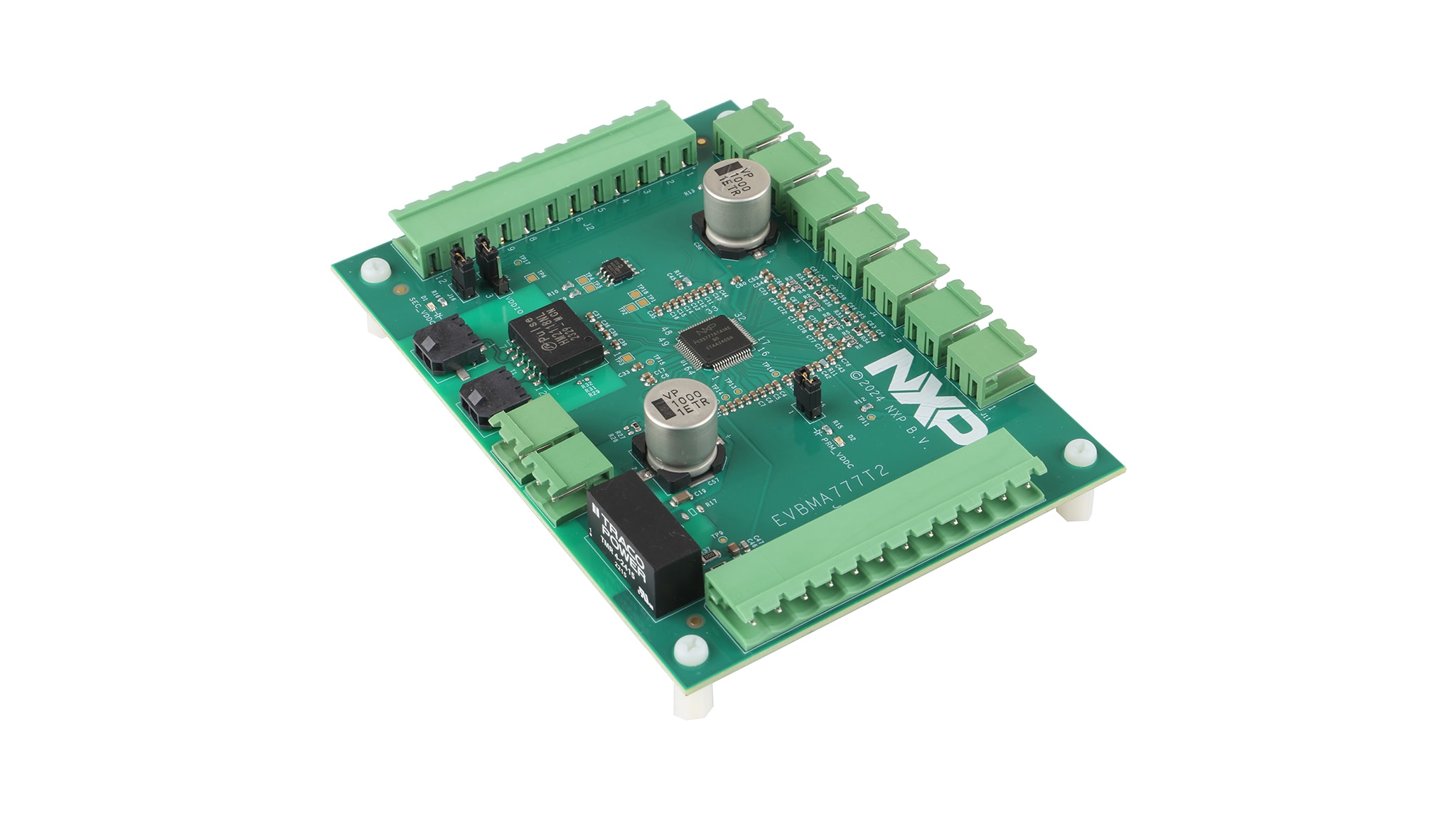

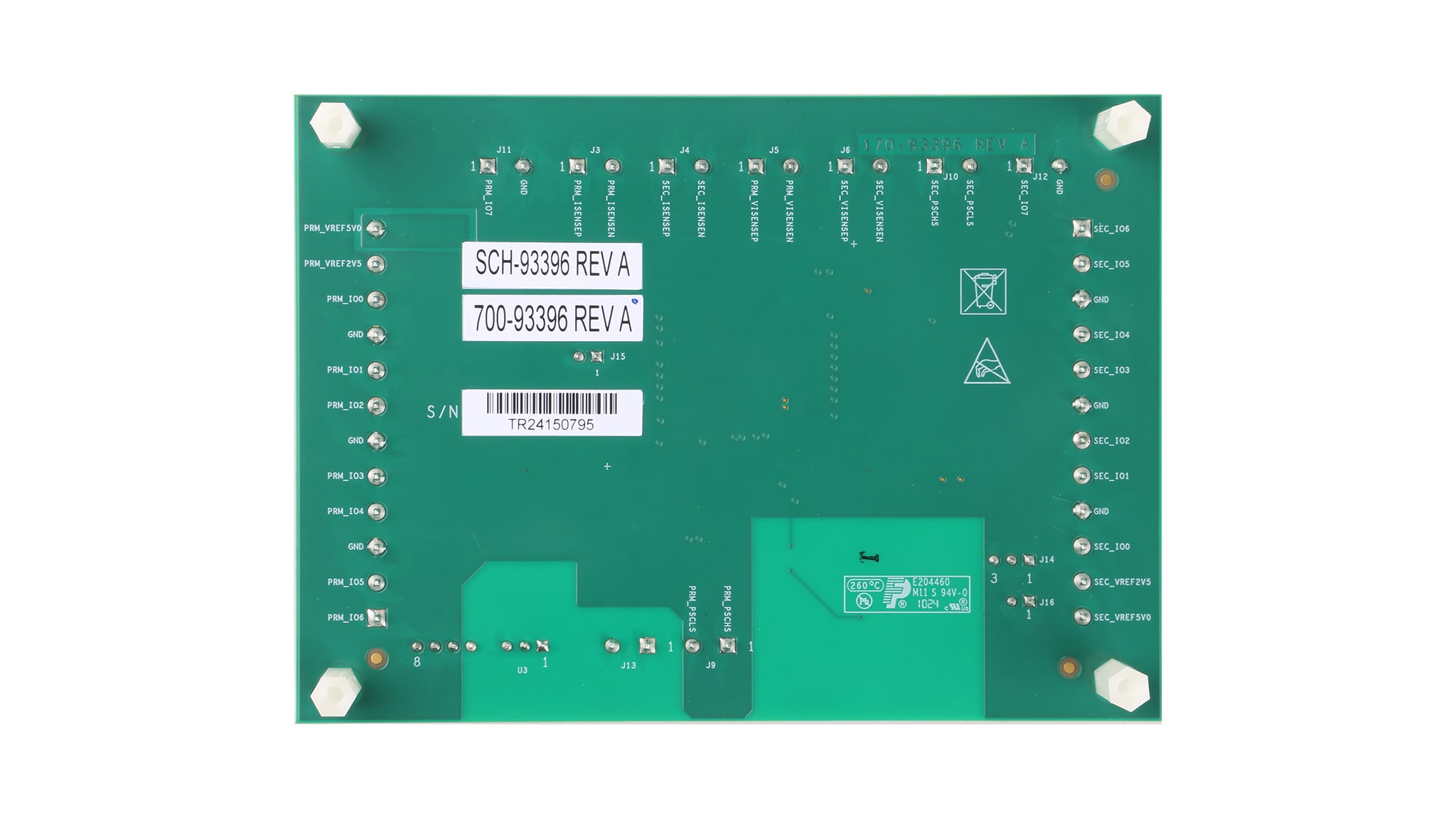

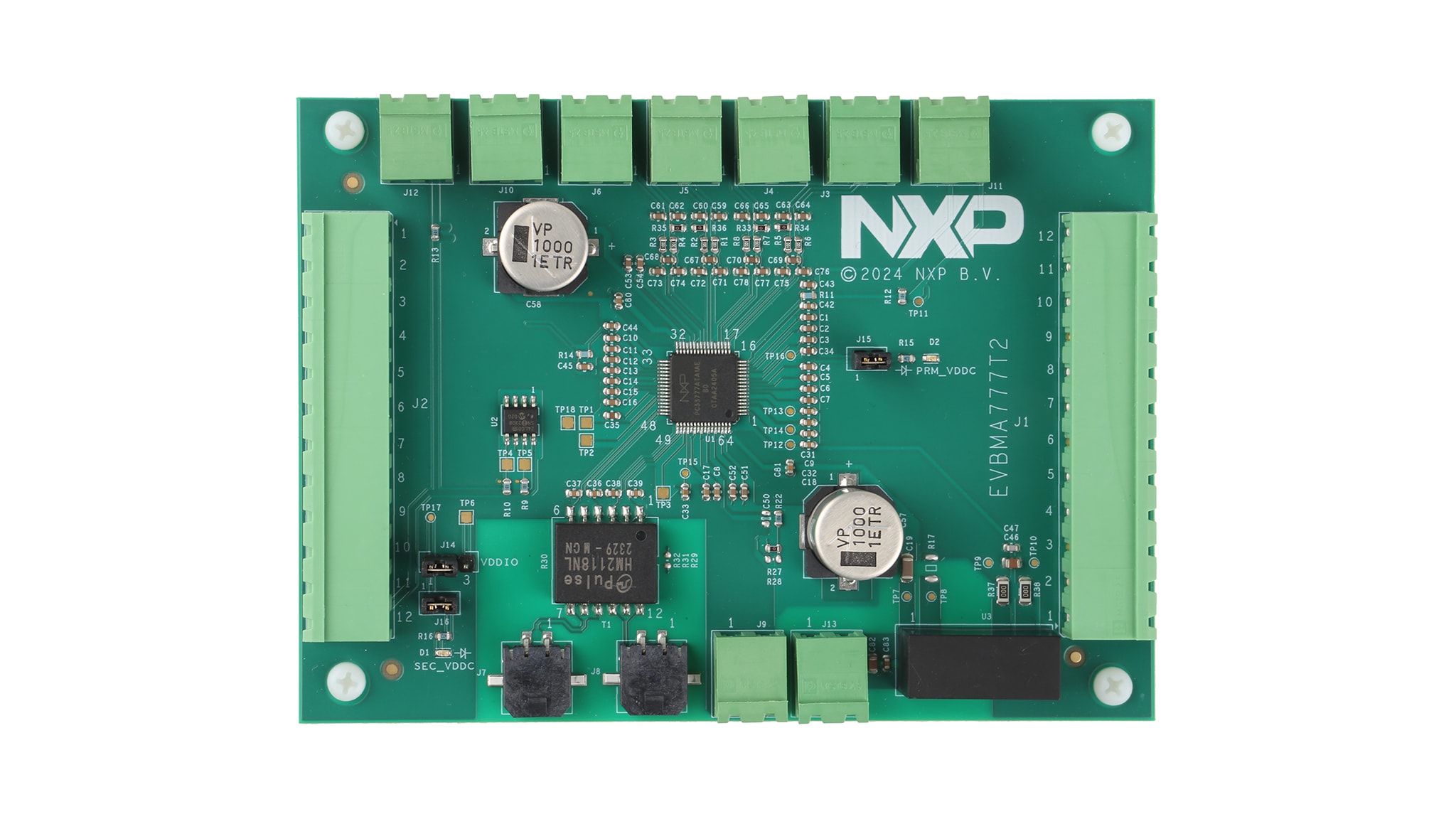

EVBMA777T2-Image

Click to expand

  • EVBMA777T2
    Active

  • MC33777A Evaluation Board with Isolated Daisy Chain.

  • Kit contains:

    • EVBMA777T2 board
    • ETPL cable
    • Power supply cable
    • Interface connectors
  • $154.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
BATT-TPLCABLE20-Image

Click to expand

  • BATT-TPLCABLE20
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE50-Image

Click to expand

  • BATT-TPLCABLE50
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
