End-Node Matter Development Platforms

END-NODE-MATTER-THREAD Active

Roll over image to zoom in

NXP’s end-node Matter with Thread Development Platforms includes the hardware, software and enablement needed to create a Matter and Thread, Matter and Wi-Fi or a Matter with Thread and Wi-Fi standalone end device.

Block Diagram

End-Node Matter with Thread Development Platform

End-node Matter with Thread Development Platform
Get diagram PDF

Supported Devices

Wireless Connectivity

Multiprotocol MCUs

  • K32W041AM-A: K32W041AM/A: High Performance, Secure and Low-Power MCU for Zigbee®, Thread™ and Bluetooth® LE 5.0 with High Tx Power Option
  • K32W061_41: K32W061/41: High-Performance, Secure and Ultra-Low-Power MCU for Zigbee®,Thread™, and Bluetooth® LE 5.0 with Built-In NFC Option
  • K32W148: Secure and Ultra-Low-Power MCU for Matter Over Thread™ and Bluetooth® LE 5.3

Wi-Fi® + Bluetooth® + 802.15.4

  • RW612: Wireless MCU with Integrated Tri-radio: 1x1 Wi-Fi® 6 + Bluetooth® Low Energy 5.4 / 802.15.4

Features

Multiprotocol Wireless MCUs

  • Robust and reliable connectivity: Matter over Thread wireless mesh (K32W0x, K32W1x)
  • Tri-radio wireless MCU: Matter over Thread, Matter over Wi-Fi
  • Bluetooth Low Energy for commissioning Matter devices
  • Single MCU to run application and connectivity stacks

Target Matter Device Types

  • Sensors, actuators
  • Smart plugs
  • Smart lighting
  • Smart window shades
  • Battery-operated devices

Development Platform Features

  • User guide describing how to get the development platform up and running
  • Orderable development boards
  • Complimentary development software downloadable from GitHub

Buy Options

IOTZTB-DK006-Image

Click to expand

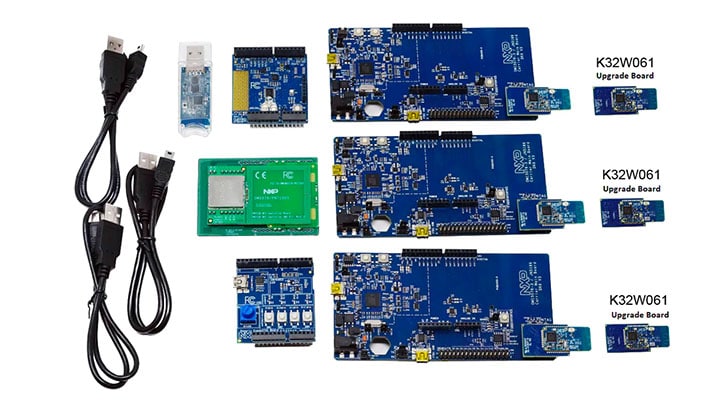

  • IOTZTB-DK006
    Active

  • Advanced Development Kit for K32W061 and JN5189/88.

    • 3 Motherboards
    • Daughterboards: Generic Switch Node, Light/Sensor Node, NFC Reader/Writer
    • 3 x K32W061 Upgrade Boards
    • 3 x JN5189 Upgrade boards
    • On-board CMSIS offering Serial Wire Debug (SWD) and UART interfaces
    • On-board 3.3 V from USB port, batteries, or external power supply options
    • Arduino compatible interface to easy system prototyping
    • USB dongle
  • $525.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 22
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
