RD33774CNC3EVB
Active -
HVBMS Hardware Reference Design Using CAN FD.
Kit contains:
- 1 RD33774CNC3EVB board
- 3 supply cables
- 1 CAN and power cable
- 1 ETPL cable

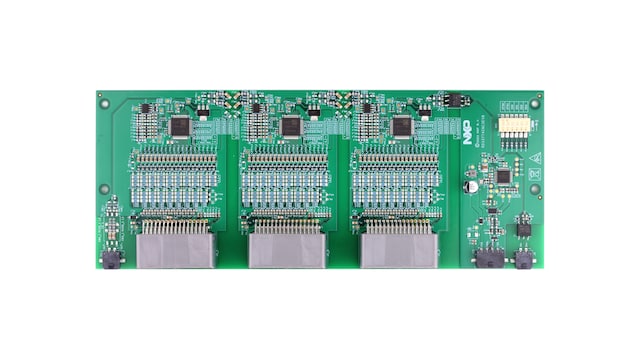

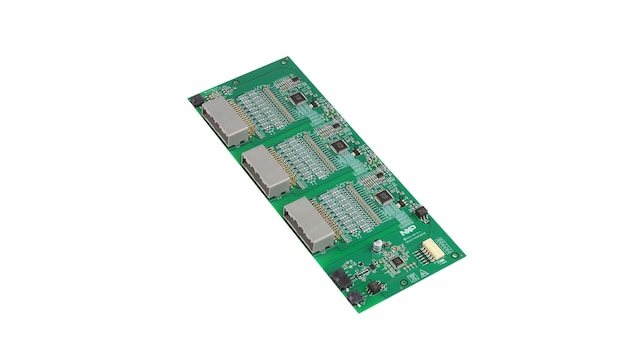

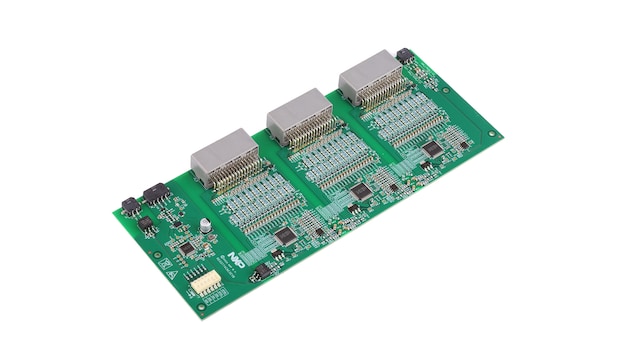

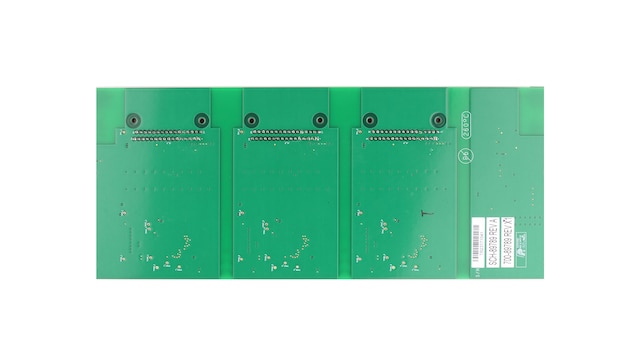

The RD33774CNC3EVB is a centralized cell monitoring unit (CMU) reference design CAN (FD) communication. It is ideal for rapid prototyping of a high-voltage battery management system (HVBMS). This board contains three MC33774 analog front ends (AFEs) in a daisy chain.
HVBMS Hardware Reference Design Using CAN FD.
