LPC845 Multi-Tool Tester Platform

LPC845-Multi-Tester

Roll over image to zoom in

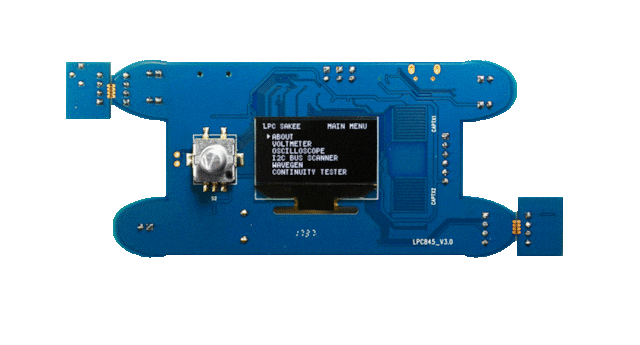

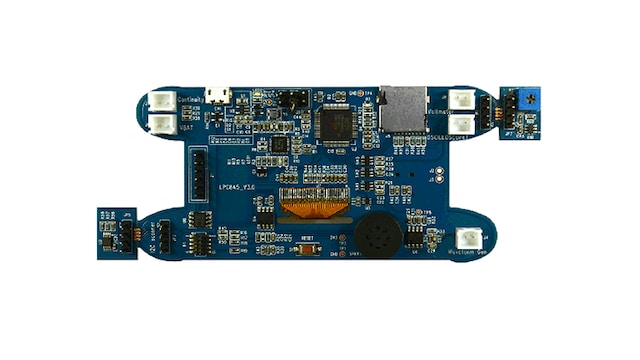

Our low cost, multitester platform is suitable for adaptation to a range of system monitoring applications.

Provided as an open source design, the code and board files for this multitester are fully available for use as the starting point for customer designs.

Block Diagram

LPC845 Multi-tool Tester

LPC845 Based Swiss Army Knife Multi-Tool Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

LPC800 Arm Cortex-M0+

  • LPC84X: LPC840: 32-Bit Arm® Cortex®-M0+-Based Low-Cost MCU

LPC1100 Arm Cortex-M0+/M0

  • LPC11U00: Scalable Entry Level 32-bit Microcontroller (MCU) based on Arm® Cortex®-M0+ and Cortex®-M0 Cores

Features

Peripherals

  • OLED dot-matrix display
  • Oscilloscope with AC-DC input coupling control
  • Voltmeter
  • Continuity tester
  • Built-in speaker with amplifier

Design Features

  • User interface control using rotary encoder, controlled using LPC845 SCT
  • I2C-bus scanner detects all connected I2C devices

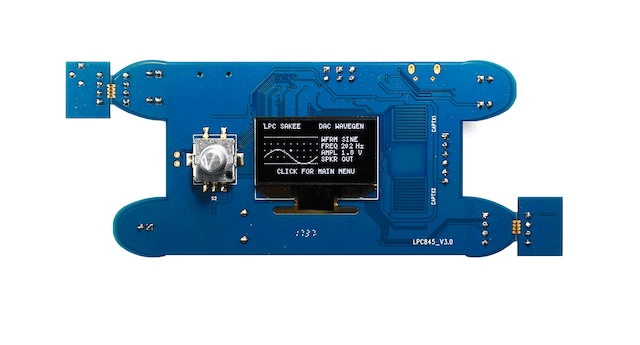

  • Waveform generator with sine, triangle, exponential, and user waveform output
  • Integrated debug probe / USB VCOM interface

Buy Options

OM13097-Image

Click to expand

  • OM13097

  • LPCXpresso845-MAX Board for LPC84x MCU family.

  • Kit contains:

    • LPCXpresso845-MAX Development Board
  • $21.85 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
