Name: Advanced Development Kit for JN5189/88
Price: 573.85 USD

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

PRODUCT MIGRATION:

The JN5189-DK006 Development Kit has been replaced by the IOTZTB-DK006 Development Kit. The IOTZTB-DK006 supports the JN5189/88 and K32W061/41 wireless MCU portfolios. Please visit the IOTZTB-DK006 website.

The JN5189-DK006 evaluation kit works with the NXP JN518x range of ultra-low-power, high-performance wireless MCUs suitable for ZigBee, Thread and other IEEE 802.15.4-based network applications such as Smart Lighting and Home Automation. JN5189-DK006 is composed of rich components, including a control bridge with an NFC reader, generic switch node, light/sensor node and USB dongle that allows for a small wireless network to be quickly assembled.

Design Files

Software

Product Details

Features

Processor

Up to 48MHz Arm^® Cortex^®-M4
Up to 640 kB flash, up to 152 kB RAM, 128 kB ROM
NFC NTAG Option with EEPROM
2.4 GHz IEEE 802.15.4 compliant

Connectivity

Standard Arduino compatible header
2 x DMIC
USB2UART Converter

Power Management

Flexible power supply option:

External DC power supply
on-board batteries
USB port

Debug

High-speed USB based, Link2 debug probe with Arm’s CMSIS-DAP and SEGGER J-Link protocol options.
Link2 probe can be used with on-board JN5189 or external target

Wireless

IEEE 802.15.4 compatible PCB antenna
NFC antenna

Sensors

Humidity / temperature sensor
Light sensor / Gyroscope / 6-axis sensor

Software and support application development

MCUXpresso SDK
MCUXpresso IDE
MCUXpresso Config Tools

Buy Options

Click to expand

JN5189-DK006
Advanced Development Kit for JN5189/88.
Kit contains:
- Generic Router with NFC Reader
- Generic Switch Node
- Light/Sensor node
- USB dongle

$573.85 USD
For a quantity of 1

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Documentation

Quick reference to our documentation types.

1-5 of 10 documents

^{User Guide}
JN5189(T)/JN5188(T) User manualGetting Started

PDFRev 1.5Jun 23, 202112.5 MBUM11138English
Sign in required
^{User Guide}
JN5189-DK006 Development Kit Getting StartedGetting Started

PDFRev 1.0Jan 14, 2020906.7 KBUM11356English
Sign in required
^{User Guide}
JN5189-DK006 Development Kit User GuideGetting Started

PDFRev 3Apr 15, 20212.4 MBUM11368English, 中文
Sign in required
^{User Guide}
Getting Started with JN5189Getting Started

HTMLFeb 24, 2020GS-JN5189English
^{Data Sheet}
JN5189(T)/JN5188(T): IEEE 802.15.4 low power wireless MCU

PDFRev 1.3Jun 24, 20211.4 MBJN5189English
^{Reference Manual}
JN5189 Coin-cell Switch

PDFRev 0100Jan 17, 20201.2 MBRM00226English
Sign in required
^{Application Note}
K32W061 High Power Support

PDFRev 1.2 (1v2)Apr 29, 2020317.3 KBJN-AN-1252English
^{Application Note}
Temperature-Dependent Operating Guidelines

PDFRev 1.1Apr 28, 2020205.2 KBJN-AN-1264English
^{Application Note}
Calculating 802.15.4 Data Rates

PDFRev 1.4Apr 28, 2020385.9 KBJN-AN-1035English
^{Fact Sheet}
JN5189: High Performance, Ultra-low power MCU for Zigbee and OpenThread with built-in NFC option

PDFRev 1Feb 20, 2020230.9 KBJN5189_88FSEnglish, 中文

Show All

Design Resources

Related Hardware

Quick reference to our board types.

1 hardware offering

^{Evaluation and Development Boards}

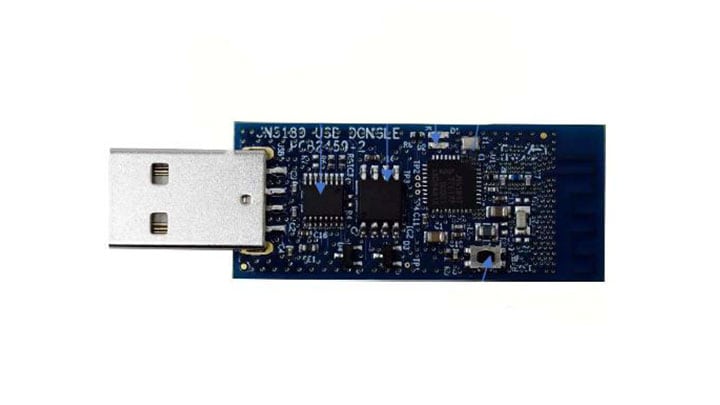

JN5189 USB Dongle for Zigbee and Thread network
