NXH5104A Demo Board

NXH5104ADB Active

Roll over image to zoom in

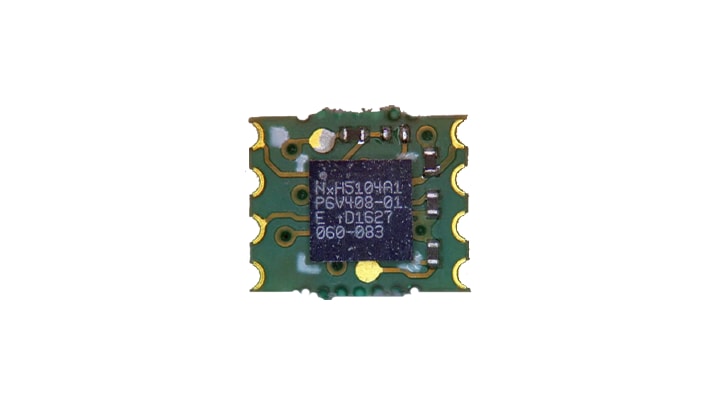

The NxH5104_SOIC_ADB is a small PCB that adapts the NxH5104 WLCSP package into an 8-SOIC JEDEC compliant footprint. The NxH5104_SOIC_ADB replaces an industry standard SPI compatible Serial E2PROM and extends the memory to 4Mbit. The board is intended to evaluate the NxH5104; this board is not targeted for mass production.

Product Details

Supported Devices

Wireless Connectivity

MiGLO®

Buy Options

NXH5104ADB-Image

Click to expand

  • NXH5104ADB
    Active

  • 4MB EEPROM demo board, SO8-footprint compatible.

    • NxH5104_SOIC_ADB adaptor board
  • $100.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
