TWRPI-MMA845xQ Schematic
NXP Accelerometer Tower System Plug-In
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.
Archived content is no longer updated and is made available for historical reference only.

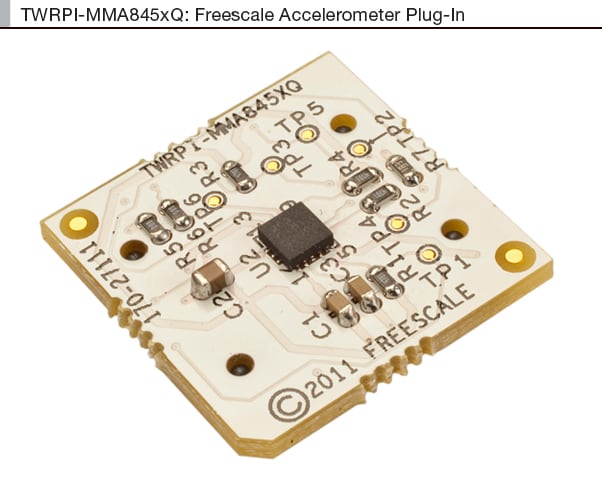

Offered as an attachment for various Tower® System modules, the TWRPI-MMA845XQ accelerometer accelerates your design time. It features the NXP® MMA8451Q 3-axis accelerometer with 14 bits of resolution and brings freefall/motion, pulse, and jolt detection to life in your designs. Simply place the TWRPI-MMA845XQ NXP Accelerometer Plug-In onto a parent controller or peripheral module in the Tower System, and start prototyping quickly and easily.

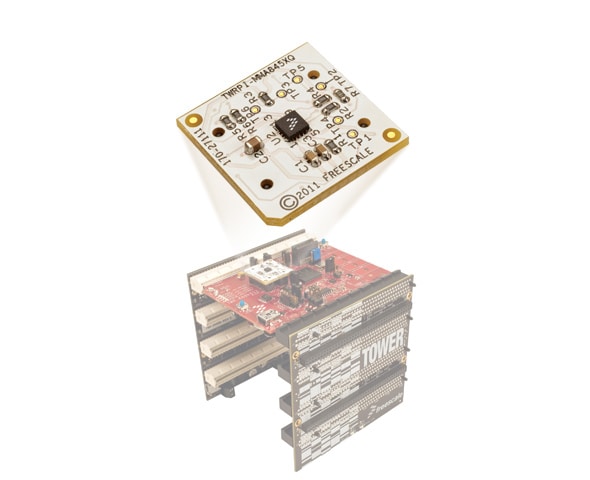

It is a great addition to the Kinetis® KwikStik development tool or any Tower System module containing TWRPI sockets.
Product Details
Supported Devices
Sensors
Accelerometers
- MMA8451Q: ±2g/±4g/±8g, Low g, 14-bit Digital Accelerometer
Features
Connectivity
- Compatible with the Tower® System modules that use swappable (Tower) Plug-ins (TWRPIs)
Sensors
- MMA8451Q I2C 3-axis accelerometer
- Smart low-power, three-axis, capacitive micromachined accelerometer with 14-bits of resolution
- Freefall/Motion, Pulse, and Jolt Detection
- Programmable interrupts
