GPS/GNSS Low-Noise Amplifier Evaluation Board Using BGU7007

OM7697

Roll over image to zoom in

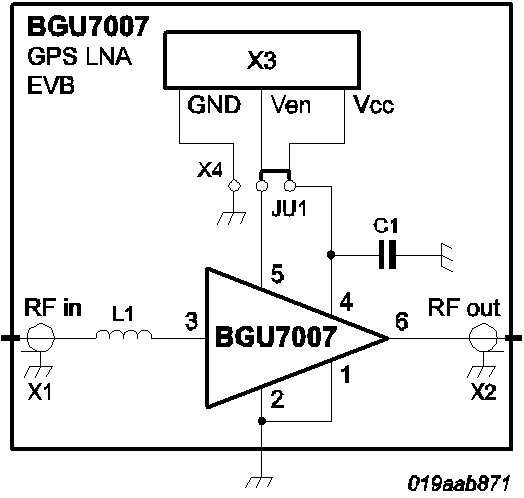

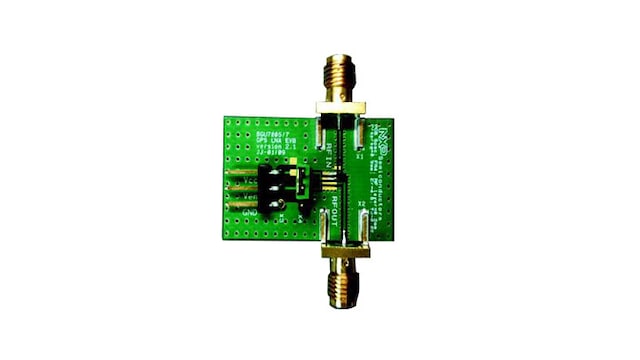

The BGU7007 GPS LNA evaluation board simplifies the evaluation of the BGU7007 LNA for the GPS application. The evaluation board enables testing of the device performance and requires no additional support circuitry. The board is fully assembled with the BGU7007, the input series inductor and a decoupling capacitor. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU7007 can operate from a 1.5 V to 2.85 V single supply and consumes about 4.7 mA.

Supported Devices

RF

Legacy RF Low-Medium Power Amplifiers

  • BGU7007: SiGe:C LNA MMIC for GPS, GLONASS, Galileo and Compass

Features

Connectivity

  • Two SMA connectors for input and output connection to RF test equipment

Power Management

  • Evaluation of the power on settling time ton and the power off settling time toff

Buy Options

OM7697-Image

Click to expand

  • OM7697

  • GPS/GNSS low-noise amplifier evaluation board using BGU7007.

    • Kit Contains:

    • BGU7007 LNA evaluation board in ESD safe packing
    Order from distributors
