GPS/GNSS Low-Noise Amplifier Evaluation Board Using BGU7005

OM7624

Roll over image to zoom in

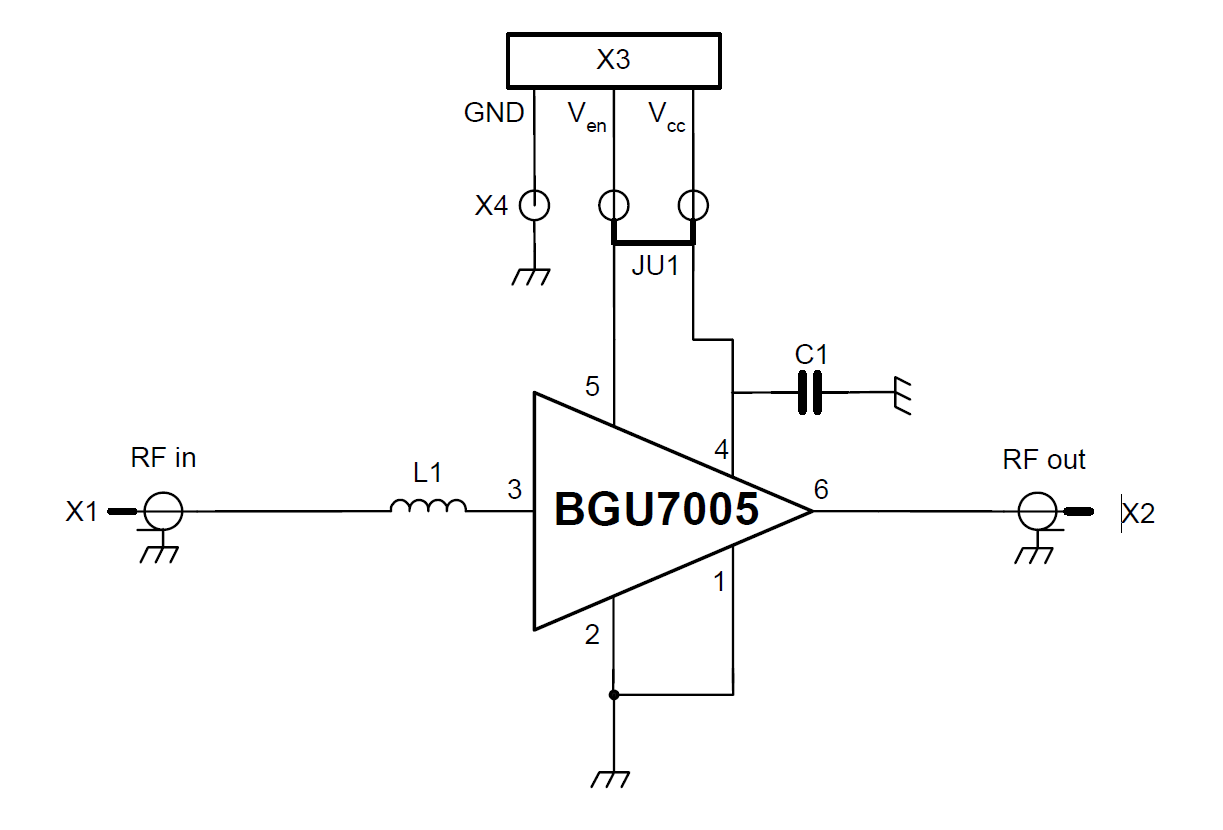

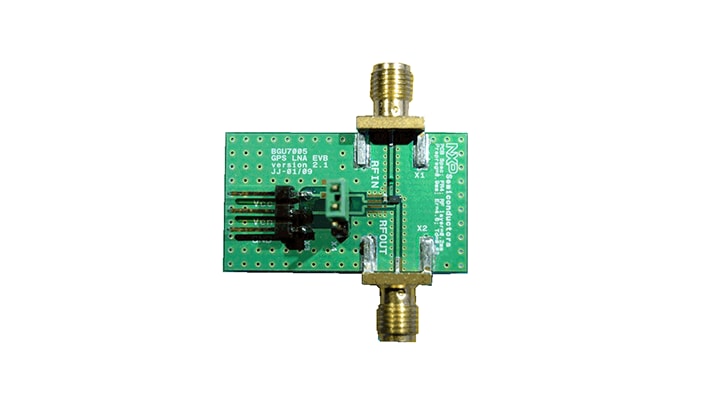

The BGU7005 GPS LNA evaluation board simplifies the evaluation of the BGU7005 LNA for the GPS application. The evaluation board enables testing of the device performance and requires no additional support circuitry. The board is fully assembled with the BGU7005, the input series inductor and a decoupling capacitor. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU7005 can operate from a 1.5 V to 2.85 V single supply and consumes about 4.7 mA.

Supported Devices

RF

Legacy RF Low-Medium Power Amplifiers

  • BGU7005: SiGe:C LNA MMIC for GPS, GLONASS, Galileo and Compass

Features

Connectivity

  • Two SMA connectors for input and output connection to RF test equipment

Power Management

  • Evaluation of the power on settling time ton and the power off settling time toff

Buy Options

OM7624-Image

Click to expand

  • OM7624

  • GPS/GNSS low-noise amplifier evaluation board using BGU7005.

    • Kit Contains:

    • BGU7005 LNA evaluation board in ESD safe packing
