MSC8156 Application Development System
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.
Archived content is no longer updated and is made available for historical reference only.

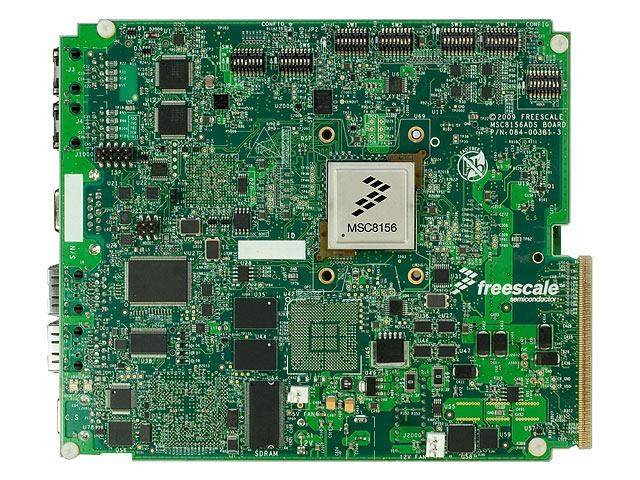

The MSC8156 application development system (MSC8156ADS) is a complete debugging environment intended for engineers developing applications for the MSC8156, MSC8154, MSC8256, MSC8254, MSC8252, and MSC8251 NXP® digital signal processors (DSPs). The MSC815x and MSC825x family of DSPs are highly integrated DSP processors that contain one, two, four, or six StarCore® SC3850 DSP subsystems ranging from 8 GMACS to 48 GMACs with each DSP core running up to 1 GHz. These devices target high-bandwidth, highly computational DSP applications such as 3GPP, TD-SCDMA, 3G-LTE, and WiMAX base station applications as well as medical imaging, aerospace, defense, video, voice, and advanced test and measurement.

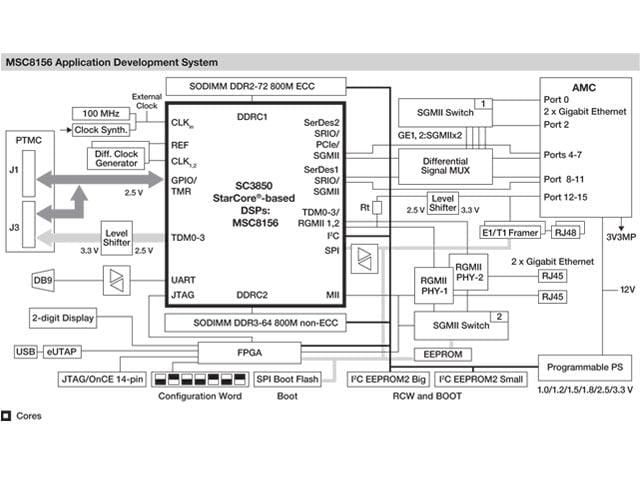

The MSC8156ADS is intended to serve as a platform for software and hardware development in processor environments using the MSC815x and MSC825x family of DSPs. Onboard resources and the associated debugger enable developers to perform a variety of tasks, including:
- Download and run code
- Set breakpoints
- Display memory and registers
- Connect proprietary hardware via an expansion connector
