Tracer Tool for PT2000 and MC33816

KITPSCDEBUGEVM Active

Roll over image to zoom in

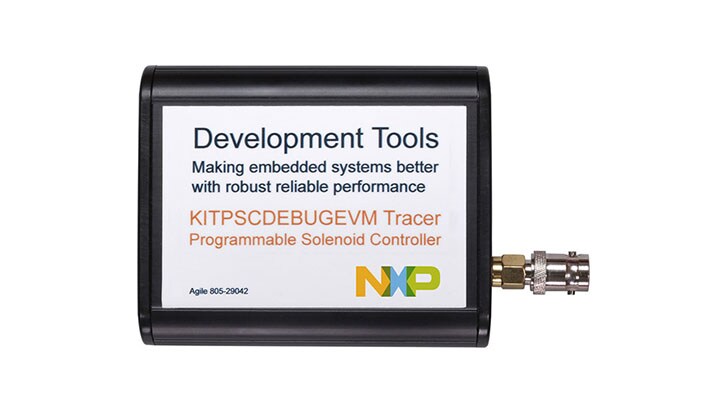

The Tracer Module is a tool that monitors the trace output from the MC33816 and PT2000 PSC devices. It records the execution path of the microcode and the time spent on each instruction. The Tracer is a valuable tool for determining the real-time performance of your PSC application. It is controlled using the Tracer interface tab on the Developer Studio IDE.

Product Details

Supported Devices

Power Management

Powertrain and Engine Control

  • MC33816: SD6 Programmable Driver for Solenoid Control
  • PT2000: Programmable Solenoid Controller Gate Driver

Features

KITPSCDEBUGEVM Features:

  • USB connector use to communicate between the PT2000/MC33816 IDE and tracer
  • Coaxial connector to be connected to the DBG pin and GND.
  • Green LED LED is ON when calibration sequence is received, therefore the tracer
  • board is ready to receive the trace code sequence
  • Yellow LED LED is ON when tracer RAM is full
  • Red LED LED is ON when tracer is waiting for calibration pulses

PT2000 / MC33816 Features:

  • Battery voltage range, 5.5 < VBATT < 72 V
  • Predrive operating voltage up to 72 V
  • High side/low side predrive PWM capability up to 100 kHz
  • All predrivers have four selectable slew rates
  • Twelve selectable, predefined VDS/VSRC monitoring thresholds
  • Encryption for microcode protection
  • Integrated 1.0 MHz back-up clock

Buy Options

KITPSCDEBUGEVM-Image

Click to expand

  • KITPSCDEBUGEVM

  • Tracer Debug Module for MC33816 and PT2000.

    • Assembled and tested evaluation board/module in anti-static bag
    • KITPSCDEBUG EVM
    • USB to mini USB cable
    • Warranty card
  • $274.62 USD
  • For a quantity of 1
    • Availability: Pending Stock
