- No Longer Manufactured
- MPC17510
H-Bridge, Brushed DC Motor Driver, 2-15 V, 3.8 A, 200 kHz
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

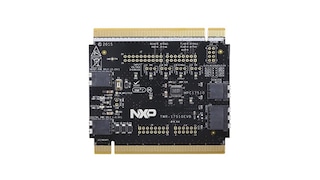

The NXP® MPC17510 is a monolithic H-Bridge motor driver that is ideal for portable electronic applications to control small Brush DC-motors such as digital still and single lens cameras.
- 2 V to 15 V H-Bridge motor driver with enable and tri-state bridge control via a parallel MCU interface
- The IC has low ON-resistance of 0.55 Ohm (max.) and the drivers can be PWM-ed at 200 kHz control frequency
- Contains an integrated charge pump and level shifter (for gate drive voltages), in addition to integrated shoot through current protection and undervoltage circuit detector to avoid malfunction
- The MPC17510 can control 4 output modes: Forward, Reverse, Brake, Tri-state (Open)
Product Details
Features
General
- Motor power supply 15 V operation
- Low RDS(ON) 0.45 Ohm (typ)
- Output current 1 A (DC), 3 A (Peak)
- Shoot through current protection circuit
- PWM control input frequency 200 kHz
- Parallel interface and input control
- Ambient operating temperature -30 °C (Min), 65 °C (Max)
- Load supply voltage 2 V (Min), 15 V (Max)
