Universal LCD driver for low multiplex rates

PCF8576CTT
No Longer Manufactured
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

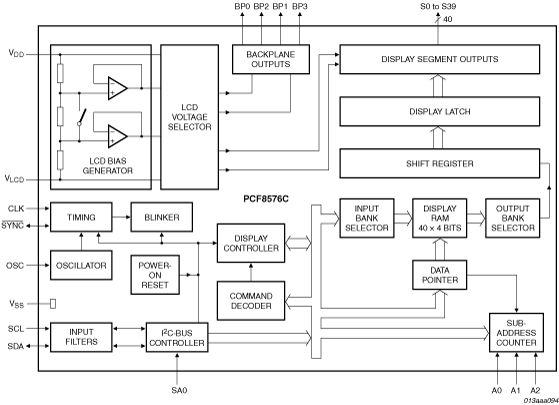

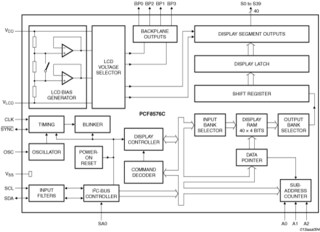

The PCF8576C is a peripheral device which interfaces to almost any Liquid Crystal Display (LCD) with low multiplex rates. It generates the drive signals for any static or multiplexed LCD containing up to four backplanes and up to 40 segments and can easily be cascaded for larger LCD applications. The PCF8576C is compatible with most microprocessors or microcontrollers and communicates via a two-line bidirectional I²C-bus. Communication overheads are minimized by a display RAM with auto-incremented addressing and by hardware subaddressing.

Buy/Parametrics

1 result

Exclude 1 NRND

Part

Show description

CAD Model

Package Type

Max number of elements

Segments/elements of MUX 1:1

Segments/elements of MUX 1:2

Segments/elements of MUX 1:3

Segments/elements of MUX 1:4

VDD1 [min] (V)

VDD1 [max] (V)

VLCD [min] (V)

VLCD [max] (V)

ffr

Cascade for larger conf

PCF8576CTT
Data Sheet

Replacement part(s): PCF8576CT

HTSSOP56

160

40

80

120

160

2

6

2.5

6

69.0

Y

N true 0 PSPPCF8576CTTen 5 Application Note Application Note t789 2 Data Sheet Data Sheet t520 1 Package Information Package Information t790 1 User Guide User Guide t792 1 en_US en_US en Data Sheet Data Sheet 1 1 13.0 English 1442061529005725477118 PSP 496.0 KB None None documents None 1442061529005725477118 /docs/en/data-sheet/PCF8576C.pdf 496000 /docs/en/data-sheet/PCF8576C.pdf PCF8576C documents N 2015-09-12 Universal LCD driver for low multiplex rates /docs/en/data-sheet/PCF8576C.pdf /docs/en/data-sheet/PCF8576C.pdf Data Sheet N 980000996212993340 2022-12-07 pdf en Dec 16, 2013 980000996212993340 Data Sheet Y N Universal LCD driver for low multiplex rates Application Note Application Note 2 2 1.0 English 1442086925102718658114 PSP 931.7 KB None None documents None 1442086925102718658114 /docs/en/application-note/AN11267.pdf 931745 /docs/en/application-note/AN11267.pdf AN11267 documents N N 2016-07-11 EMC and system level ESD design guidelines for LCD drivers /docs/en/application-note/AN11267.pdf /docs/en/application-note/AN11267.pdf Application Note N 645036621402383989 2025-02-10 pdf N en Mar 6, 2015 645036621402383989 Application Note Y N EMC and system level ESD design guidelines for LCD drivers 3 1.0 English 1442087330310721534478 PSP 763.2 KB None None documents None 1442087330310721534478 /docs/en/application-note/AN10853.pdf 763238 /docs/en/application-note/AN10853.pdf AN10853 documents N N 2016-07-11 ESD and EMC sensitivity of IC /docs/en/application-note/AN10853.pdf /docs/en/application-note/AN10853.pdf Application Note N 645036621402383989 2025-02-10 pdf N en Mar 14, 2013 645036621402383989 Application Note Y N ESD and EMC sensitivity of IC User Guide User Guide 1 4 6.0 Japanese 1442125286808710770774ja PSP 751.0 KB None None documents None 1442125286808710770774 /docs/ja/user-guide/UM10204.pdf 750958 /docs/ja/user-guide/UM10204.pdf UM10204 documents N N 2016-07-12 I2C-bus specification and user manual /docs/ja/user-guide/UM10204.pdf /docs/ja/user-guide/UM10204.pdf User Guide N 132339537837198660 2024-10-24 ja Apr 28, 2014 132339537837198660 User Guide Y N I2C-bus specification and user manual 7.0 English NXP Semiconductors developed a simple bidirectional 2-wire bus for efficient inter-IC control. This bus is called the Inter-IC or I2C-bus. Only two bus lines are required: a serial data line (SDA) and a serial clock line (SCL). Serial, 8-bit oriented, bidirectional data transfers can be made at up to 100 kbit/s in the Standard-mode, up to 400 kbit/s in the Fast-mode, up to 1 Mbit/s in the Fast-mode Plus (Fm+), or up to 3.4 Mbit/s in the High-speed mode. 1442125286808710770774 PSP 751.0 KB None None documents None 1442125286808710770774 /docs/en/user-guide/UM10204.pdf 750958 /docs/en/user-guide/UM10204.pdf UM10204 documents N N 2016-07-12 I2C-bus specification and user manual /docs/en/user-guide/UM10204.pdf /docs/en/user-guide/UM10204.pdf User Guide N 132339537837198660 2024-10-24 pdf N en Oct 1, 2021 132339537837198660 User Guide Y N I2C-bus specification and user manual Package Information Package Information 1 5 1.0 English 1455078619910687266678 PSP 191.0 KB None None documents None 1455078619910687266678 /docs/en/package-information/SOT793-1.pdf 191000 /docs/en/package-information/SOT793-1.pdf SOT793-1 documents N 2016-03-17 plastic thermal enhanced thin shrink small outline package; 56 leads; body width 6.1 mm; exposed die pad /docs/en/package-information/SOT793-1.pdf /docs/en/package-information/SOT793-1.pdf Package Information N 302435339416912908 2022-12-07 pdf en Feb 8, 2016 302435339416912908 Package Information Y N plastic thermal enhanced thin shrink small outline package; 56 leads; body width 6.1 mm; exposed die pad false 0 PCF8576CTT downloads en true 1 Y PSP Application Note 2 /docs/en/application-note/AN11267.pdf 2016-07-11 1442086925102718658114 PSP 2 Mar 6, 2015 Application Note None /docs/en/application-note/AN11267.pdf English documents 931745 None 645036621402383989 2025-02-10 N /docs/en/application-note/AN11267.pdf EMC and system level ESD design guidelines for LCD drivers /docs/en/application-note/AN11267.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N EMC and system level ESD design guidelines for LCD drivers 931.7 KB AN11267 N 1442086925102718658114 /docs/en/application-note/AN10853.pdf 2016-07-11 1442087330310721534478 PSP 3 Mar 14, 2013 Application Note None /docs/en/application-note/AN10853.pdf English documents 763238 None 645036621402383989 2025-02-10 N /docs/en/application-note/AN10853.pdf ESD and EMC sensitivity of IC /docs/en/application-note/AN10853.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N ESD and EMC sensitivity of IC 763.2 KB AN10853 N 1442087330310721534478 Data Sheet 1 /docs/en/data-sheet/PCF8576C.pdf 2015-09-12 1442061529005725477118 PSP 1 Dec 16, 2013 Data Sheet None /docs/en/data-sheet/PCF8576C.pdf English documents 496000 None 980000996212993340 2022-12-07 /docs/en/data-sheet/PCF8576C.pdf Universal LCD driver for low multiplex rates /docs/en/data-sheet/PCF8576C.pdf documents 980000996212993340 Data Sheet N en None Y pdf 13.0 N Universal LCD driver for low multiplex rates 496.0 KB PCF8576C N 1442061529005725477118 Package Information 1 /docs/en/package-information/SOT793-1.pdf 2016-03-17 1455078619910687266678 PSP 5 Feb 8, 2016 Package Information None /docs/en/package-information/SOT793-1.pdf English documents 191000 None 302435339416912908 2022-12-07 /docs/en/package-information/SOT793-1.pdf plastic thermal enhanced thin shrink small outline package; 56 leads; body width 6.1 mm; exposed die pad /docs/en/package-information/SOT793-1.pdf documents 302435339416912908 Package Information N en None Y pdf 1.0 N plastic thermal enhanced thin shrink small outline package; 56 leads; body width 6.1 mm; exposed die pad 191.0 KB SOT793-1 N 1455078619910687266678 User Guide 1 /docs/en/user-guide/UM10204.pdf 2016-07-12 1442125286808710770774 PSP 4 Oct 1, 2021 User Guide NXP Semiconductors developed a simple bidirectional 2-wire bus for efficient inter-IC control. This bus is called the Inter-IC or I2C-bus. Only two bus lines are required: a serial data line (SDA) and a serial clock line (SCL). Serial, 8-bit oriented, bidirectional data transfers can be made at up to 100 kbit/s in the Standard-mode, up to 400 kbit/s in the Fast-mode, up to 1 Mbit/s in the Fast-mode Plus (Fm+), or up to 3.4 Mbit/s in the High-speed mode. None /docs/en/user-guide/UM10204.pdf English documents 750958 None 132339537837198660 2024-10-24 N /docs/en/user-guide/UM10204.pdf I2C-bus specification and user manual /docs/en/user-guide/UM10204.pdf documents 132339537837198660 User Guide N en None Y pdf 7.0 N N I2C-bus specification and user manual 751.0 KB UM10204 N 1442125286808710770774 true Y Products
