Small Engine Control

KIT912P812ECUEVM No Longer Manufactured
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

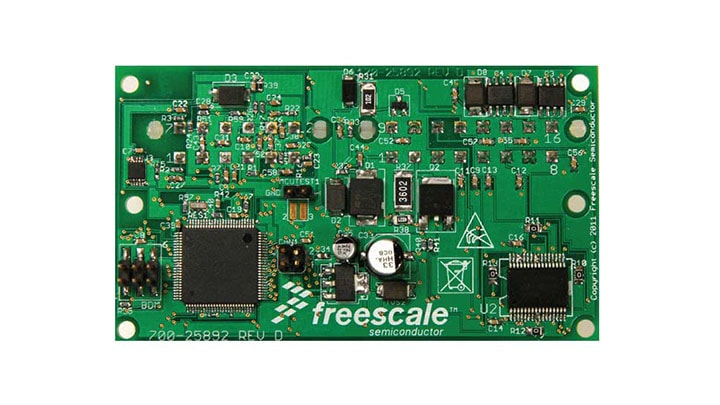

This reference design board supports the NXP® MM912_P812 engine control IC combining an MCU (S12P) and analog control die (MC33812) intended for motorcycle and other single/dual cylinders small engine control applications.

Analog control IC consists of three integrated low side drivers, one pre-driver, a +5.0 V, voltage preregulator, an MCU watchdog circuit, an ISO 9141 K-Line interface, and a parallel interface for MCU communication.

Archived content is no longer updated and is made available for historical reference only.

Product Details

Block Diagram

Small Engine Control

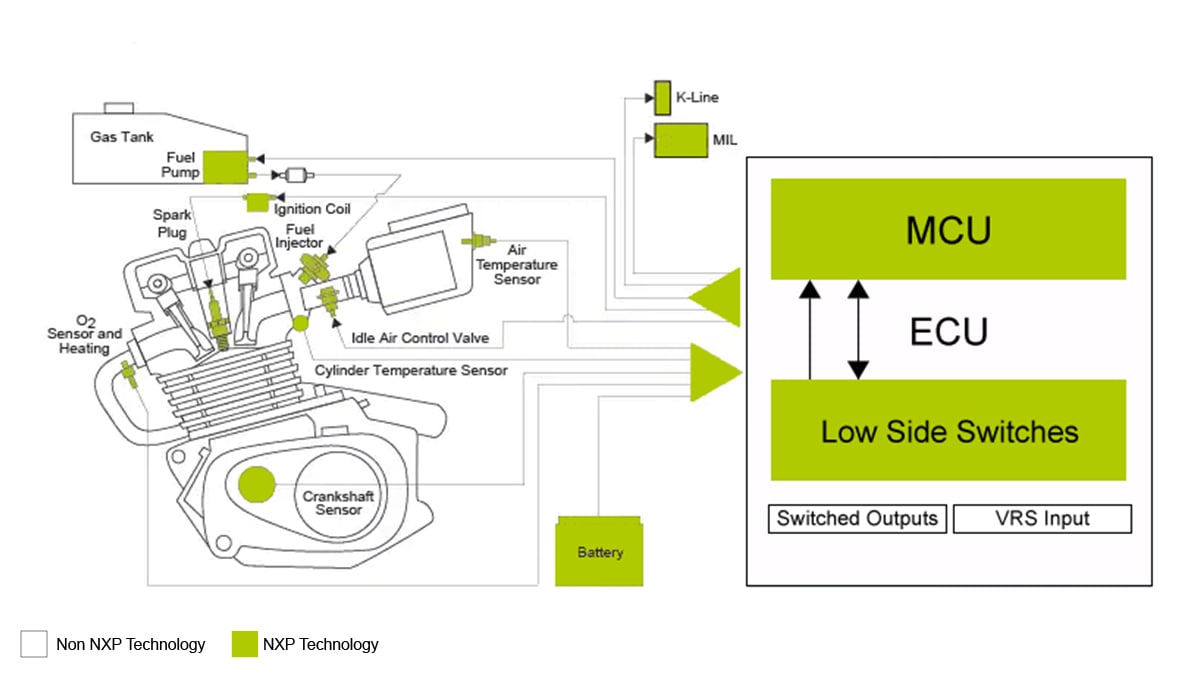

Small Engine Control Block Diagram
Get diagram PDF

Features

Power

  • VCC voltage pre-regulator provides +5.0 V power for the MCU
  • Designed to operate over the range of ~4.7 V ≤ VPWR ≤ 36 V

Communication

  • ISO-9141 K-Line transceiver for communicating diagnostic messages
  • All signal lines are accessible

Operation

  • Lamp driver current limit 1.5 A typical
  • Relay/Injector/Fuel pump driver current limit 4.0 A typical

Timer

  • MCU watchdog timer circuit with parallel refresh/time setting line
N true 0 PSPKIT912P812ECUEVMen 2 Data Sheet Data Sheet t520 1 User Guide User Guide t792 1 en_US en_US 1 1 3.0 English Welcome to the NXP Small Engine Reference Design Kit. This product was designed to be a complete solution for the electronic control of a small engine. Small engines are defined as a one or two cylinder engine for use in anything from a motorbike to a lawn mower to a generator. While the decision was made to address a one-cylinder engine specifically, this design is extremely useful for two-cylinder engine with relatively little modification and in some cases as is. NXP’s concept of cr 1345240950264725562343 PSP 7.1 MB None None documents Y None 1345240950264725562343 /docs/en/user-guide/KT912_P812ECUUG.pdf 7090110 /docs/en/user-guide/KT912_P812ECUUG.pdf KT912_P812ECUUG N N 2016-10-31 KIT912_P812ECUEVM Small Engine Reference Design - User Guide /docs/en/user-guide/KT912_P812ECUUG.pdf /docs/en/user-guide/KT912_P812ECUUG.pdf User Guide N 132339537837198660 2023-06-19 pdf N en Jan 22, 2013 User Guide t792 User Guide User Guide Y N KIT912_P812ECUEVM Small Engine Reference Design - User Guide false en Data Sheet Data Sheet 1 2 1.0 English The MM912xP812 is an engine control IC combining an MCU (S12P) and analog control die (MC33812) intended for motorcycle and other single/dual cylinders small engine control applications. 1338497708135730054042 PSP 564.4 KB None None documents None 1338497708135730054042 /docs/en/data-sheet/MM912_P812.pdf 564351 /docs/en/data-sheet/MM912_P812.pdf MM912_P812 documents N N 2016-10-31 MM912_P812, S12P MCU and Multifunctional Ignition and Injector Driver System In Package (SiP) /docs/en/data-sheet/MM912_P812.pdf /docs/en/data-sheet/MM912_P812.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en May 31, 2012 980000996212993340 Data Sheet Y N MM912_P812, S12P MCU and Multifunctional Ignition and Injector Driver System In Package (SiP) false 0 KIT912P812ECUEVM downloads en true 0 Y PSP Data Sheet 1 /docs/en/data-sheet/MM912_P812.pdf 2016-10-31 1338497708135730054042 PSP 2 May 31, 2012 Data Sheet The MM912xP812 is an engine control IC combining an MCU (S12P) and analog control die (MC33812) intended for motorcycle and other single/dual cylinders small engine control applications. None /docs/en/data-sheet/MM912_P812.pdf English documents 564351 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/MM912_P812.pdf MM912_P812, S12P MCU and Multifunctional Ignition and Injector Driver System In Package (SiP) /docs/en/data-sheet/MM912_P812.pdf documents 980000996212993340 Data Sheet N en None Y pdf 1.0 N N MM912_P812, S12P MCU and Multifunctional Ignition and Injector Driver System In Package (SiP) 564.4 KB MM912_P812 N 1338497708135730054042 User Guide 1 /docs/en/user-guide/KT912_P812ECUUG.pdf 2016-10-31 1345240950264725562343 PSP 1 Jan 22, 2013 User Guide User Guide Welcome to the NXP Small Engine Reference Design Kit. This product was designed to be a complete solution for the electronic control of a small engine. Small engines are defined as a one or two cylinder engine for use in anything from a motorbike to a lawn mower to a generator. While the decision was made to address a one-cylinder engine specifically, this design is extremely useful for two-cylinder engine with relatively little modification and in some cases as is. NXP’s concept of cr Y None /docs/en/user-guide/KT912_P812ECUUG.pdf English 7090110 None User Guide 2023-06-19 N /docs/en/user-guide/KT912_P812ECUUG.pdf KIT912_P812ECUEVM Small Engine Reference Design - User Guide /docs/en/user-guide/KT912_P812ECUUG.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 3.0 N N KIT912_P812ECUEVM Small Engine Reference Design - User Guide 7.1 MB KT912_P812ECUUG N 1345240950264725562343 true Y Designs
