Sensor Toolbox Development Boards for a 9-Axis Solution using MMA8652FC, FXAS21002C and MAG3110

AGM04-SOLUTION Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

Sensor Toolbox provides a wide variety of sensor boards with compatible software tools for NXP’s 9-axis solution (MMA8652FC accelerometer + MAG3110 magnetometer + FXAS21002C Gyroscope).

Sensor Boards:

Embedded Software Framework:

Evaluation and Visualization Software:

Product Details

Features

Demonstration Kit

  • Enables 'Out of the box' demo and evaluation using the Sensor Toolbox - CE
    • Graph Visualization, Register level analysis, real-time interrupt evaluation, and data logging for each sensor: MMA8652C, MAG3110, and FXAS21002C.
  • Enables embedded sensor project development using IoT Sensing SDK.
    • Example projects for all sensors such as interrupt, polling and FIFO-based streaming, MMA8652 Freefall Detection, MAG3110 one-shot mode
    • Algorithms such as Sensor Fusion and Pedometer
  • Enables visualization of 9-Axis sensor data and orientation results using Sensor Fusion Visualization Software

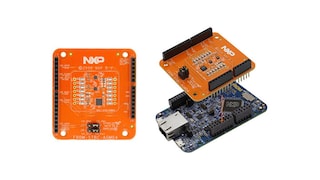

Sensor Shield Board

  • Compatible with Arduino® and most NXP Freedom development boards
  • Allows evaluation of current consumption and pin voltage characteristics

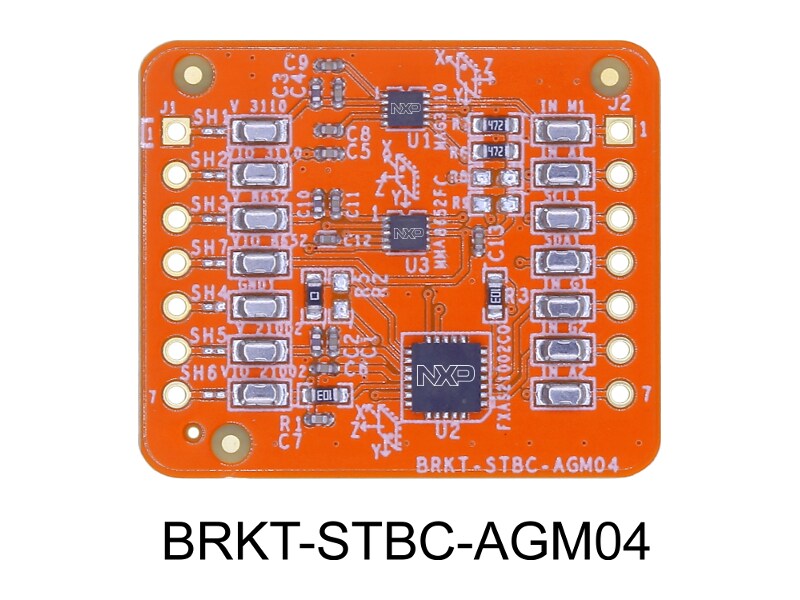

Breakout board

  • Small form factor with the same design as the FRDMSTBC-A8491
  • Enables easy prototyping: Can be easily wired or clipped onto host systems.
