The NX5DV330 is a quad 1-of-2 high-speed TTL-compatible video multiplexer/demultiplexer. The low ON resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise

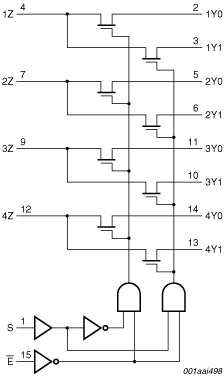

It has a digital select input (S), four independent inputs/outputs (nY0, nY1), a common input/output (nZ) and an active LOW enable input (E). When pin E is HIGH, the switch is turned off.
Schmitt-trigger action at the enable input (E) and select input (S) makes the circuit tolerant to slower input rise and fall times across the entire VCC range from 4.0 V to 5.5 V.
The NX5DV330 is characterized for operation from -40 Cel to +85 Cel.
1 result
Exclude 1 NRND
Part | CAD Model | Family | Status | Configuration | Function | VCC (V) | Logic switching levels | RON (Ohm) | f(-3dB) (MHz) | Xtalk (dB) | Power dissipation considerations | Tamb (°C) | Rth(j-a) (K/W) | th(j-top) (K/W) | Package Type | Number of pins |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NX5 | No Longer Manufactured | 4PDT-Z | four-pole, double-throw switch | 4.0 - 5.5 | TTL | 7 | 400 | -63 | ultra low | -40~85 | 148 | 42 | SSOP16 | 16 |
