MC9S12XDP512 Evaluation Board

EVB9S12XDP512 Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

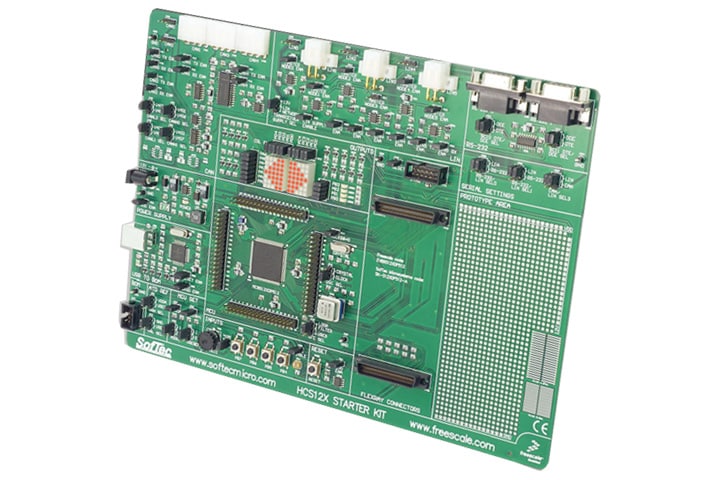

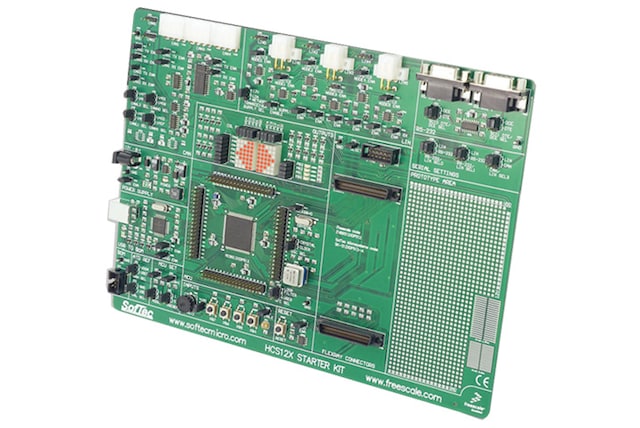

The NXP ® MC9S12XDP512 evaluation board (EVB9S12XDP512) allows you to develop and evaluate the MC9S12XDP512 MCU family of applications.

  • Packed with useful features that include LEDs, push buttons, two 7x5 dot-matrix displays, light sensor, potentiometer, I/O header, LIN interface, CAN interface, prototype area, and RS-232 COM port.
  • Visit Softec for the latest software drivers and information.

Supported Devices

Processors and Microcontrollers

16-Bit S12 and S12X MCUs

  • S12XA: S12XA Automotive and Industrial Microcontrollers (MCUs)
  • S12XD: S12XD Automotive and Industrial Microcontrollers (MCUs)
  • S12XF: S12XF Automotive and Industrial Microcontrollers (MCUs)
  • S12XHZ: S12XHZ Scalable Instrument Clusters Microcontrollers (MCUs) with CAN
