HCS08QG8 Student Learning Kit Schematic
- No Longer Manufactured
- HCS08QG8 8-bit Microcontroller Student Learning Kit

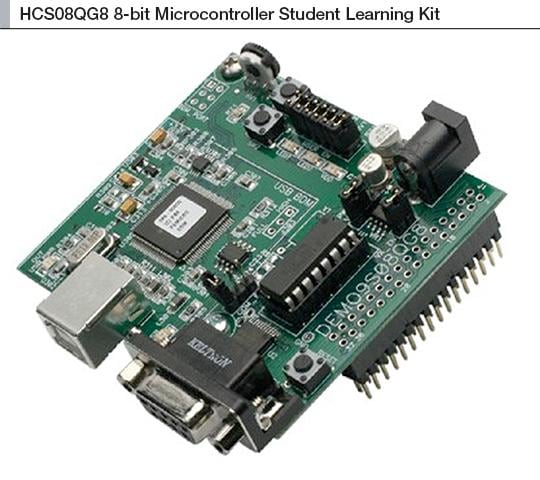

HCS08QG8 8-bit Microcontroller Student Learning Kit
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.
The HCS08QG8 8-bit microcontroller student learning kit offers an excellent beginner's architecture to teach and learn from. The MCS08QG8 is a simple device with a small instruction set and a removable dual-inline package (DIP).
In addition to the HCS08QG8 kit a companion microcontroller project board is also available.
Archived content is no longer updated and is made available for historical reference only.
Documentation
Quick reference to our documentation types.
1-5 of 8 documents
-
User Guide
Software to Accompany HCS08 Quick Reference User GuideGetting Started
-
User Guide
Application Module Student Learning Kit featuring the NXP® MC9S08QG8 - User’s GuideGetting Started
-
User Guide
HCS08QG8 Module Board User's GuideGetting Started
