Cost-Efficient 16-Bit DSP with DDR Controller and 10/100 Mbps Ethernet MAC

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

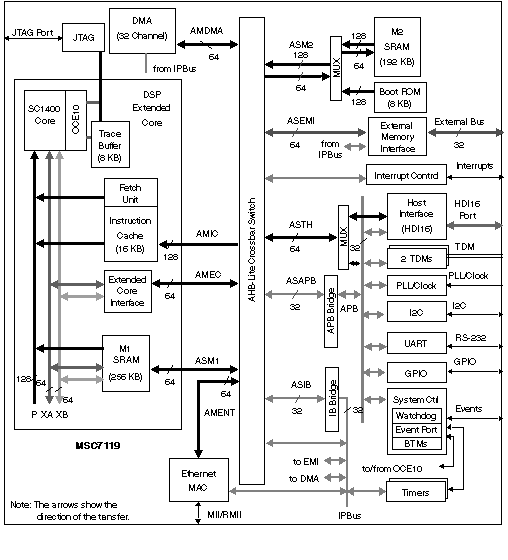

The MSC7119 device is a member of the NXP^® MSC711x family, a high-performance, cost-effective family of DSPs based on the StarCore^® ™ SC1400 core that offers system solutions, flexibility with peripherals and performance, and overall system cost savings. Devices in the MSC711x family target high-bandwidth highly computational DSP applications and are optimized for packet telephony applications, providing a competitive price per channel for voice over packet systems. The MSC7119 is a highly integrated DSP that contains the SC1400 core, on-chip emulation logic, 448 KB of SRAM memory, 16 KB ICache, 8 KB boot ROM, an 8 KB trace buffer, a 32-channel DMA controller, a 4-layer crossbar switch, a DDR memory controller, two 128-channel time-division multiplexing (TDM) interfaces with hardware support for m/A-law decoding/encoding, a UART, a 16-bit host interface (HDI16) to support an external host processor, a programmable interrupt controller (PIC), a 10/10Base-T MII/RMII, an I2C interface, eight timers, GPIOs, and a JTAG port. The SC1400 core has four ALUs and performs at 1200 DSP million multiply-accumulates per second (MMACS) with an internal 300 MHz clock at 1.2 V.

Data Sheet

Reference Manual

Product Details

Part numbers include: MSC7119VF1200.

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Documentation

Quick reference to our documentation types.

1-5 of 61 documents

^{Data Sheet}
MSC7119 Technical Data

PDFRev 8Apr 22, 20081.2 MBMSC7119English
^{Reference Manual}
MSC711x Reference Manual

PDFRev 1Nov 10, 20066.4 MBMSC711XRMEnglish
^{Reference Manual}
SC100 Application Binary Interface

PDFRev 2.0Jun 1, 2002762.5 KBMNSC100ABIEnglish
^{Application Note}
Tuning C Code for StarCore-Based Digital Signal Processors

PDFRev 2Jul 2, 2008199.3 KBAN3357English
^{Application Note}
MSC711x Design Checklist

PDFRev 7Jun 6, 2008160.8 KBAN2786English
^{Application Note}
MSC81xx and MSC711x JTAG Connectivity

PDFRev 0Apr 23, 200895.9 KBAN3726English
^{Application Note}
Interfacing the MSC711x TDM to A/D, D/A and Codecs

PDFRev 1Feb 1, 2008178.8 KBAN3067English
^{Application Note}
Decision Feedback Equalizer for StarCore^®-Based DSPs

PDFRev 2Oct 18, 2007476.9 KBAN2072English
^{Application Note}
MSC711x Memory Controller Usage Guidelines: Supporting Double Data Rate (DDR) SDRAM Devices

PDFRev 1Mar 7, 2007759.6 KBAN2893English
^{Application Note}
MSC711x Ethernet Quick Start

PDFRev 0Nov 20, 2006563.3 KBAN3099English
^{Application Note}
MSC711n Debugging Techniques Using the Event Port

PDFRev 0Jul 13, 2006521.8 KBAN3073English
^{Application Note}
Using the SC140/SC1400 Enhanced On-Chip Emulator Stopwatch Timer

PDFRev 2Jun 15, 2006772.9 KBAN2090English
^{Application Note}
Tuning an Application to Prevent M1 Memory Contention

PDFRev 0May 18, 2006536.6 KBAN3076English
^{Application Note}
Channel Estimation in OFDM Systems

PDFRev 0Jan 31, 2006407.1 KBAN3059English
^{Application Note}
MSC711x Optimization Techniques

PDFRev 0Jan 26, 2006169.4 KBAN3060English
^{Application Note}
Data Acquisition for the MCS711x Utilizing the SC140 Libraries

PDFRev 0Jan 17, 2006241.6 KBAN3061English
^{Application Note}
MSC711x Overview

PDFRev 0Dec 12, 2005390.2 KBAN3056English
^{Application Note}
Statistical Considerations for Maximizing Channel Density on Embedded Systems

PDFRev 0Oct 6, 2005466.0 KBAN3012English
^{Application Note}
Generic Tone Generation on the StarCore^® SC140 Core

PDFRev 2Sep 1, 2005315.8 KBAN2274English
^{Application Note}
Speech Coder Filters Using the StarCore^® SC140/SC1400 Cores

PDFRev 1Apr 11, 2005347.9 KBAN2152English
^{Application Note}
Real-Time Memory Manager for StarCore^®-Based DSPs

PDFRev 2Apr 11, 2005399.8 KBAN2345EnglishAssociated File: AN2345SW
^{Application Note}
ITU-T G.729AB Implementation on the StarCore^® SC140/SC1400 Cores

PDFRev 2Mar 25, 2005274.4 KBAN2261English
^{Application Note}
Path Searcher for a WCDMA Rake Receiver

PDFRev 3Mar 15, 2005415.0 KBAN2252English
^{Application Note}
MSC711x Time-Division Multiplexing (TDM) Usage Examples

PDFRev 0Feb 15, 2005545.1 KBAN2946English
^{Application Note}
ITU-T G.729A Implementation on the StarCore^® SC140/SC1400 Cores

PDFRev 1Jan 21, 2005605.9 KBAN2151English
^{Application Note}
Implementing the Levinson-Durbin Algorithm on the SC140

PDFRev 1Jan 12, 2005452.5 KBAN2197English
^{Application Note}
ITU-T G.729 Implementation on StarCore^® SC140

PDFRev 1Dec 16, 2004738.4 KBAN2094English
^{Application Note}
Implementation of ITU-T G.711 on the StarCore^® SC140 Core

PDFRev 1Dec 16, 2004130.2 KBAN2488English
^{Application Note}
Reed Solomon Encoder/Decoder on the StarCore^® SC140 Core, With Extended Examples

PDFRev 1Dec 16, 2004788.2 KBAN2407English
^{Application Note}
ITU-T G.729I Recommendation on the StarCore SC140 Core

PDFRev 1Dec 15, 2004361.2 KBAN2397English
^{Application Note}
Optimizing a Vocoder for Operation on a StarCore^®-Based DSP

PDFRev 2Dec 15, 2004153.2 KBAN2562English
^{Application Note}
Generic Tone Detection Using Teager-Kaiser Energy Operators on the StarCore^® SC140 Core

PDFRev 1Dec 14, 20041.6 MBAN2384English
^{Application Note}
Scrambling Code Generation for WCDMA

PDFRev 1Nov 25, 2004421.1 KBAN2254English
^{Application Note}
An 8 x 8 Discrete Cosine Transform on the StarCore^® SC140/SC1400 Cores

PDFRev 1Nov 23, 2004336.5 KBAN2124English
^{Application Note}
ITU-T V.42bis Data Dictionary Search on the StarCore^® SC140

PDFRev 1Nov 23, 2004148.3 KBAN2270English
^{Application Note}
Channel Estimation for a WCDMA Rake Receiver

PDFRev 2Nov 23, 2004352.3 KBAN2253English
^{Application Note}
ITU-T G.729B Implementation on the StarCore^® SC140/SC1400 Cores

PDFRev 1Nov 22, 2004285.6 KBAN2278English
^{Application Note}
3GPP-AMR-NB With ETSI-EFR Implementation on the StarCore^® SC140/SC1400 Cores

PDFRev 1Nov 22, 2004413.4 KBAN2280English
^{Application Note}
JPEG^®2000 Wavelet Transform on StarCore^®-Based DSPs

PDFRev 2Nov 22, 2004702.6 KBAN2089English
^{Application Note}
Stack Measurement on StarCore^®-Based DSPs

PDFRev 2Nov 21, 2004210.8 KBAN2267English
^{Application Note}
Introduction to the StarCore^® SC140 Tools: An Approach in Nine Exercises

PDFRev 1Nov 16, 2004411.2 KBAN2009EnglishAssociated File: AN2009SW
^{Application Note}
Speed and Code-Size Trade-off with the StarCore^® SC140

PDFRev 1Nov 16, 2004204.4 KBAN1838English
^{Application Note}
Developing Optimized Code for Both Size and Speed on the StarCore^® SC140 Core

PDFRev 2Nov 16, 2004483.6 KBAN2266English
^{Application Note}
Network Echo Cancellers and NXP^® Solutions Using the StarCore^® SC140 Core

PDFRev 1Nov 11, 2004792.0 KBAN2598English
^{Application Note}
Optimizing the Instruction Cache of StarCore^®-Based Processors

PDFRev 1Nov 11, 2004693.6 KBAN2714English
^{Application Note}
Porting Code from the DSP56300 Family of Products to the SC140/SC1400 Core

PDFRev 1Nov 11, 2004427.7 KBAN2715English
^{Application Note}
Getting Started With the MSC711x Application Development System (MSC711xADS)

PDFRev 1Nov 10, 2004134.4 KBAN2780English
^{Application Note}
Glueless Packet Transport from PowerQUICC^® Network Processors to MSC711x DSP Devices

PDFRev 0Nov 10, 2004121.5 KBAN2888English
^{Application Note}
Noise Reduction on StarCore^®-Based DSP Devices

PDFRev 1Sep 30, 2004753.4 KBAN2824English
^{Application Note}
Packet Telephony Remote Diagnostics on the StarCore SC140 Core

PDFRev 1Sep 24, 2004381.8 KBAN2832English
^{Application Note}
KASUMI Block Cipher on the StarCore^® SC140 Core

PDFRev 0Sep 13, 2004365.4 KBAN2837English
^{Application Note}
Packet Telephony Automatic Level Control on the StarCore^® SC140 Core

PDFRev 1Sep 10, 2004266.0 KBAN2834English
^{Application Note}
Tone Event Detection in Packet Telephony Using the StarCore^® SC140 Core

PDFRev 2Jul 27, 2004340.7 KBAN2775English
^{Application Note}
A Comparison of StarCore^® DSP Ethernet Controllers

PDFRev 1Jul 22, 2004348.5 KBAN2781English
^{Application Note}
StarCore^® SC140 Application Development Tutorial

PDFRev 0Mar 21, 20031.7 MBAN2441English
^{Application Note}
JPEG^®2000 Arithmetic Encoding on StarCore^® SC140

PDFRev 1Oct 24, 2001460.3 KBAN2121English
^{User Guide}
MSC711x Packet Telephony Farm Card (SPT711xPFCE)

PDFRev 1Apr 20, 20061.7 MBPTKIT711XUGEnglish
^{User Guide}
StarCore Digital Signal Processor (DSP) Application Development Framework (ADF)

PDFRev 1Dec 22, 20051.1 MBSCDSPADFUGEnglish
Sign in required
^{Application Note Software}
Software to Accompany Application Note AN2345/D

ZIPRev 2Apr 11, 2005830.4 KBAN2345SWEnglish
Sign in required
^{Application Note Software}
Software to Accompany Application Note AN2009/D.

ZIPRev 2Nov 16, 2004263.5 KBAN2009SWEnglish
Sign in required
^{Product Brief}
MSC7119 Product Brief

PDFRev 1Sep 17, 2005160.4 KBMSC7119PBEnglish
