728-768 MHz, 25 W Avg., 28 V Single W-CDMA RF LDMOS Wideband Integrated Power Amplifiers

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

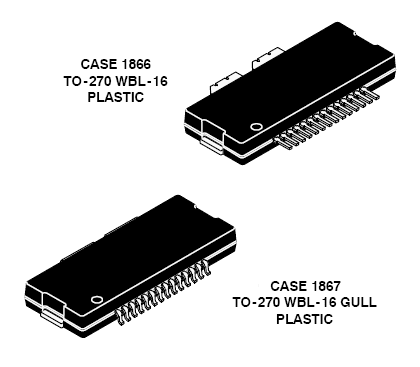

The MDE6IC7120NR1 and MDE6IC7120GNR1 wideband integrated circuits are designed with on-chip matching that make them usable from 728 to 768 MHz. This multi-stage structure is rated for 26 to 32 Volt operation and covers all typical cellular base station modulation formats.
