- No Longer Manufactured
- WLAN8101H
2.4 GHz Wi-Fi 6 Front-End Module
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.
The WLAN8101H is a 2.4 GHz 2 x 2 MIMO RFFE for

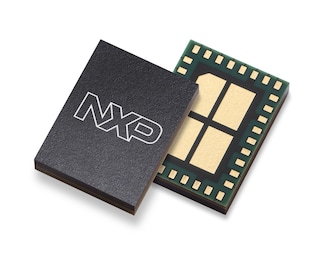

Wi-Fi 6 applications in a 3 mm x 4 mm package.
The WLAN8101H includes two monolithic front-end ICs. Each front-end IC includes a transmit amplifier with directional coupler, a low noise receive amplifier and a transmit/receive switch with a Bluetooth channel. The power amplifier supports 3 different TX gain modes to improve power efficiency. The directional coupler improves transmit-power sensing accuracy.
WLAN8101H also includes coexistence filters for both transmit and receive channels.
The device is matched to 50 Ω and integrates harmonic and out of band filtering which minimizes the layout area in the application.
Product Details
Features
- Small-size 2 x 2 MIMO RFFE for Wi-Fi 6 applications
- Integrated power amplifiers with multiple operation modes for dynamic power efficiency and linearity control
- Full high band 2402 MHz to 2482 MHz
- 3 TX operation modes enabling flexibility for power efficiency adaptation
- Integrated low noise amplifiers supporting high gain and bypass modes
- Integrated SPDT switches for single antenna RX and TX operation
- Integrated directional couplers for precise transmit power control
- Requires no external matching components, DC free RF ports, except for the ANT, and BT ports (on-chip ESD coil)
- Integrated RF decoupling capacitors for all VCC and control pins
- Low profile, small-size 3 mm x 4 mm package
- Integrated ESD protection on all pins
- Human Body Model (HBM) according to ANSI/ESDA/JEDEC standard JS-001 exceeds 2 kV
- Charged Device Model (CDM) according to ANSI/ESDA/JEDEC standard JS-002 exceeds 500 V except for ANT pins the value is 400 V
- RoHS compliant
- Wi-Fi 6 support
- Smartphones, tablets, netbooks, and other portable computing devices
- Module applications for embedded systems
