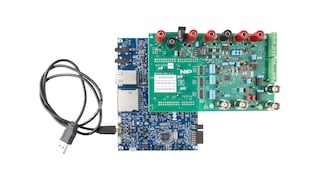

Software Configurable Input and Output Analog Front End Family
The NAFEx3352 is a Software Configurable Analog Input and Output Analog Front End Family (AIO-AFE). It features one Analog input/output channel and two universal input channels. The AIO-AFE family integrates a precision 14/16/18-bit digital-to-analog converter (DAC), a 16/24-bit analog-to-digital converter (ADC), a low-drift voltage reference, low-offset drift buffers and high-voltage, high-precision amplifiers with 65 V input-protection circuit for EMC and miswiring scenarios.
The device has built-in diagnostic and protection circuits for both the output and input channels, enabling anomaly detection, predictive maintenance, and functional safety. The AIO-AFE is ideal for programmable logic controllers (PLC), Process Control, I/O modules, and data loggers applications.
The NAFE33352 is the low power version and the NAFE93352 is the high speed version.
Product Details
Features
General Features
- ±7 V to ±28 V supply voltage range
- -40 °C to 125 °C temperature range

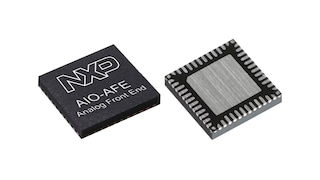

- 6 mm x 6 mm small TQFN-40 package
Channels Configuration
- One software configurable Analog Input and Output
- Two universal inputs
- Ranges: ±12.5 V, ±25 mA, 1 mOhm-1 MOhm I/O
- Factory calibration or user calibration options
Resolution
- DAC: 14 / 16 / 18-bit options
- ADC: 16 / 24-bit options
Datarate
- Low power NAFE33352:
- DAC: 0 to 100 ksps
- ADC: 7.5 sps to 288 ksps
- High Speed NAFE93352:
- DAC: 0 to 200 ksps
- ADC: 15 to 576 ksps
Protections
- ±36 V protected I/O (external transient voltage suppressor required for output)
- Short circuit protection on both input and output
Accuracy
- ±0.01 % accuracy at room
- ±0.08 % accuracy overtemperature (after room calibration)
Product Programs
Product Longevity Program
This product is included in NXP’s product longevity program, with assured supply for a minimum of 10 years after launch
Buy/Parametrics
2 results
Include 0 NRND
Part | Order | CAD Model | Status | Budgetary Price excluding tax | Number of Input Channels | TUE IN [%FS] | INL IN [µV] | Max Differential IN/OUT Range [±V] | Input | PGA GAIN | ADC Architecture | ADC Resolution | SPS IN [max] | Excitation Source V/I | Factory Calibration | Interface and Input Control | Power Consumption [mW] | Operating Temperature (Min-Max) (℃) | Additional Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | 1K @ US$6.85 | 2 | 0.01 | 50 | 25 | Differential, Pseudo Differential, Single Ended | 1 to 16 | Sigma Delta | 24 | 288000 | Yes | Y | SPI | 126 | -40 to 125 | Diagnostics, Internal Temperature sensor, VREF | |||
Active | 1K @ US$7.54 | 2 | 0.01 | 50 | 25 | Differential, Pseudo Differential, Single Ended | 1 to 16 | Sigma Delta | 24 | 576000 | Yes | Y | SPI | 126 | -40 to 125 | Diagnostics, Internal Temperature sensor, VREF |
