32-bit MCU for Automotive, Consumer and Industrial Applications

MPC5200B Not Recommended for New Designs
  • This page contains information on a product that is not recommended for new designs.

The highly integrated, cost-effective NXP® MPC5200B MCU serves the processing-intensive network media gateway, network access storage, set-top box, audio jukebox automotive, Internet access, industrial automation, image detection/analysis, and electronic/medical instrumentation markets.

  • Enables high-speed data transfers and fast processing
  • Operates at only one watt
  • Incorporates a hardware-based memory management unit (MMU) for advanced memory protection schemes, fast task switching, and broad RTOS support
  • Supports automotive, networking, media, consumer, and industrial control applications
  • Provides users with a complete and flexible set of solutions

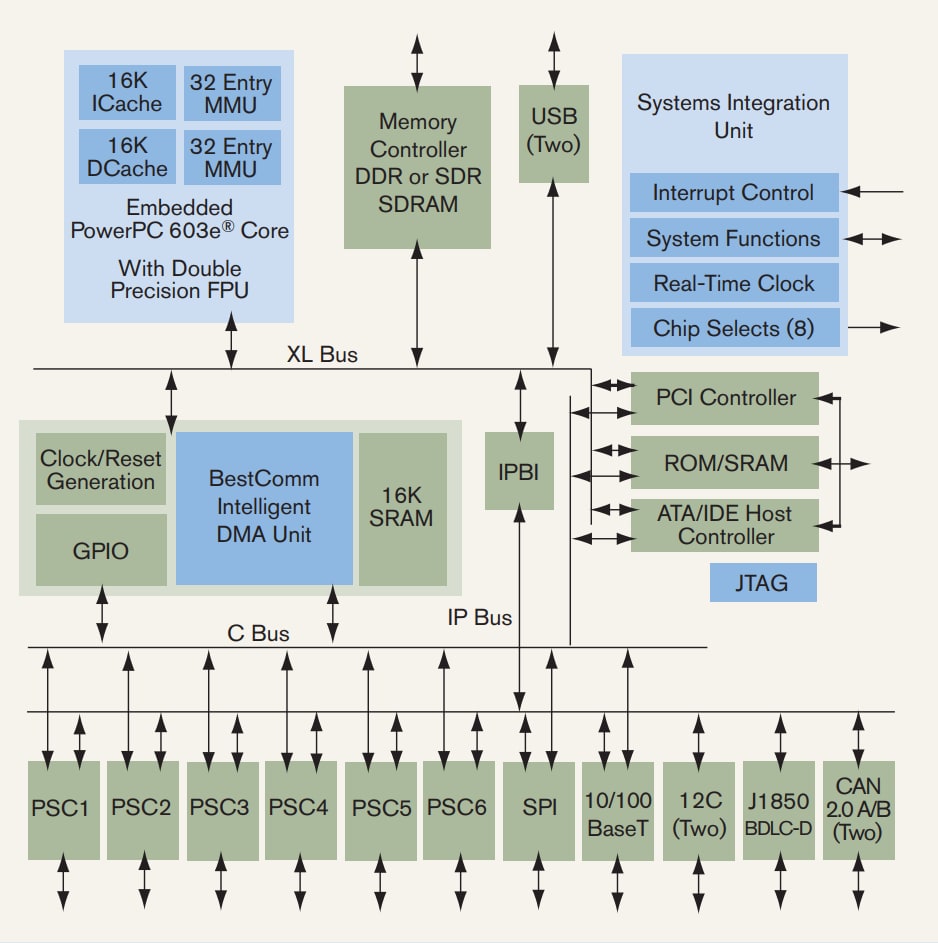

Block Diagram

MPC5200B Block Diagram

MPC5200B Block Diagram
Get diagram PDF

Features

  • MPC603e series processor core built on Power Architecture
  • 0-400 MHz operation at -40oC to +85oC temperature range
  • Double Precision Floating Point Unit (FPU)
  • Instruction and Data Memory Management Unit (MMU)
  • 16K Instruction and 16K Data Caches
  • BestComm Intelligent DMA I/O Controller
  • SDR and 133 MHz Double Data Rate (DDR) memory interface (266 MHz effective)
  • Local Plus interface for flash memory, etc.
  • 10/100 Ethernet MAC
  • Peripheral Control Interface (PCI) Version 2.2
  • ATA/IDE Interface
  • USB 1.1 Host (two each. USB 2.0 compatible)
  • Programmable Serial Controllers (six)
  • Serial Peripheral Interface (SPI)
  • I²C (two)
  • I2S (up to three)
  • CAN 2.0 A/B (two)
  • J1850 BDLC-D
  • GPIO (up to 56)
  • 8 Timers
  • 1.5V core, 3.3V external (and 2.5V for DDR memory)
  • 272 Pin Plastic Pin Ball Grid Array (PBGA) Package
  • AEC-Q100, QS9000/TS-16949 automotive grade available
  • Lead (Pb) and lead-free packages
  • This product is included in NXP’s product longevity program, with assured supply for a minimum of 15 years after launch

Buy/Parametrics

3 results

Exclude 3 NRND

Part

Show description

Order

CAD Model

Status

Package Type

Package Termination Count

Budgetary Price excluding tax

MPC5200CVR400B
Data Sheet

Not Recommended for New Designs

BGA272

272

10K @ US$33.39 - 10K @ US$36.10
MPC5200VR400B
Data Sheet

Not Recommended for New Designs

BGA272

272

10K @ US$33.20
SPC5200CBV400B
Data Sheet

Replacement part(s): MPC5200CVR400B

End of Life

BGA272

272

10K @ US$33.40 - 10K @ US$42.45
