FS23 Safety SBC Evaluation Board with Soldered BUCK Variant
Buy Options
KITFS23BUCKEVM
Active
12NC: 935430444598
Details
Order
Pending Stock
Order from distributorsOperating Features
No information available
Environmental
| Part/12NC | PbFree | EU RoHS | Halogen Free | REACH SVHC | Weight (mg) |
|---|---|---|---|---|---|
KITFS23BUCKEVM(935430444598) | Not Available | Compliant | Not Available | Compliant | 453592.0 |
Quality
| Part/12NC | Safe Assure Functional Safety |
|---|---|
KITFS23BUCKEVM (935430444598) | No |
Shipping
| Part/12NC | Harmonized Tariff (US)Disclaimer | Export Control Classification Number (US) | CCATS |
|---|---|---|---|
KITFS23BUCKEVM (935430444598) | 847150 | 5A992C | G166046 |
More about KITFS23BUCKEVM

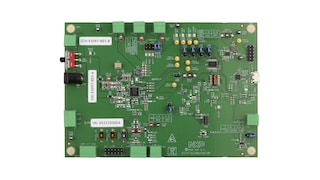

The KITFS23BUCKEVM provides easy customer configuration of the FS2320 subfamily and flexibility to play with all the features of the device and make measurements on the main part of the application. All regulators, high-side drivers and CAN and LIN buses are accessible through connectors. The on-board S32K144, combined with the FS23 NXP GUI software allows for full configuration and control of the FS23 SBC, targeting 12 V automotive applications.
All FS2320 sub-family can be evaluated with the soldered superset part. As many configurations as needed can be tested in emulation mode, however the FS232x part soldered on the board can only be permanently fused once, without any extra tools.
