SOT618-21(D): HVQFN40

Overview

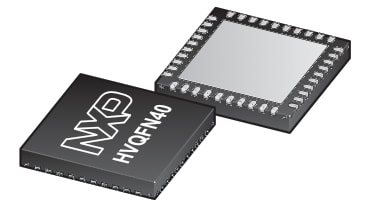

HVQFN40, plastic thermal enhanced very thin quad flat wettable flanks package; no leads; 40 terminals, 0.5 mm pitch, 6 mm x 6 mm x 0.85 mm body

Package Version	Package Name	Mount	Terminal Position	Package Style	Dimensions	Termination Count	Material
SOT618-21(D)	HVQFN40	surface mount	quad	HVQFN	6 x 6 x 0.85	40	plastic

Manufacture Code	Reference Codes	Issue Date
98ASA01939D		2024-04-11

Products

Part	Description	Quick access
PCA9958HN	24-Channel SPI Serial Bus 63 mA/ 5.5 V Constant-Current LED Driver	View parametrics
PCA9958HN/Q900	24-Channel SPI Serial Bus 63 mA/ 5.5 V Constant-Current LED Driver, AEC-Q100 compliant	View parametrics
