1. Out of the Box

The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state-of-the-art systems.

This page will guide you through learning about how to set up the KITFS85AEEVM board.

1.1 Kit Contents/Packing List

Working with the KITFS85AEEVM requires the kit contents, additional hardware and a Windows PC workstation with installed software.

Mark as complete:1.1 Kit Contents/Packing List

1.2 Kit Contents

Assembled and tested KITFS85AEEVM and preprogrammed FRDM-KL25Z microcontroller board in an anti-static bag
3.0 ft. USB-STD A to USB-B-mini cable
Two connectors, terminal block plug, 2 pos., str. 3.81 mm
Three connectors, terminal block plug, 3 pos., str. 3.81 mm
Jumpers mounted on board

Mark as complete:1.2 Kit Contents

1.3 Additional Hardware

In addition to the kit contents, the following hardware is necessary or beneficial when working with this kit.

Power supply with a range of 8.0 V to 60 V and a current limit set initially to 1.0 A (maximum current consumption can be up to 10.0 A)

Mark as complete:1.3 Additional Hardware

1.4 Windows PC workstation

This evaluation board requires a Windows PC workstation. Meeting these minimum specifications should produce great results when working with this evaluation board.

USB-enabled computer with Windows 7 or Windows 10

Mark as complete:1.4 Windows PC workstation

1.5 Software

Installing software is necessary to work with this evaluation board. All listed software is available on the evaluation board's information page under the Tools and Software tab.

To generate Device OTP programming and emulation you will need the following:

Refer to UM11193: KITFS85AEEVM Evaluation Board - User Guide for full evaluation board functionality.

Mark as complete:1.5 Software

NextPlug It In

2. Plug It In

The KITFS85AEEVM provides flexibility to play with all the features of the device and make measurements on the main part of the application. The KL25Z MCU installed on the board, combined with the FlexGUI software allows access to the registers in reading and writing mode. All regulators are accessible through connectors. Nonuser signals, like DC/ DC switcher node, are mapped on test points. Digital signals (SPI, I²C, RSTb, etc.) are accessible through connectors. Wake1 pin has a switch to control (Ignition) them. A VBAT switch is available to power On or Off the device.

The main purpose of this kit is the evaluation of the device in the truck environment which need a nominal voltage of 24 V and to sustain up to 60 V at Vbat. The KITFS85AEEVM is also able to work in emulation mode and to burn the device when needed. Devices can be programmed three times.

2.1 Board Features

KITFS85AEEVM evaluation board features:

VBAT power supply connectors (Jack and Phoenix)
VPRE output capability up to 10.0 A (external MOSFET)
VBUCK1/2 in Standalone (default) or Multiphase mode
VBUCK3 up to 3.6 A peak
VBOOST 5.0 V or 5.74 V, up to 400 mA
LDO1 and LDO2, from 1.1 V to 5.0 V, up to 400 mA
Ignition key switch
FS0B external safety pin
Embedded USB connection for easy connection to software GUI (access to SPI/I²C bus, IOs, RSTB, FS0B, INTB, Debug, MUX_OUT, regulators)
LEDs that indicate signal or regulator status
Support OTP fuse capabilities
USB connection for register access, OTP emulation and programming

Device	Description	Features
FS8500	Safety System Basis Chip for S32 Microcontrollers	60 V maximum input voltage for automotive and truck markets Multiple SMPS and LDO to supply S32 microcontroller and more Standby OFF mode with very low sleep current (10 µA) 32 bits SPI and IDC interfaces with CRC FIT for ASIL D with Independent Safety Monitoring Unit
FS8400	Safety System Basis Chip for S32 Microcontrollers	60 V DC maximum input voltage Multiple SMPS and LDO to supply S32 microcontroller and more Standby OFF mode with very low sleep current (10 µA) 32 bits SPI and IDC interfaces with CRC FIT for ASIL B with Independent Safety Monitoring Unit

Mark as complete:2.1 Board Features

2.2 Board Description

KITFS85AEEVM provides easy customer development of the FS84/FS85 family devices. It's targeting 24 V Truck applications. This KIT can be connected to the FlexGUI software which allows the customer to modify the registers, develop an OTP Configuration (one Time Programming) configuration and burn it when ready. The FS85 on the board has not been programmed, offering the customer the flexibility to configure the OTP for his application needs. The OTP can be burned 3 times, which gives good flexibility. The board contain a superset device (MC33FS8530AE0S), allowing tests on all the FS84/FS85 derivatives.

Mark as complete:2.2 Board Description

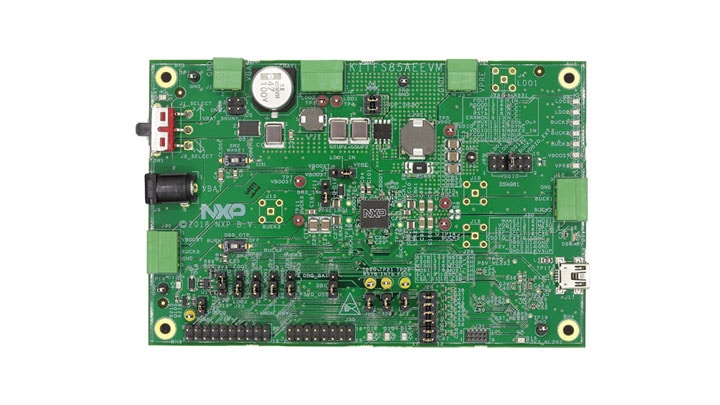

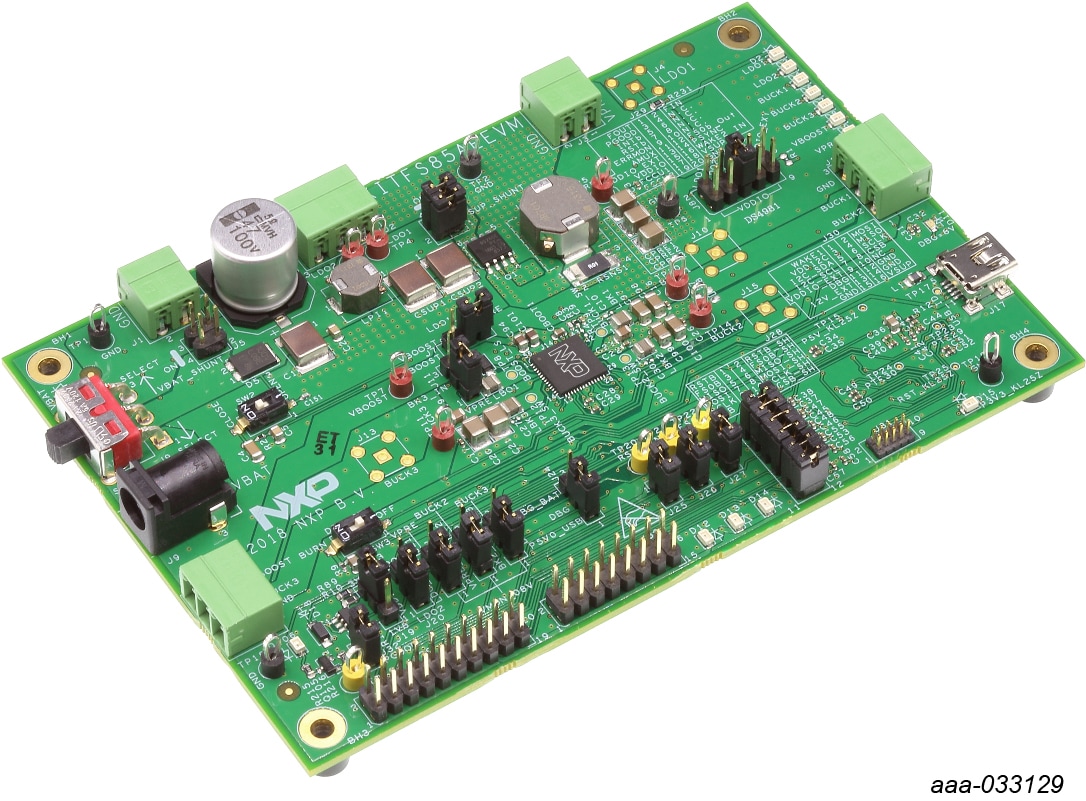

2.3 Board Image

Mark as complete:2.3 Board Image

PreviousOut of the Box

NextConfigure Hardware

3. Configure Hardware

This section summarizes the overall setup. Detail description is provided in the user guide.

Suggested equipment’s needed for test:

8.0 V to 40 V power supply
Computer
Mini USB type A Cable

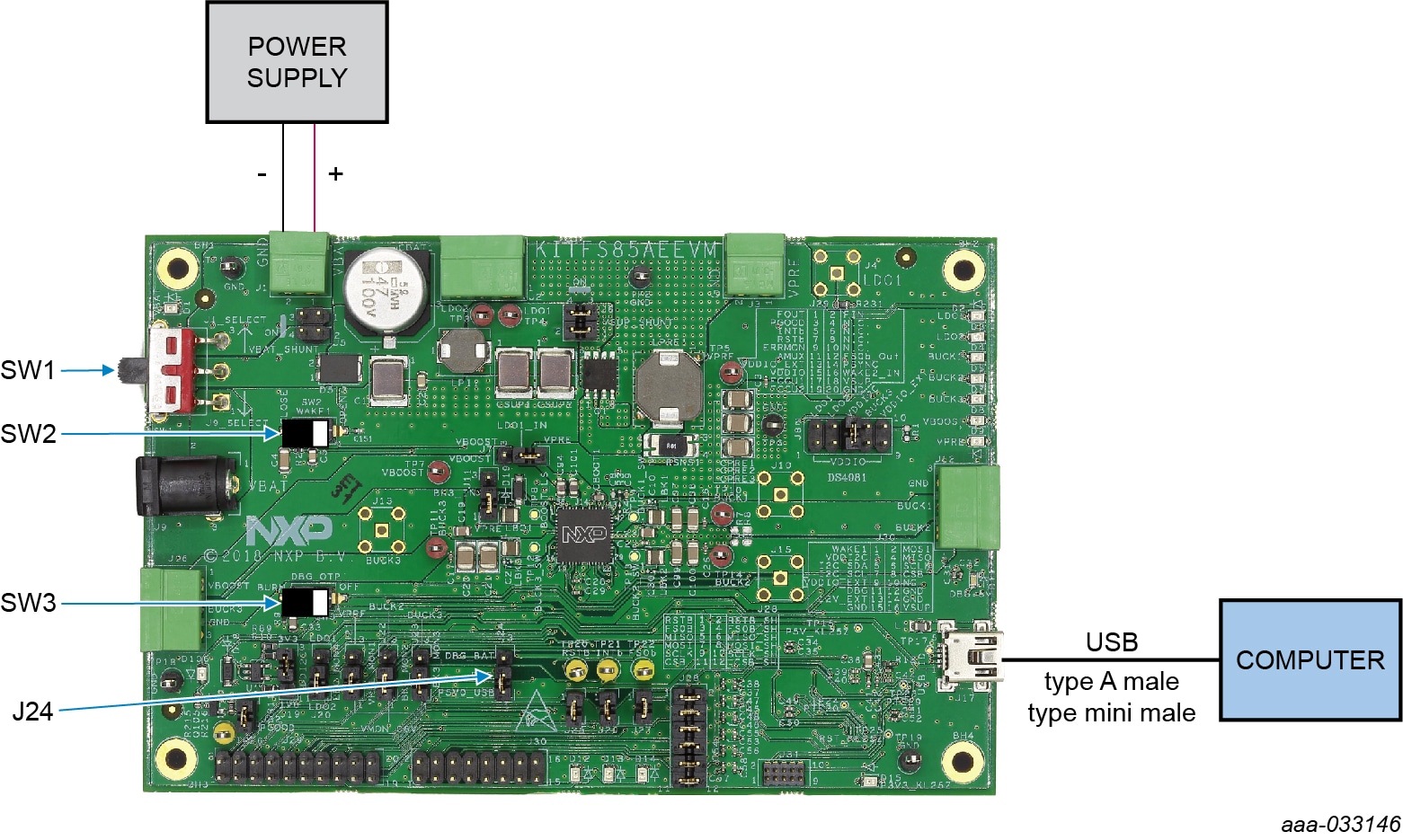

3.1 Configuration Image

Mark as complete:3.1 Configuration Image

3.2 Device Considerations

It is recommended to learn about OTP before operating with the device. The device has a high level of flexibility due to parameter configuration available in the OTP. This impacts the functionality of the device. It is key to understand how OTP parameters can be programmed, the interaction with mirror registers and the FS85 SoC. The OTP related operations can be performed either in Emulation mode, where the product uses a given configuration as long as power supply is not switched Off or from OTP fuse content that is valid even after a power down/power up sequence.

Note: The board is populated with a MC33FS8530A0ES. In addition to OTP programming, the customer can test all features. The OTP can be burn 3 times. To fuse the OTP first time, see user guide section on "OTP programming fuse mode steps" and use the FS85 OTP Configuration tool spreadsheet.

Mark as complete:3.2 Device Considerations

3.3 Setting up the Board

To configure the hardware and workstation as illustrated in Figure 18, complete the following procedure:

Install jumpers for the configuration

Table Jumper configuration

Jumper	Configuration
`J24`	connect 1-2 (connect 5.0 V on DBG pin from the USB)

Configure switches for the configuration

Table Switch configuration

Switch	Configuration
`SW1`	middle position (VBAT off)
`SW2`	open (WAKE1)
`SW3`	open (OTP programming off)

Connect the Windows PC USB port to the KITFS85AEEVM development board using the provided USB 2.0 cable

Set the DC power supply to 12 V and current limit to 1.0 A. With the power turned off, attach the DC power supply positive and negative output to KITFS85AEEVM VBAT Phoenix connector J1

Turn on the power supply
Close SW2

Note: At this step, the product is in debug mode and all regulators are turned off. The user can then power up with OTP configuration or configure the mirror registers before power up. Power up is effective as soon as the J24 jumper is removed. The user can load the mirror registers to work in OTP emulation. See Section 7.2.3 "Script editor" of the UM11193 user guide.

Mark as complete:3.3 Setting up the Board

PreviousPlug It In

NextInstall Software

Install Software

4.1 Preparing Graphical User Interface Operating Environment

Download and run latest FlexGUI SW for the KITFS85AEEVM.

Mark as complete:4.1 Preparing Graphical User Interface Operating Environment

4.2 Installing FlexGUI Software Package

FlexGUI is based on Java JRE. Install Java JRE, and then unzip the FlexGUI software package on your computer.

The FlexGUI software does not require any installation. Unzip the folder contents and launch the .bat file.

Download Java JRE (Java SE Runtime Environment) available at Java SE Development Kit 8u411 (8u162 or newer)
Accept the license agreement
Select either x64 or x86 installer for your current platform (typically Windows x64 or Windows x86)
Initiate file download and wait for completion
Run the installer
Restart the computer after successful download
On Windows 10, it is not necessary to install virtual com port as it uses generic COM port driver
On Windows 7, a virtual COM port installation is required, please refer to the user manual

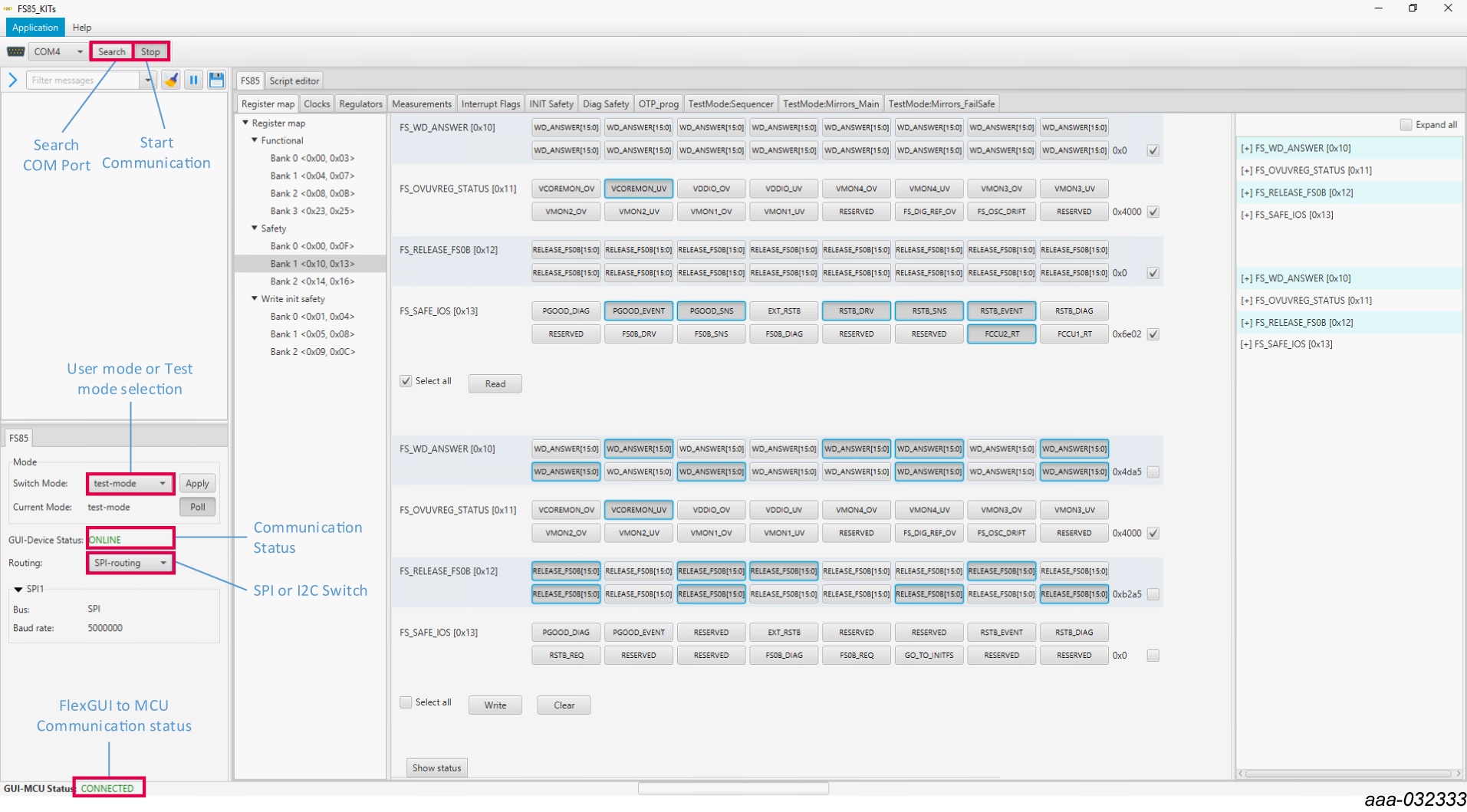

The image below shows the mode selection. At first launch, the FlexGUI starts in User mode. The user can then decide to switch to Test mode using the Switch mode drop-down list.

Mark as complete:4.2 Installing FlexGUI Software Package

PreviousConfigure Hardware

NextDesign Resources

Design Resources

Board Information

User Manual

Refer to UM11193: KITFS85AEEVM Evaluation Board - User Guide.

Additional Resources

Product Summary

Tool Summary

The overview tab provides an overview of the device, product features, a description of the kit contents, a list of (and links to) supported devices, list of (and links to) any related products and a Get Started section.

On the Overview tab, locate the Jump To navigation feature on the left side of the window
Select the Get Started link, review each entry and download an entry by clicking on the title
After reviewing the Overview tab, visit the other product-related tabs for additional information:
- Documentation: download current documentation
- Software and Tools: download current hardware and software tools / Drivers
- Buy/Parametrics: purchase the product and view the product parametric
After downloading files, review each file, including the user guide which includes setup instructions
- Build a package: the bill of materials (BOM) and supporting schematics are also available for download in the Get Started section of the Overview tab
