FS84 QFN48EP Safety SBC Programming Board

KITFS84SKTEVM Active

Roll over image to zoom in

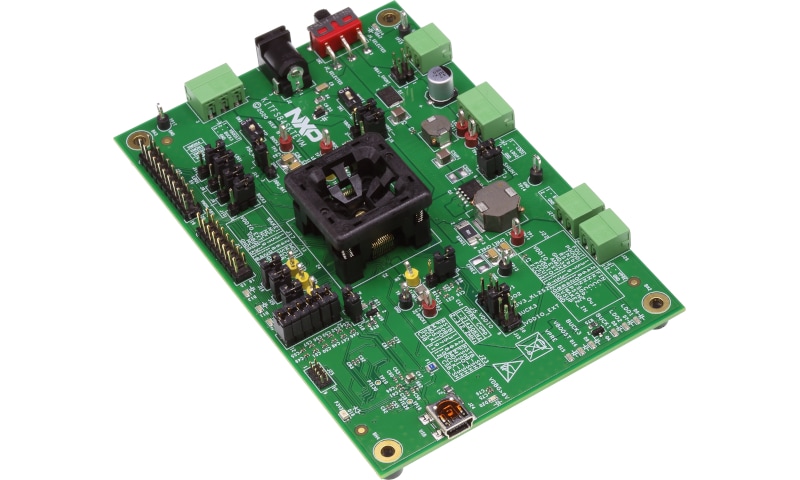

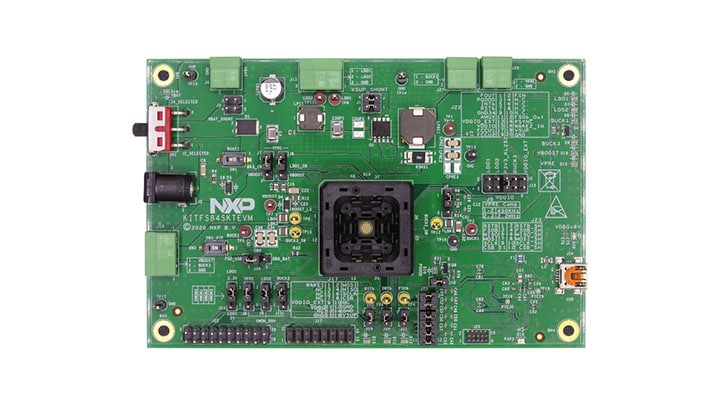

KITFS84SKTEVM provides easy customer configuration of the devices thanks to a QFN48 socket. Devices can be easily placed on socket, fused and then soldered on a customer prototype board. It's targeting 12 V automotive application.

This KIT can be connected to the FlexGUI software, which allows the customer to modify the registers and develop a one time programming (OTP) configuration and burn it when ready. In addition to OTP programming, the customer can test all features (with some limitation due to the socket). The OTP can be burn 3 times.

Supported Devices

Power Management

System Basis Chips

  • FS84: Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL B

Features

General

  • VBAT power supply connectors (Jack and Phoenix)
  • VPRE output 3.3 V, 4.1 V and 5 V
  • VBUCK1
  • VBUCK3
  • VBOOST 5.0 V or 5.74 V, up to 400 mA
  • LDO1 and LDO2, from 1.1 V to 5 V, up to 400 mA
  • Ignition key switch
  • FS0B external safety pin
  • Embedded USB connection for easy connection to software GUI (access to SPI bus, IOs, RSTB, FS0B, INTB, Debug, MUX_OUT, regulators)
  • LEDs indicating signal or regulator status
  • Supporting OTP fuse capabilities
  • USB connection for register access, OTP emulation and fuse.
    Note that due to the socket, all output current should be limited to 1 A maximum

Buy Options

KITFS84SKTEVM-Image

Click to expand

  • KITFS84SKTEVM
    Active

  • FS84 QFN48EP Safety SBC Programming Board.

  • Kit Contains

    • KITFS84SKTEVM Evaluation Board

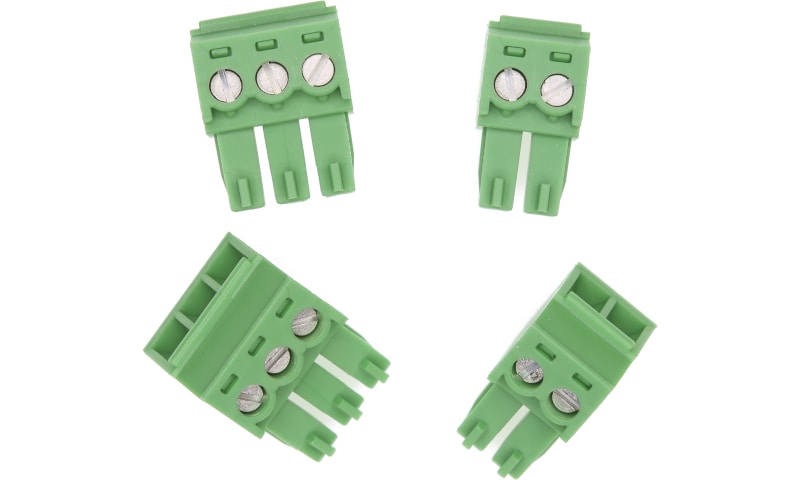

    • Power Supply Mating Connectors
    • USB Mini Cable Type A Male / Type B Male
  • $238.45 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
