MM9Z1_638 - 4-Cell Lithium Battery

RD9Z1-638-4Li

Roll over image to zoom in

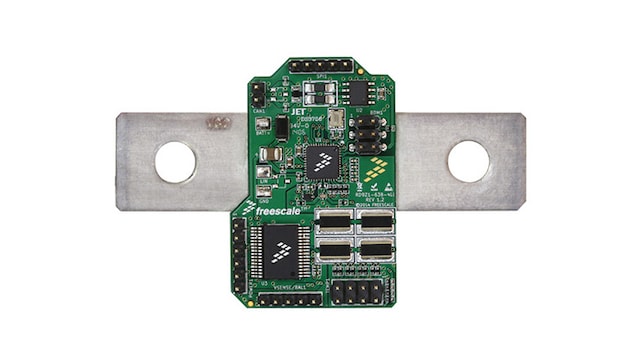

The NXP ® RD9Z1-638-4Li reference design is a battery management system (BMS) for 4-Cell Li-Ion battery applications and features the NXP MM9Z1_638 Battery Sensor Module. It demonstrates the product capabilities where high EMC performance is required. It also features an 8-pin standalone CAN transceiver to interface with other modules.

Block Diagram

Cell Lithium Battery

MM9Z1_638 4-Cell Lithium Battery Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

S12 MagniV Mixed-Signal MCUs

  • S12ZVC: S12ZVC Mixed-Signal MCU for Automotive and Industrial CAN Applications

Power Management

Configurable Switches

  • MC33879: Configurable Octal Serial Switch

Battery Sensors

Interfaces

3.3 V / 5 V IO CAN Transceivers

  • TJA1044: High-Speed CAN Transceiver with Standby Mode - Mantis Family

Features

Functionality

  • Embedded 16-bit S12Z MCU
  • Embedded power management
  • Four voltage sensing inputs (VSENSE3 to VSENSE0)
  • Internal temperature sensing
  • Battery current sensing via mounted shunt (ISENSE)

Interfaces

  • High-Speed CAN interface
  • LIN 2.2/2.1/2.0 interface

Debugging

  • BDM interface for programming and debugging

Buy Options

RD9Z1-638-4LI-Image

Click to expand

  • RD9Z1-638-4LI

  • Reference design - Xtrinsic MM9Z1_638, 4 Cell Lithium-Ion application with CAN and LIN interface.

  • Kit contains:

    • Assembled and tested 100 µΩ shunt board in an anti-static bag
    • Warranty card
  • $311.88 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors

Documentation

Quick reference to our documentation types.

Filters

1 documents

Design Files

Quick reference to our design files types.
Filters

1 design file

Software

Quick reference to our software types.

Filters

2 software files

  • BSPs and Device Drivers

    LIN2.x and SAE J2602 Stack

    FLEXERARev v4.6.3Jan 30, 2020 00:00:001 KBFSL_LIN_2.X_DRIVER
    Download
  • Connectivity Software

    4-cell lithium battery management example software

    ZIPRev 1.0.3Jun 3, 2014 00:00:002.2 MBRD9Z1-638-4LI_APPSP
    Sign in required
    Download
