A Touch Sensing Demo Based on KE17Z

KE17Z-TOUCH-SENSING

Roll over image to zoom in

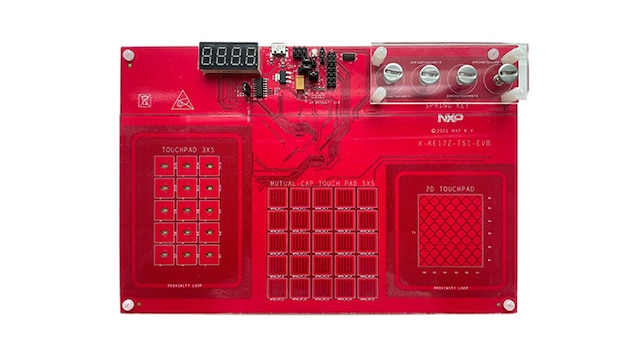

X-KE17Z-TSI-EVB supports high EMC performance and comprehensive touch patterns, including mutual-cap touch keys, self-cap touch spring keys and pads, digital touch slide, proximity loop and shield electrode.

The chip of X-KE17Z-TSI-EVB has dual TSI and supports up to 50 touch channels, all channels are demonstrated on the board.

X-KE17Z-TSI-EVB is a demo that is not for sale on nxp.com. Schematics and design files are provided as reference in the documentation section. Please contact NXP sales representative if you would like a demonstration or need more info.

Product Details

Block Diagram

KE17Z-TOUCH-SENSING Block Diagram

Touch Sensing Block Diagram
Get diagram PDF

Buy Options

FRDM-KE17Z-Image

Click to expand

  • FRDM-KE17Z

  • Freedom Development Platform for 72MHz KE17Z/KE13Z/KE12Z MCUs.

    • FRDM-KE17Z
    • Quick start guide
    • Supporting cable
  • $44.85USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 4
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
