NXP Accelerometer Tower System Plug-In

TWRPI-MMA845XQ
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

Archived content is no longer updated and is made available for historical reference only.

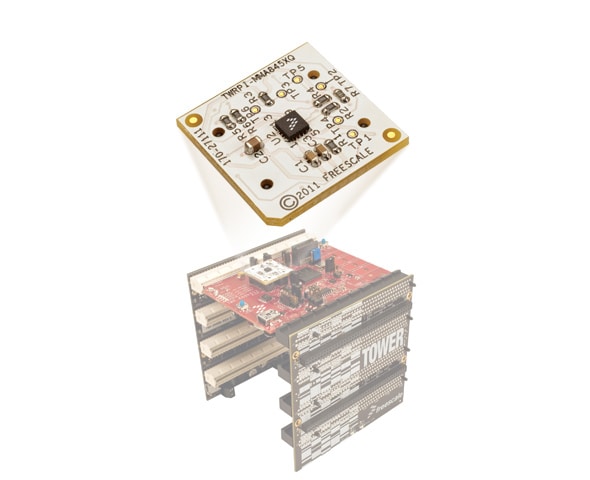

Offered as an attachment for various Tower® System modules, the TWRPI-MMA845XQ accelerometer accelerates your design time. It features the NXP® MMA8451Q 3-axis accelerometer with 14 bits of resolution and brings freefall/motion, pulse, and jolt detection to life in your designs. Simply place the TWRPI-MMA845XQ NXP Accelerometer Plug-In onto a parent controller or peripheral module in the Tower System, and start prototyping quickly and easily.

It is a great addition to the Kinetis® KwikStik development tool or any Tower System module containing TWRPI sockets.

Product Details

Supported Devices

Sensors

Accelerometers

  • MMA8451Q: ±2g/±4g/±8g, Low g, 14-bit Digital Accelerometer

Features

Connectivity

  • Compatible with the Tower® System modules that use swappable (Tower) Plug-ins (TWRPIs)

Sensors

  • MMA8451Q I2C 3-axis accelerometer
  • Smart low-power, three-axis, capacitive micromachined accelerometer with 14-bits of resolution
  • Freefall/Motion, Pulse, and Jolt Detection
  • Programmable interrupts
N true 0 TSPTWRPI-MMA845XQen 4 Application Note Application Note t789 4 en_US en_US en Application Note Application Note 4 1 MMA8451Q,MMA8451QT,MMA8452Q,MMA8452QT,MMA8453Q,MMA8453QT 1 English AN4076: The MMA8451Q has a embedded features which include eight different sample rates, 32 different cutoff frequencies for the high-pass filter, Three dynamic ranges and four oversampling modes. It also has a 32 sample FIFO for collecting and storing data, which is the most efficient way to access the data for minimizing the I2C transactions. 1283551399412716407284 TSP 503.5 KB None None documents None 1283551399412716407284 /docs/en/application-note/AN4076.pdf 503509 /docs/en/application-note/AN4076.pdf AN4076 documents N N 2016-10-31 AN4076, Data Manipulation and Basic Settings of the MMA8451, 2, 3Q - Application Notes /docs/en/application-note/AN4076.pdf /docs/en/application-note/AN4076.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Feb 7, 2012 645036621402383989 Application Note Y N AN4076, Data Manipulation and Basic Settings of the MMA8451, 2, 3Q - Application Notes 2 MMA8451Q,MMA8451QT,MMA8452Q,MMA8452QT,MMA8453Q,MMA8453QT 2 English AN4068: This application note targets the portrait/landscape orientation detection feature which has become standard in many handheld electronic devices. Additionally, this application note aims to explain uses as well as highlight some of the challenges of designing an embedded algorithm into the sensor. 1283549938075727371904 TSP 284.6 KB None None documents None 1283549938075727371904 /docs/en/application-note/AN4068.pdf 284643 /docs/en/application-note/AN4068.pdf AN4068 documents N N 2016-10-31 AN4068, Embedded Orientation Detection Using the MMA8451, 2, 3Q - Application Notes /docs/en/application-note/AN4068.pdf /docs/en/application-note/AN4068.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 31, 2011 645036621402383989 Application Note Y N AN4068, Embedded Orientation Detection Using the MMA8451, 2, 3Q - Application Notes 3 MMA8451Q,MMA8451QT,MMA8452Q,MMA8452QT,MMA8453Q,MMA8453QT 1 English AN4070: The MMA8451, 2, 3Q has one (1) embedded functions for both Motion and/or Freefall along with a very flexible interrupt routing scheme. Motion is often used to simply alert the main processor that the device is currently in use. The transient function has the option of disabling the high pass filter and can behave exactly like the motion detection. 1283550205258715451261 TSP 399.8 KB None None documents None 1283550205258715451261 /docs/en/application-note/AN4070.pdf 399760 /docs/en/application-note/AN4070.pdf AN4070 documents N N 2016-10-31 AN4070, Motion and Freefall Detection Using the MMA8451, 2, 3Q - Application Notes /docs/en/application-note/AN4070.pdf /docs/en/application-note/AN4070.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 31, 2011 645036621402383989 Application Note Y N AN4070, Motion and Freefall Detection Using the MMA8451, 2, 3Q - Application Notes 4 MMA8451Q,MMA8451QT,MMA8452Q,MMA8452QT,MMA8453Q,MMA8453QT 1 English AN4071: The MMA8451, 2, 3Q has a built-in high-pass filter. In the MMA8451, 2Q the output data can go through the high-pass filter, eliminating the offset (DC) and low frequencies (well below the cutoff). Note that the MMA8453Q does not have the capability to read out data from the high-pass filter. The high-pass filter cutoff frequency can be set by the user to four different frequencies which are dependent on the Output Data Rate (ODR). 1283550204788691273588 TSP 418.4 KB None None documents None 1283550204788691273588 /docs/en/application-note/AN4071.pdf 418421 /docs/en/application-note/AN4071.pdf AN4071 documents N N 2016-10-31 AN4071, High-Pass Filtered Data and Transient Detection Using the MMA8451, 2, 3Q - Application Notes /docs/en/application-note/AN4071.pdf /docs/en/application-note/AN4071.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 31, 2011 645036621402383989 Application Note Y N AN4071, High-Pass Filtered Data and Transient Detection Using the MMA8451, 2, 3Q - Application Notes true 0 TWRPI-MMA845XQ downloads en true 0 Y TSP Application Note 4 /docs/en/application-note/AN4076.pdf 2016-10-31 1283551399412716407284 TSP 1 Feb 7, 2012 Application Note AN4076: The MMA8451Q has a embedded features which include eight different sample rates, 32 different cutoff frequencies for the high-pass filter, Three dynamic ranges and four oversampling modes. It also has a 32 sample FIFO for collecting and storing data, which is the most efficient way to access the data for minimizing the I2C transactions. None /docs/en/application-note/AN4076.pdf English documents 503509 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4076.pdf AN4076, Data Manipulation and Basic Settings of the MMA8451, 2, 3Q - Application Notes /docs/en/application-note/AN4076.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN4076, Data Manipulation and Basic Settings of the MMA8451, 2, 3Q - Application Notes MMA8451Q,MMA8451QT,MMA8452Q,MMA8452QT,MMA8453Q,MMA8453QT 503.5 KB AN4076 N 1283551399412716407284 /docs/en/application-note/AN4068.pdf 2016-10-31 1283549938075727371904 TSP 2 Oct 31, 2011 Application Note AN4068: This application note targets the portrait/landscape orientation detection feature which has become standard in many handheld electronic devices. Additionally, this application note aims to explain uses as well as highlight some of the challenges of designing an embedded algorithm into the sensor. None /docs/en/application-note/AN4068.pdf English documents 284643 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4068.pdf AN4068, Embedded Orientation Detection Using the MMA8451, 2, 3Q - Application Notes /docs/en/application-note/AN4068.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N N AN4068, Embedded Orientation Detection Using the MMA8451, 2, 3Q - Application Notes MMA8451Q,MMA8451QT,MMA8452Q,MMA8452QT,MMA8453Q,MMA8453QT 284.6 KB AN4068 N 1283549938075727371904 /docs/en/application-note/AN4070.pdf 2016-10-31 1283550205258715451261 TSP 3 Oct 31, 2011 Application Note AN4070: The MMA8451, 2, 3Q has one (1) embedded functions for both Motion and/or Freefall along with a very flexible interrupt routing scheme. Motion is often used to simply alert the main processor that the device is currently in use. The transient function has the option of disabling the high pass filter and can behave exactly like the motion detection. None /docs/en/application-note/AN4070.pdf English documents 399760 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4070.pdf AN4070, Motion and Freefall Detection Using the MMA8451, 2, 3Q - Application Notes /docs/en/application-note/AN4070.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN4070, Motion and Freefall Detection Using the MMA8451, 2, 3Q - Application Notes MMA8451Q,MMA8451QT,MMA8452Q,MMA8452QT,MMA8453Q,MMA8453QT 399.8 KB AN4070 N 1283550205258715451261 /docs/en/application-note/AN4071.pdf 2016-10-31 1283550204788691273588 TSP 4 Oct 31, 2011 Application Note AN4071: The MMA8451, 2, 3Q has a built-in high-pass filter. In the MMA8451, 2Q the output data can go through the high-pass filter, eliminating the offset (DC) and low frequencies (well below the cutoff). Note that the MMA8453Q does not have the capability to read out data from the high-pass filter. The high-pass filter cutoff frequency can be set by the user to four different frequencies which are dependent on the Output Data Rate (ODR). None /docs/en/application-note/AN4071.pdf English documents 418421 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4071.pdf AN4071, High-Pass Filtered Data and Transient Detection Using the MMA8451, 2, 3Q - Application Notes /docs/en/application-note/AN4071.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN4071, High-Pass Filtered Data and Transient Detection Using the MMA8451, 2, 3Q - Application Notes MMA8451Q,MMA8451QT,MMA8452Q,MMA8452QT,MMA8453Q,MMA8453QT 418.4 KB AN4071 N 1283550204788691273588 true Y Tools
