EdgeReady i.MX RT106V-Based Smart Voice User Interface Solution

SLN-SVUI-IOT

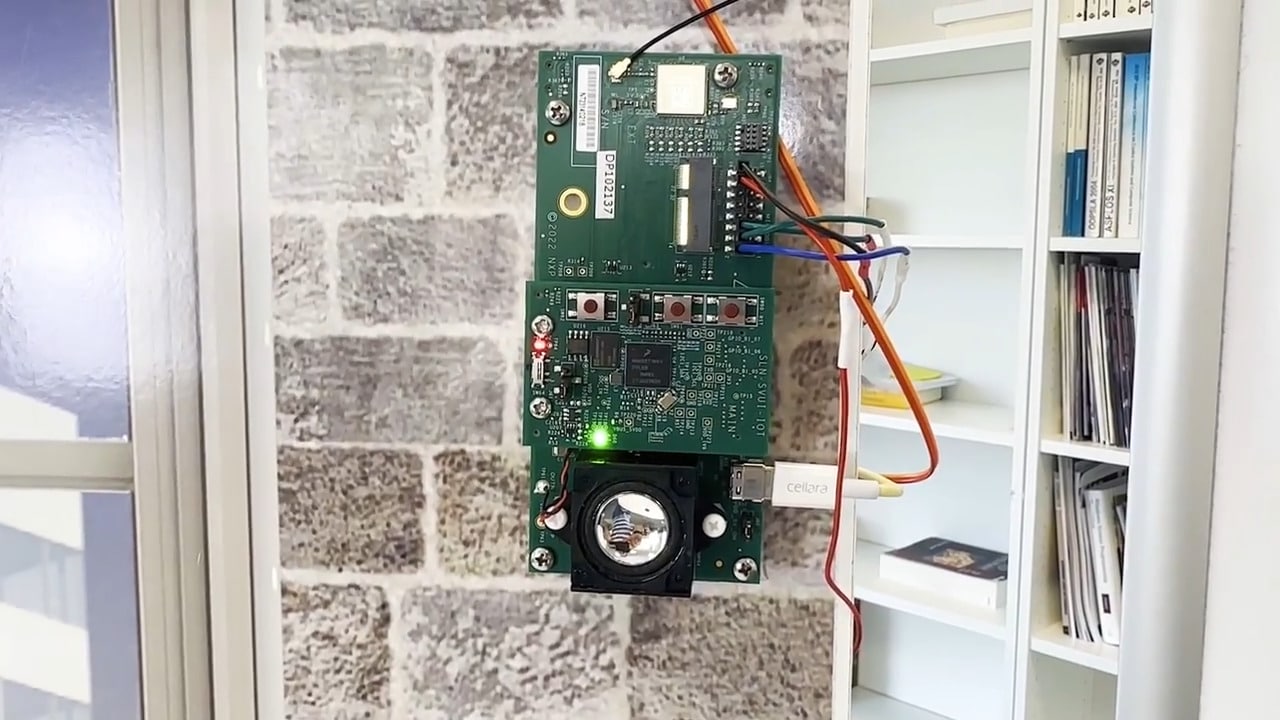

Click over video to play

This EdgeReady solution for local, online and/or Matter connected device voice control leverages the i.MX RT106V crossover MCU with integrated voice intelligent technology (VIT) and Speech to Intent (S2I) offering a voice user interface for touchless applications. This ultra-small form-factor and production ready hardware design comes with fully integrated software running on FreeRTOS for a quick out-of-the-box evaluation. This turnkey solution minimizes time to market, risk and development effort enabling OEMs to easily add voice to their smart home and smart appliance products. This NXP EdgeReady solution is part of the EdgeVerse™ edge computing platform.

i.MX RT106V enables voice control over network of multiple matter connected nodes.

Block Diagram

Choose a diagram:

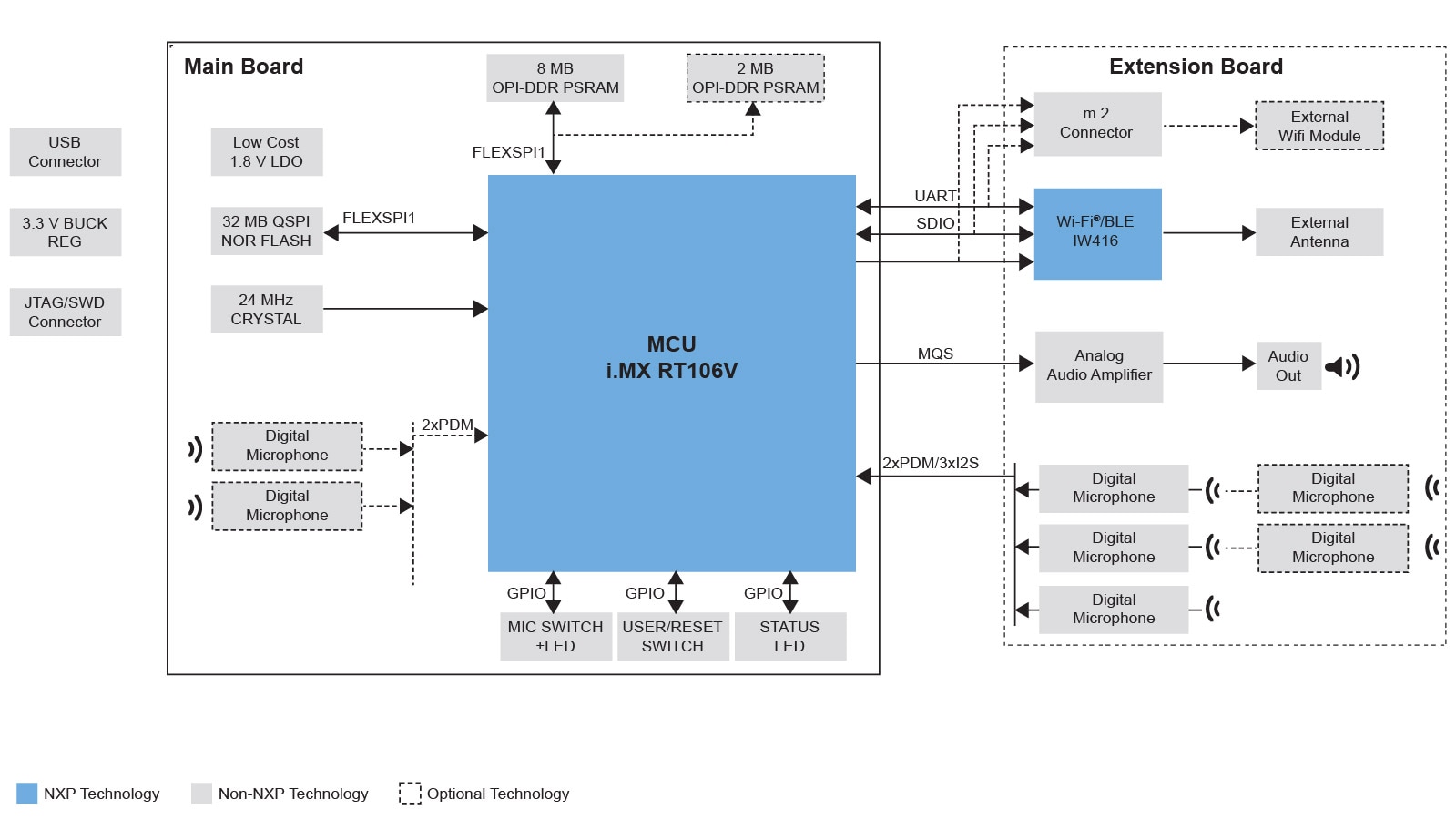

SVUI Hardware

Smart-Voice-Solution-BD2

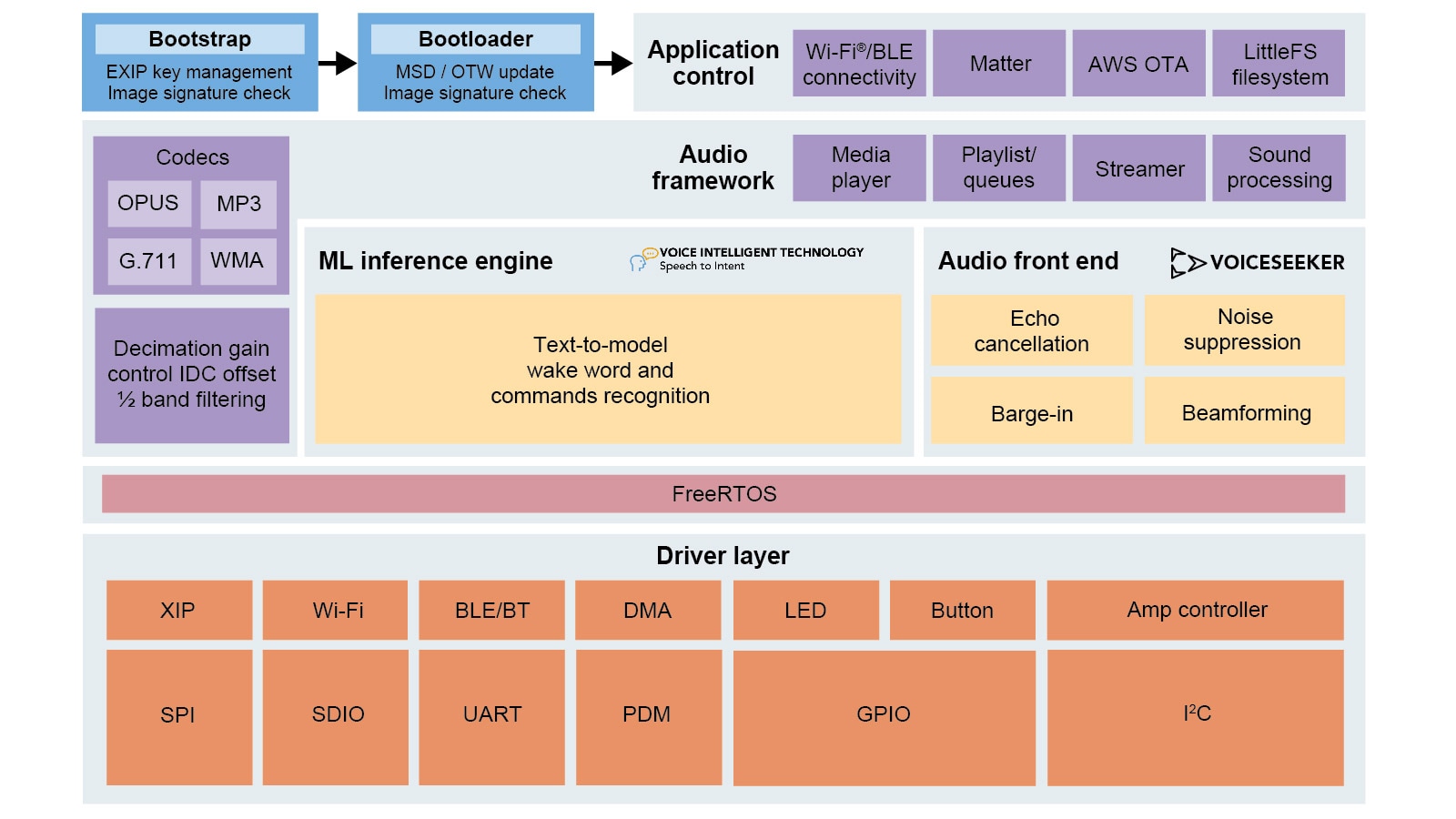

SVUI Software

Smart-Voice-Solution-BD
Get diagram PDF

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1060: i.MX RT1060: Crossover MCU with Arm® Cortex®-M7

Features

  • i.MX RT106V Crossover MCU with Arm® Cortex®-M7 core, 3020 CoreMark/1284 DMIPS @ 600 MHz
  • Advanced multimedia for GUI and enhanced HMI
    • 2D graphics acceleration engine
    • LCD display controller (up to WXGA 1366x768)
    • 3x I2S for high-performance, multi-channel audio
  • Secure JTAG PLL OSC eDMA 4x Watch Dog 6x GP Timer 4x Quadrature ENC 4x QuadTimer 4x FlexPWM IOMUX
  • Extensive external memory interface options
    • NAND, eMMC, QuadSPI NOR Flash, and Parallel NOR Flash
  • Far field audio front end automatic speech recognition supports 360° far field voice 65dB noise @ >3 meters
  • Supports 2xPDM or up to 3xI2S DMIC provides 2 or 3-mic for audio beamforming
  • Text input tool creates speech models of custom commands and wake words with no NRE
  • IW416 integrated on board to support Wi-Fi® 4 (802.11n) + Bluetooth® 5.2

Buy Options

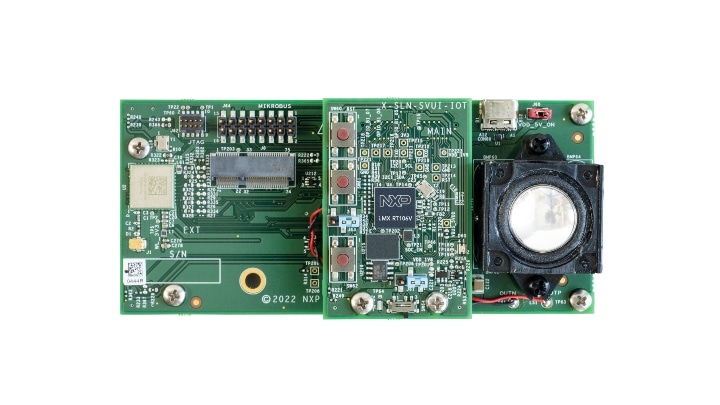

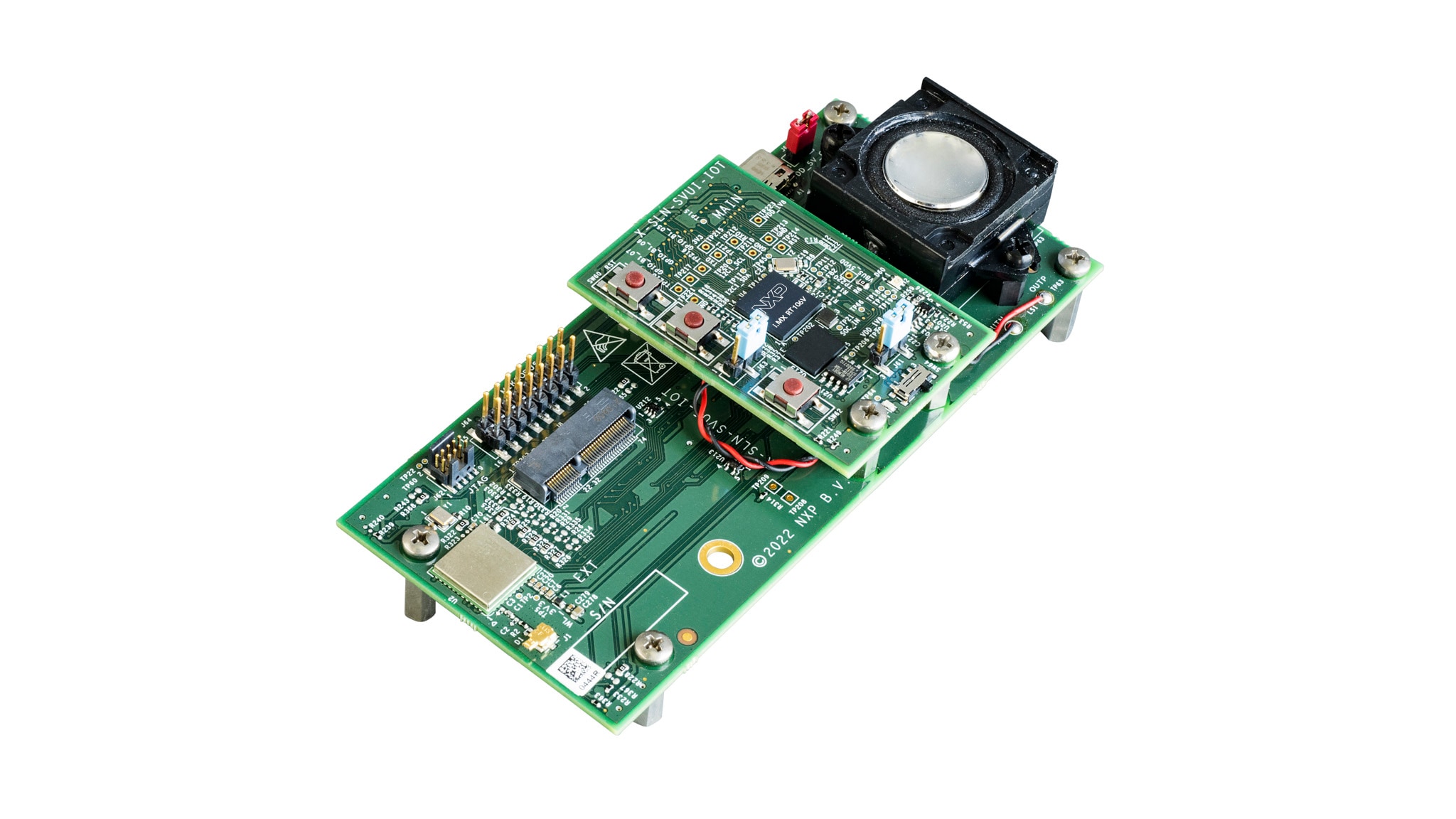

SLN-SVUI-IOT-Image

Click to expand

  • SLN-SVUI-IOT
    Active

  • Smart Voice UI solution EVK.

  • Kit Contains:

    • i.MX RT Voice Kit
    • USB Type-A to USB Type-C Cable
    • Wi-Fi Antena

  • $109.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 3
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
