Low Noise Amplifier BFU520XR, BFU530XR and BFU550XR Customer Evaluation Kit for Transistors in SOT143XR Package

OM7964
Active

Roll over image to zoom in

The BFU5xxXR customer evaluation kit enables the user to evaluate the performance of the low noise amplifier using the BFU520XR, BFU530XR or BFU550XR.

Supported Devices

RF

Legacy RF Wideband Transistors

  • BFU520XR: NPN Wideband Silicon RF Transistor
  • BFU530XR: NPN Wideband Silicon RF Transistor
  • BFU550XR: NPN Wideband Silicon RF Transistor

Features

Key Features

  • Easy evaluation of the transistor performance

Buy Options

OM7964-Image

Click to expand

  • OM7964
    Active

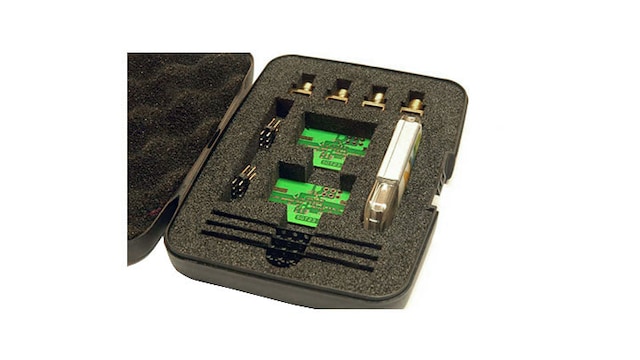

  • Low noise amplifier BFU520XR, BFU530XR and BFU550XR customer evaluation kit for transistors in SOT143XR package.

    • The kit comes with 2 unpopulated evaluation boards
      • 1 with grounded emitter
      • 1 with emitter degeneration
      • Samples of the transistors
    • USB stick with Datasheets
    • Application note
    • Models
    • S-parameters
    • 4 SMA connectors
    • 2 supply connectors
  • For a quantity of 1
Order from distributors
