Development Kit for PN7642 Secure, Compact NFC Controller with Programmable Memory and Crypto Acceleration

OM27642

Roll over image to zoom in

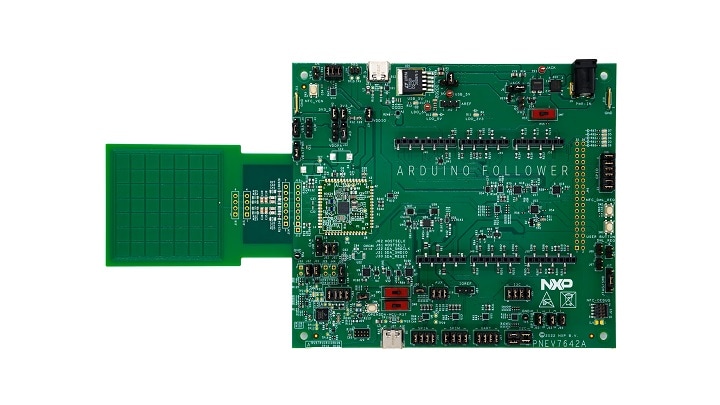

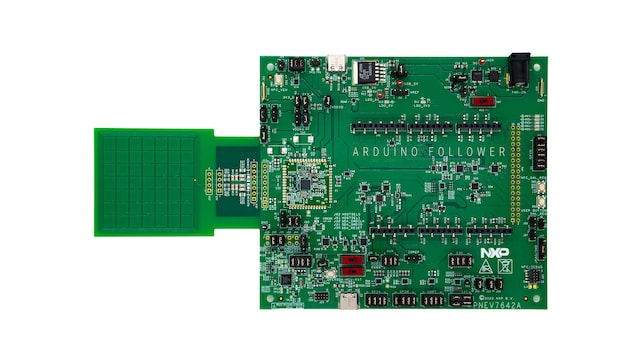

The OM27642EVK development kit, designed to help simplify development and reduce time to market, includes a PN7642 and a LPCXpresso 55S16 development board with I²C or SPI interface, an NTAG 424 DNA Tag and an RF field detector.

Supported Devices

RFID

NFC Readers

  • PN7642: Single-Chip Solution with High-Performance NFC Reader, Customizable MCU and Security Toolbox

Features

  • NFC board uses PN7642 and uses a 45x45mm antenna and Arduino connector
  • LPCXpresso 55S16 development board with I²C or SPI interface
  • Onboard dynamic power control (DPC) for optimized RF performance
  • Low-power and ultra-low-power card detection
  • Supported by NFC Cockpit running on PC
  • Supported by NFC reader library

Buy Options

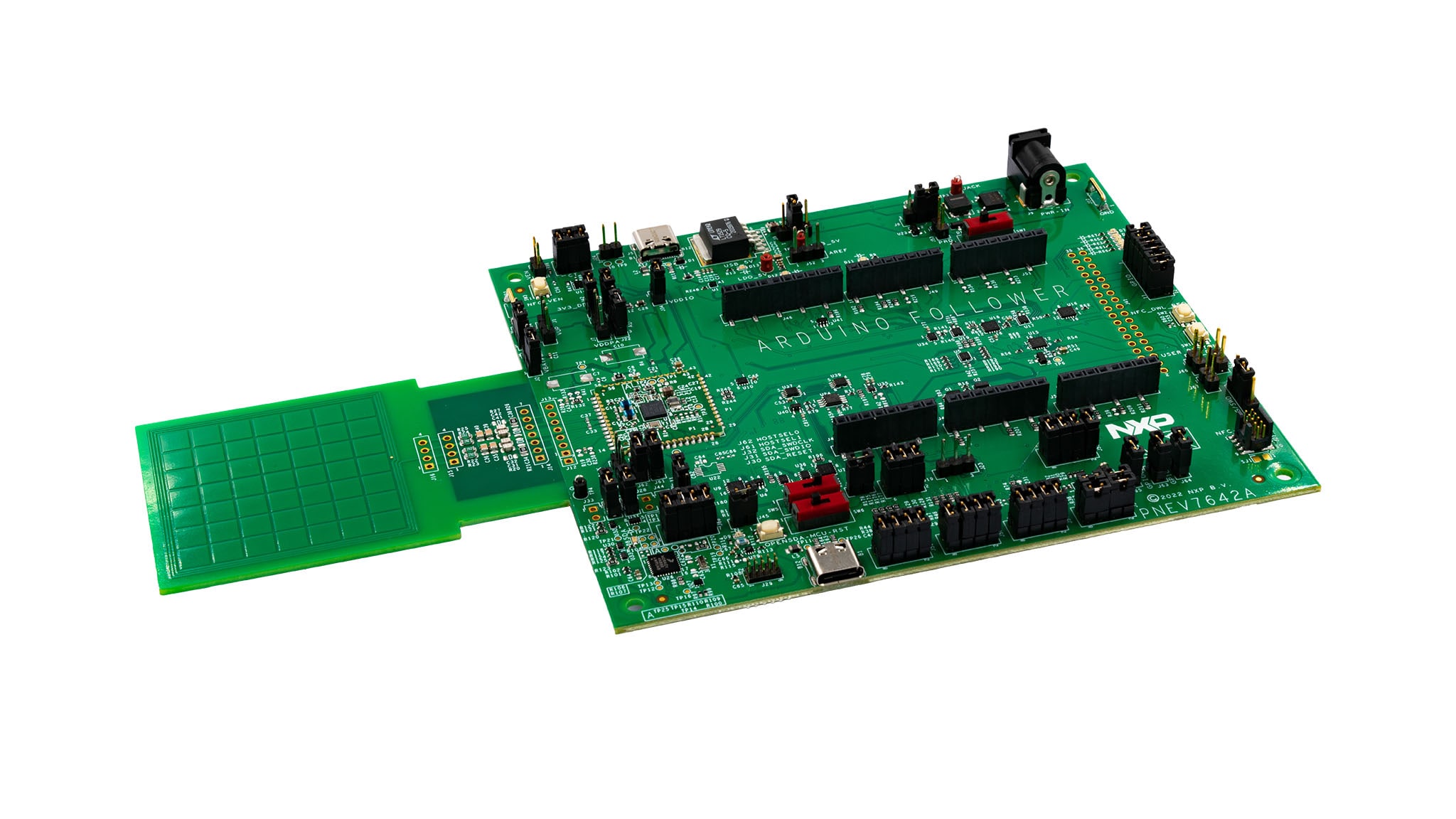

OM27642EVK-Image

Click to expand

  • OM27642EVK
    Active

  • Development Kit for PN7642 Secure, Compact NFC Controller with Programmable Memory and Crypto Acceleration.

  • Kit Contains:

    • 1 PN7642 Development Board
    • 1 X USB-C Cable
    • 1 X LPCXpresso55S16 Development Board
    • 1 RF Detector
    • Standard NXP box
    • Documentation
  • $290.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 13
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors

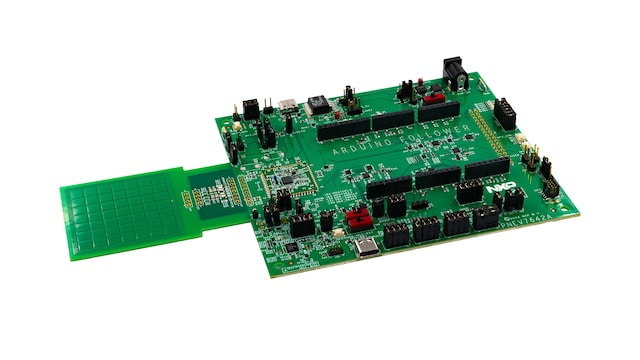

OM27642DB-Image

Click to expand

  • OM27642DB
    Active

  • Development board for PN7642 Secure, Compact NFC Controller with Programmable Memory and Crypto Acceleration.

  • Kit Contains:

    • 1 PN7642 Development Board
    • Standard NXP box
    • Documentation
  • $240.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors

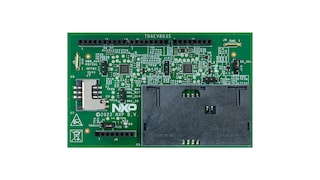

TDAEV8035-Image

Click to expand

  • TDAEV8035
    Active

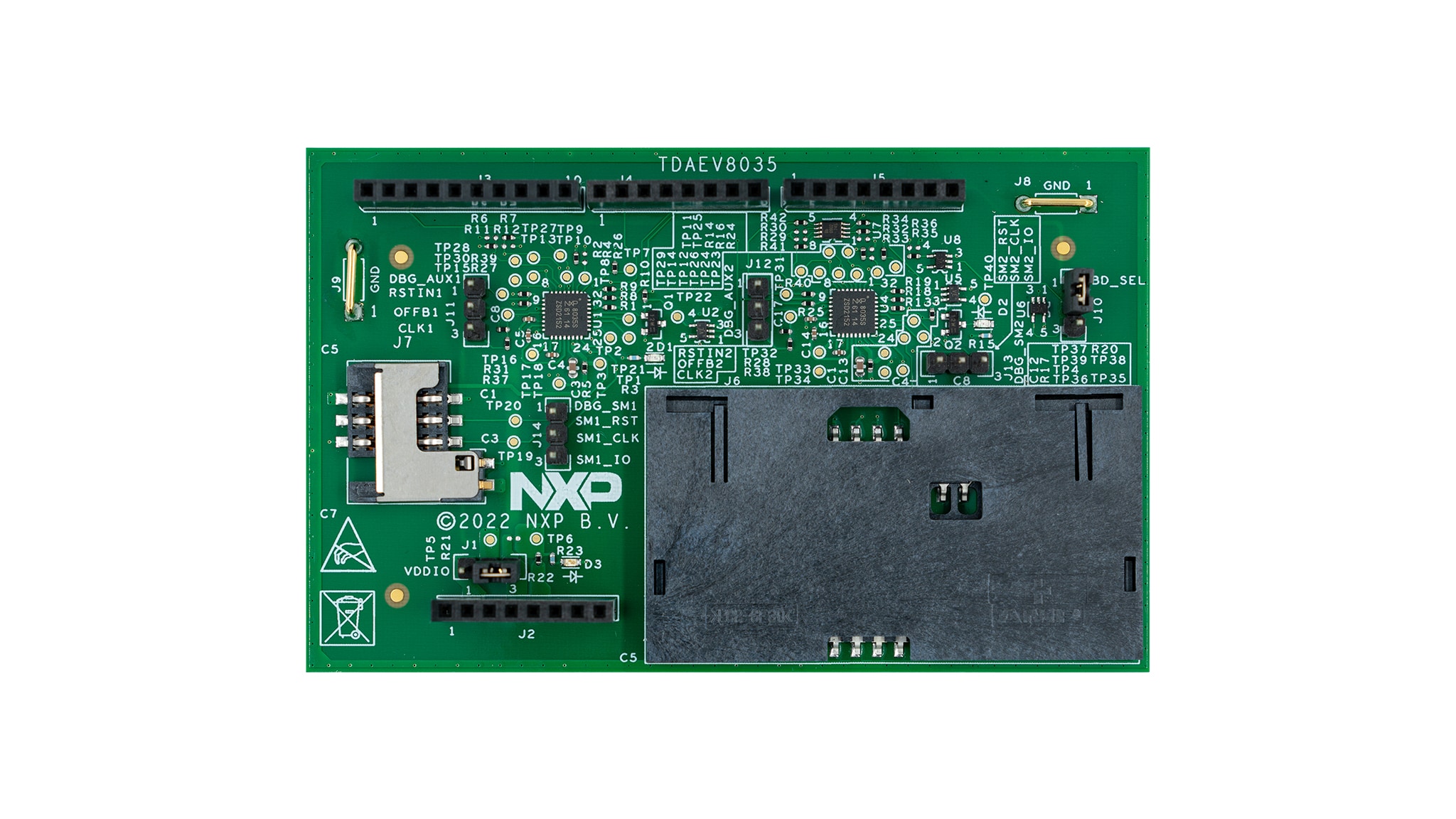

  • The TDAEV8035 dev board with Arduino compatible interface allows easy evaluation of the PN7642 contacted card features.

  • $69.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
