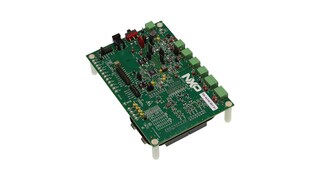

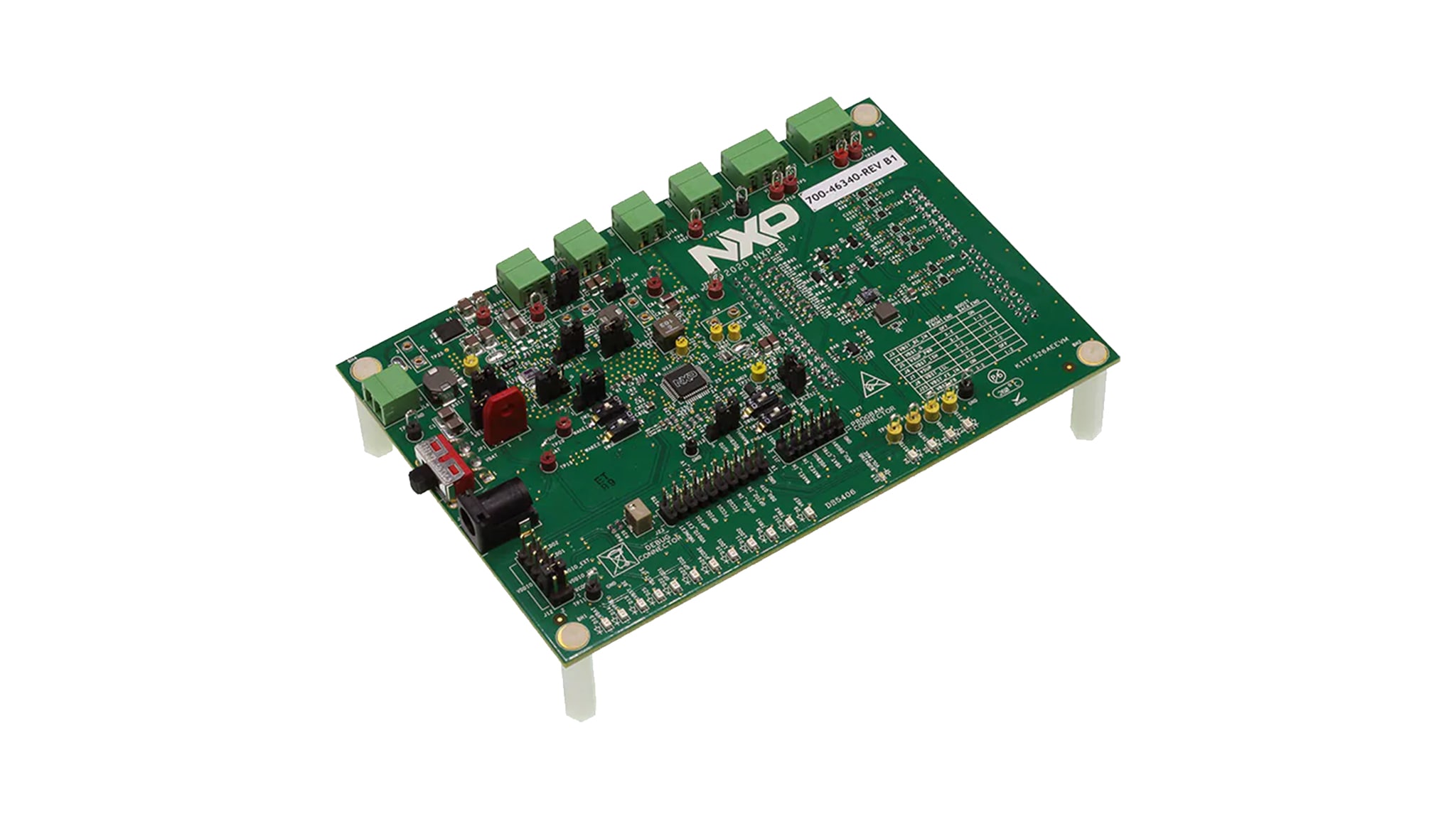

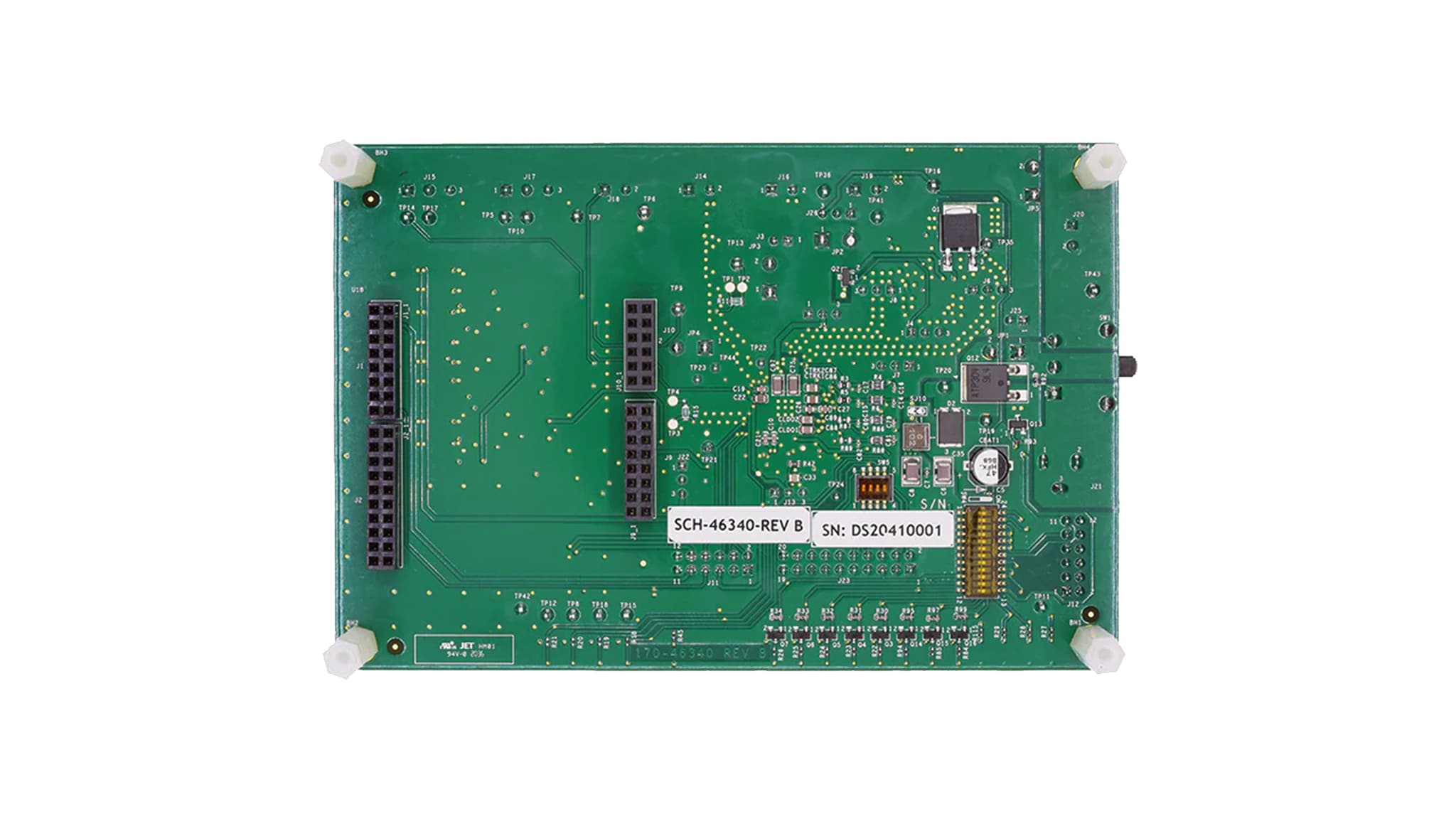

FS26 Safety SBC Evaluation Board

KITFS26AEEVM Active

Roll over image to zoom in

KITFS26AEEVM provides easy customer development of the FS26 device family. It's targeting 12 V automotive applications. The tool can be used in a standalone mode and controlled with an USB interface. SPI command is easily controlled by NXP GUI software.

The FS26 family can be evaluated with this board as it is populated with a superset part. The FS26xx part soldered on the board can be fused one time or it is possible to test as many configurations as needed in Emulation mode.

Supported Devices

Power Management

System Basis Chips

  • FS26: Safety System Basis Chip with Low Power, for ASIL D Systems

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K3: S32K3 Microcontrollers for Automotive General Purpose

Features

Connectivity

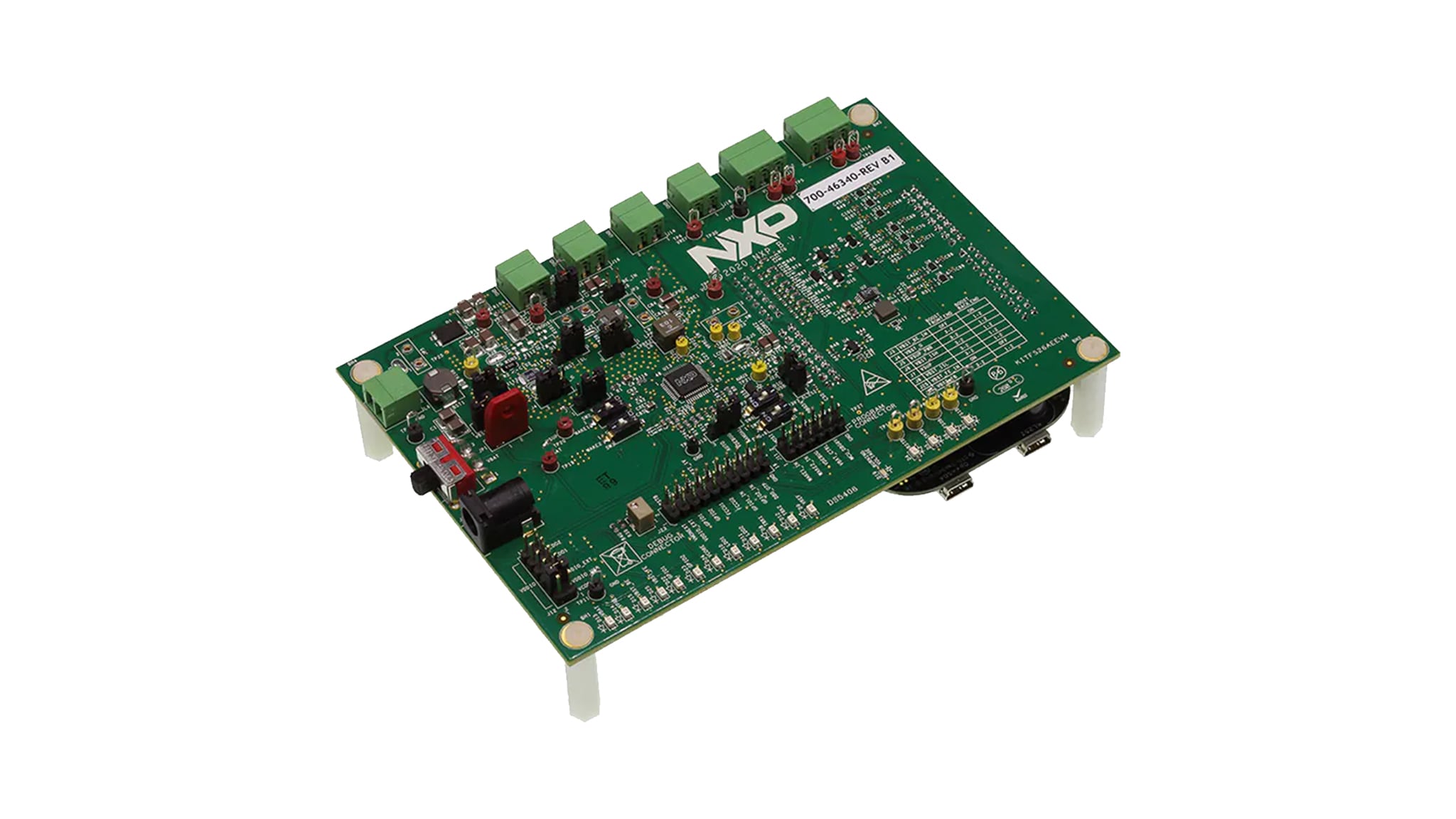

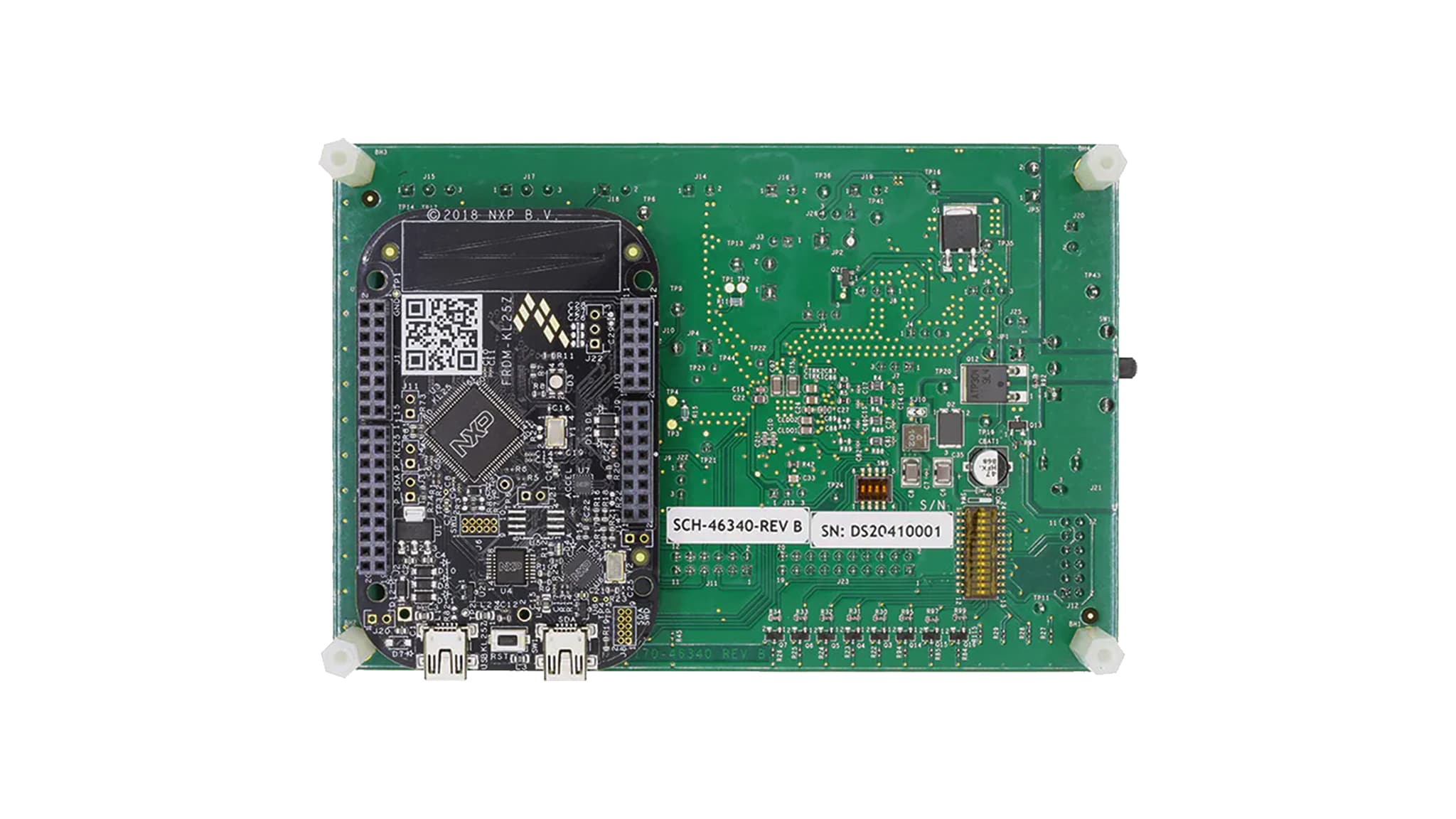

  • FRDM-KL25Z MCU plugged allows USB connection for easy connection to software GUI (access to SPI bus, IOs, Safety outputs, Debug, AMUX, regulators) USB connection for register access, OTPemulation and fuse

Power Management

  • VBAT power supply connectors (Jack and Phoenix)
  • VPRE output 3.3 V to 6.5 V, up to 1.5 A
  • VBOOST in Independent mode or in Front-end topology to support battery cranking profiles
  • VCORE output 0.8 V to 3.3 V, up to 1.6 A
  • LDO1 and LDO2, from 3.3 V or 5.0 V, up to 400 mA
  • VTRK1 and VTRK2, from 3.3 V or 5.0 V, up to 150 mA
  • VREF accuracy regulator for external ADC reference

General Specifications

  • FS0B, FS1b external safety pins

Support

  • Debug mode access
  • Manual or Automated OTP fuse programming.
  • Connectors allowing easy access to digital signals

Components

  • LEDs that indicate signal or regulator status
  • Analog variable resistor to test external VMON

Buy Options

KITFS26AEEVM-Image

Click to expand

  • KITFS26AEEVM
    Active

  • FS26 Safety SBC Evaluation Board.

  • Kit Contains:

    • KITFS26AEEVM Board
    • FRDM-KL25Z
    • Power Supply Mating Connectors
    • USB Mini Cable Type A Male / Type B Male
  • $324.88 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
