Evaluation Board for MC33772C with SPI Communication

FRDM33772CSPEVB

Roll over image to zoom in

The FRDM33772CSPEVB evaluation board (EVB) features the MC33772C, a 6-channel battery cell controller for automotive and industrial Li-ion battery applications. It supports cell voltage measurement, passive cell balancing and GPIOs.

The kit is designed to support customer development and evaluation. The device can be connected to NXP 6-cell battery emulator or a customer Li-ion battery module with 3-6 cells in series. The battery cell information is transferred to the microcontroller unit (MCU) through an SPI interface.

Supported Devices

Power Management

Battery Cell Controllers

  • MC33772C: 6-Channel Li-Ion Battery Cell Controller IC

Features

Connectivity

  • SPI communication
  • 34 pin connector for 6 cell battery connections and current sensing
  • 2 offboard temperature sensing inputs and 2 voltage measurement inputs

LED Indicator

  • VCOM status

MC33772C

  • 6 cell voltage measurements
  • 100 mA cell balancing
  • 1 onboard temperature sensors
  • Diagnostic functions

Buy Options

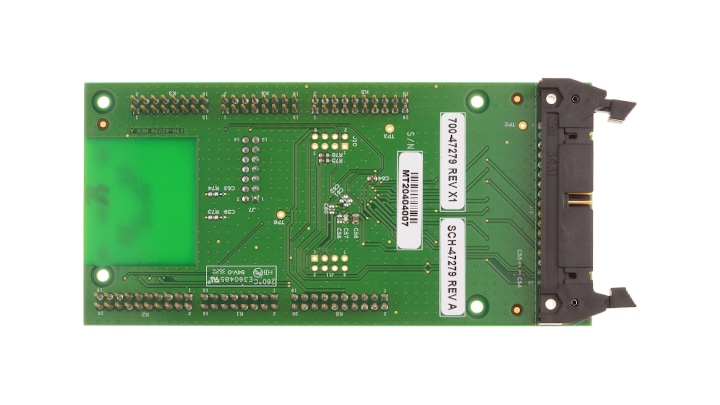

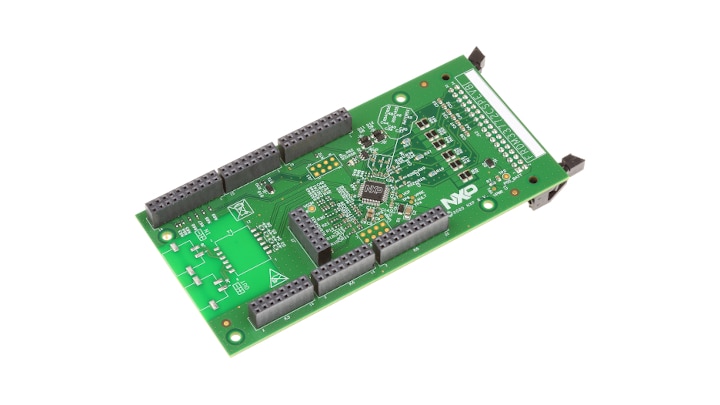

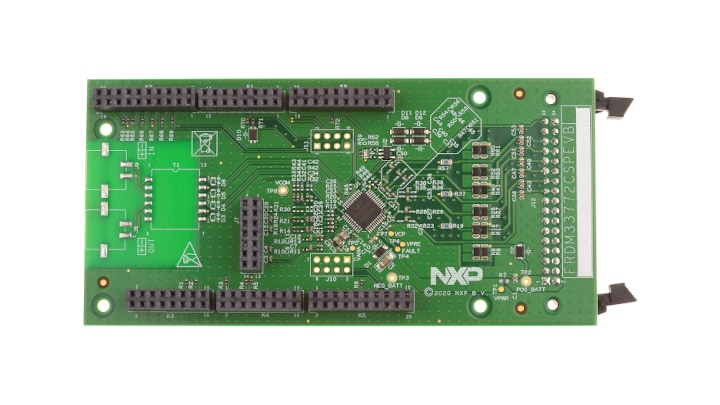

FRDM33772CSPEVB-Image

Click to expand

  • FRDM33772CSPEVB
    Active

  • Evaluation Board for MC33772C with SPI Communication.

  • Kit Contains

    • Assembled and tested evaluation board/module in anti-static bag
    • Quick Start Guide
  • $188.88 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
