VFxxx VF5xxR Family Evaluation Platform for Automotive Applications

EVB-VF522R3 Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

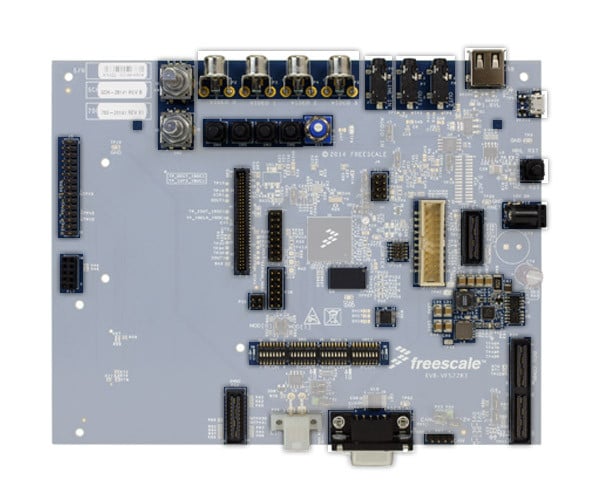

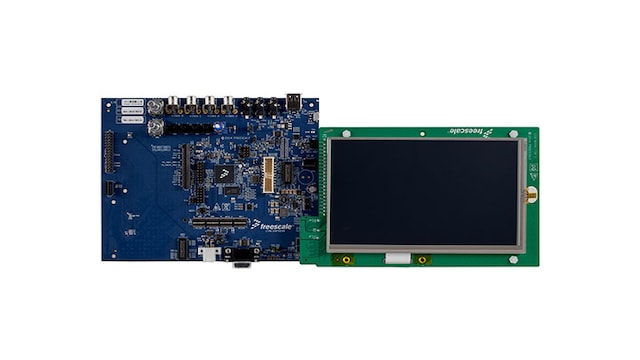

The EVB-VF522R3 evaluation platform for the VFxxx VF5xxR family is ideal for cost optimized automotive connected radio and infotainment systems. The heterogeneous dual-core architecture combines the high-performance low-power Arm® Cortex®-A5 application processor with the ultra-low-power Arm Cortex-M4 MCU.

Product Details

Features

Microcontroller

  • SVF522R3K1CMK4, 500 MHz 32-bit Arm Cortex-A5 core MCU

Memory

  • 1 Gb (64 M x 16) DDR3 IC
  • Three 256 Mbit (32 MB) QuadSPI Flash ICs
  • SD card
  • SPI serial 32 Mbit Flash IC (dedicated to DSP, optional usage)

Connectivity

  • Unified 24-bit DCU connector
  • MLB daughtercard connector
  • Board-to-Board connector bearing one 10/100 Mbit/s RMII MAC (Ethernet) interface
  • Boot configuration jumpers and full 32-bit
  • Two incremental encoders

Interfaces

  • Two VFxxx USB interfaces: Micro-AB and Standard-A connectors with full 500 mA support each
  • I2C header for custom-made daughtercard powered from 3.3 V
  • I2C header for daughtercard powered from 5 V
  • Bluetooth daughtercard header
  • Generic CD header

Audio

  • Left and right SPI-based microphones
  • Standalone DSP for audio processing
  • Twin dedicated audio DAC, filter, and headphone amplifiers for audio outputs (3.5 mm connectors)
  • Radio-tuner daughtercard connector

Video

  • Four analog video inputs with direct connection to VFxxx video ADC

Debug

  • 20-pin JTAG debug header
  • 10-pin Cortex debug header

Components

  • RCON switches
  • Four dedicated station preset buttons
  • Potentiometer connected to VFxxx ADC
  • High-speed CAN transceiver
  • SCI/RS232 and LIN transceivers on shared VFxxx channel

More
