- Oct 28, 2016
About This Video

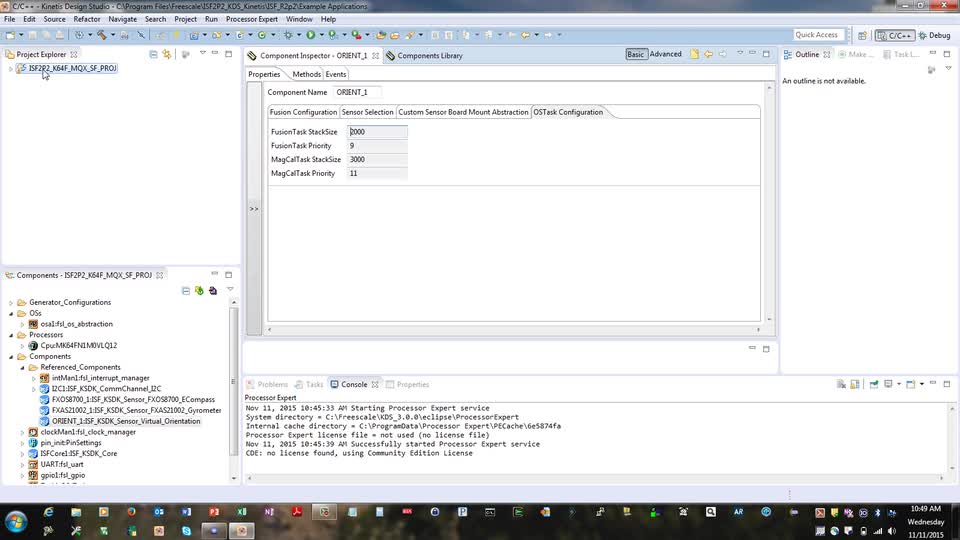

This video introduces Sensor Fusion implementation with ISF using the Orientation Sensor and KDS. Content is similar for all sensor combinations and all Kinetis® MCUs, and Operating Systems
Course Outline
Intelligent Sensing Framework v2.2- Video 0: ISF 2.2 Hardware and Software Setup
- Video 1: ISF 2.2 Installation
- Video 2: ISF 2.2 FRDM-K64F Example Project
- Video 3: ISF 2.2 KIT Tool Usage
- Video 4: ISF 2.2 Adding Your Code to the Sample Application Provided
- Video 5: ISF 2.2 Sensor Component Register Settings (How to configure the sensor components)
- Video 6: ISF 2.2 Creating Host Interface Commands
- Video 7: ISF 2.2 Creating Streaming Protocol Commands
- Video 8: ISF 2.2 Using the Register Level Interface Component
- Video 9: ISF 2.2 Orientation Sensor Demo
What You'll Learn
These are short videos to get you up and running on a Kinetis® FRDM board and a sensor shield board. The videos are not limited to the FRDM-K64F and apply to any FRDM board.
