This week's Wireless Wednesday will focus on NXP's unified Wi-Fi driver for Wireless Connectivity SoCs known as the Multi-Chip, Multi-Interface driver (MXM). We will explain how its architecture simplifies development across NXP's Wireless Connectivity SoCs and i.MX Applications Processors.
The MXM driver is NXP’s proprietary Wi-Fi driver implementation and can be used with NXP i.MX MPUs supporting Linux and Android. The driver has a flexible dual license offering and is offered under GPL-2.0 and a proprietary license which helps to avoid licensing conflicts. The driver provides a seamless interface between the NXP Wireless SoC’s firmware and the standard Linux networking stack/cfg80211 on the host processor. The driver is responsible for providing various Wi-Fi functions to the kernel and application, including station/client (STA), Micro AP/Softap (uAP), P2P and Neighbor Awareness Networking/Wi-Fi Aware (NAN).
NXP offers the MXM driver through GitHub. Visit the MXM driver GitHub source repository to view and download the driver source code.
The MXM driver supports the portfolio of NXP Wireless Connectivity SoCs, supporting PCIE, SDIO and USB interfaces. The SoC/interface combination can be easily configured via Makefile settings during compile time, including the ability to configure multiple SoC/interface combinations at the same time. The compiled kernel module of the driver can work with the various SoC/interface combinations without the need for reloading or recompilation of the driver. For developers who want to switch from the current generation of NXP devices to the next generation, this provides an easier migration path with less integration efforts and easier maintenance across generations of products without the burden of architecture changes.

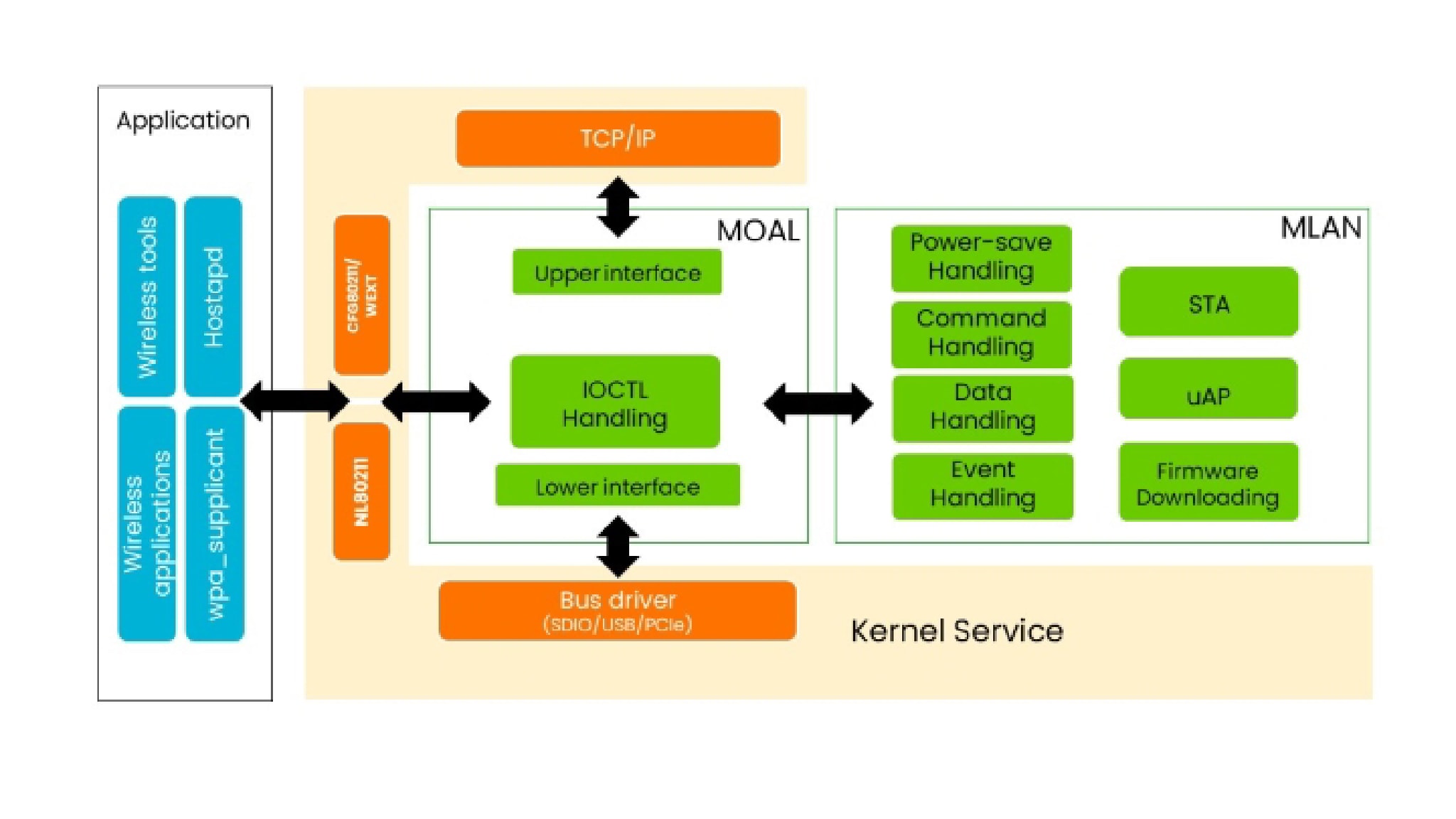

The driver has a two-layer architecture comprising the MLAN layer and the MOAL layer, as shown in Figure 1. This is primarily meant to make it easier for porting to different OSes other than Linux/Android. The functions of these two layers are as follows:
The MLAN module contains the majority of the code and can be used as-is while the MOAL module must be ported to the target OS. NXP has ported the MOAL module to some of the most common RTOSes that support NXP’s i.MX RT Crossover MCUs and General Purpose MCUs, including FreeRTOS and Zephyr.
NXP has ported the MXM driver to RTOS. Explore the driver repos for FreeRTOS and Zephyr to kickstart your RTOS projects.
The FreeRTOS implementation is included as part of the MCUXpresso SDK while the Zephyr Wi-Fi driver is part of the Zephyr Project upstream. The RTOS drivers are licensed using the permissive BSD-3 Clause License thus allaying the concerns of developers and customers when a non-GPL based license is preferred.
The release of MCUXpresso SDK 24.12.00 provides many benefits for wireless developers. Learn more about how the MCUXpresso SDK advances wireless development.
The MXM driver also supports platforms based on processor architectures such as x86 and ARM, making it well suited for i.MX MPUs. It offers backward compatibility with Linux kernel versions over the last 15 years as well as with older versions of Android. The driver is continuously upgraded to be compliant with the latest kernel version and supports working with various standard and third-party applications with the standard Linux utilities/tools, such as iw, and wpa_supplicant supported by the driver via the cfg80211 application programming interface (Linux 802.11 configuration API).
NXP has integrated the MXM driver with NXP’s i.MX Applications Processors and offers quarterly Linux and Android Board Support Packages (BSPs) for NXP evaluation kits (EVKs) across the i.MX 6, i.MX 7, i.MX 8 and i.MX 9 series. NXP has optimized and validated the BSPs for peak performance and rich feature sets across a diverse set of use cases covering Industrial, IoT, and Automotive segments. This provides a seamless out-of-box experience to evaluate NXP Processor and Wireless Connectivity solutions. The BSPs are supported by maintenance releases and patches, ensuring lower cost of ownership for customers. The BSPs can be found at Embedded Linux for i.MX Applications Processors and Android OS for i.MX Applications Processors.
Enjoy a seamless out-of-box experience with NXP EVKs. Get started with the i.MX Application Processors BSPs available for Linux and Android.
The driver is available as a submodule of the Linux Yocto project build, making it easier for developers to build for NXP-based EVKs. Further, the driver is released in source code format and can be downloaded from sources such as GitHub enabling easier collaboration and integration with both NXP and non-NXP platforms. Refer to the user manual for instructions to download and build the MXM driver. For users targeting a Yocto-based system, the NXP Yocto recipes for the MXM Driver are distributed here and can be used to port the MXM driver to additional, third-party platforms with minimal development effort.
Easier collaboration and integration accelerates your development path. Learn more about how to download and build the MXM driver in the user manual.
