In the rapidly evolving world of advanced electronics, the competition to
develop processors using increasingly smaller CMOS processes is more intense
than ever. Given this fact, efficient power management and seamless
communication between different voltage domains are critical.
Enter the P3A1604UK, a 4-bit dual-supply translating transceiver housed in a
tiny WLCSP12 package—a game-changer for next-generation small form factor
applications. To understand its impact, we sat down with our expert in semiconductor
solutions, Bob Gee, to discuss how this tiny yet powerful component is shaping
the industry.
The Innovation Behind NXP’s P3A1604UK Voltage Translator
Q: What sets the P3A1604UK apart from other voltage translators?
BG: The P3A1604UK distinguishes itself with exceptional power efficiency. Thanks to its innovative
architecture, it consumes up to 20 times less power compared to other suppliers. This offers a significant advantage
for smartphone and other portable devices manufacturers, who are constantly striving to maximize battery life. In
addition, this device has wide and ultralow voltage range, with VCCA operating from 0.72 V to 1.98 V and VCCB from
1.62 V to 3.63 V, making it versatile to bridge various logic levels in modern electronics. With next-generation
microprocessors adopting more advanced processes, the P3A1604UK was designed to support multiple future processor
generations, ensuring future-proof designs while saving valuable time and costs associated with designing in a new
voltage level translator.
Typical P3A1604UK application block diagram.
For a better viewing experience, download the block diagram.
Shaping the future with multi-voltage compatibility. Find out more about NXP’s new P3A1604UK solution.
Why Mobile and Portable Devices Need It
Q: How does the P3A1604UK cater to mobile and battery-powered applications?
BG: The power savings, ultralow voltage operation, and bidirectional data transfer make it ideal for
mobile and portable applications. Devices today require seamless communication between processors, sensors and
peripherals that operate at different voltages. With its high-speed data transfer capability—up to 40 Mbit/s in
push-pull mode and 6.8 Mbit/s in open-drain mode—it ensures efficient performance without compromising on power
consumption.
Additionally, its compact WLCSP12 package (1.405 mm x 1.055 mm, 0.35 mm pitch)
is perfect for space-constrained applications like wearables, smartphones
and IoT devices.
Ease of Integration and Reliability
Q: What makes this device easy to integrate into existing designs?
BG: Unlike traditional voltage translators that require strict power
sequencing, the P3A1604UK does not require any power sequencing, which
significantly simplifies PCB layout and design considerations. Moreover, its
enhanced ESD protection (exceeding 2000 V HBM) and latch-up immunity ensure
reliability in rugged environments.
Target applications include smart phones and other small form
factor devices.
For a better viewing experience, download the block diagram.
Future-Proofing Mobile Electronics
Q: Where do you see the biggest impact of the P3A1604UK in the industry?
BG: The demand for multi-voltage compatibility is only increasing as devices
become more complex. The P3A1604UK’s support for multiple communication
protocols—including I3C, I2C, SMBus, SPI and UART—positions it as a go-to
solution for designers looking to ensure interoperability in future devices.

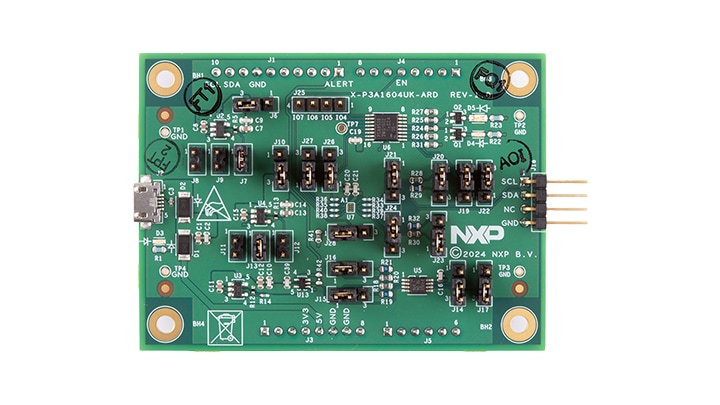

Bird’s Eye View of P3A1604UK-ARD Evaluation Board.
For a better viewing experience, download the block diagram.
Simplified block diagram of EVB.
For a better viewing experience, download the block diagram.
Final Thoughts
For engineers and product designers working on mobile, wearable and
low-power applications, the P3A1604UK is a robust solution that enhances
efficiency, flexibility and reliability. As voltage level translation
continues to be a crucial component in modern electronics, this tiny yet
powerful device is set to play a key role in shaping the future of connected
technology.
