Evaluation Kit for the i.MX 8M Nano Applications Processor

Roll over image to zoom in

Supported Devices

Processors and Microcontrollers

i.MX 8 Applications Processors

Power Management

PMICs

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

Features

Processor

  • i.MX 8M Nano Quad applications processor
  • 4x Cortex-A53 @ 1.5 GHz
  • 1x Cortex-M7 @ 750 MHz

Memory

  • LPDDR4 x16 w/2 GB
  • eMMC 5.0/5.1 w/16 32 GB
  • SD/MMC connector
  • QSPI w/32 MB

Power Management

  • NXP PMIC PCA9450

Display and Camera Interfaces

  • MIPI-CSI Camera Mini-SAS connector
  • MIPI-DSI Display Mini-SAS connector

Wireless

  • NXP 88W8987 module:
    • WiFi 5 (1x1)
    • Bluetooth 5
  • Onboard chip antenna
  • External antenna connector

Audio

  • Audio DAC 24-bit 192 kHz stereo
  • HP Jack 3.5 mm audio connector
  • Board expansion connector for audio interfaces

Connectivity

  • 10/100/1000 Ethernet
  • USB 3.0 Type C connector

Debug

  • JTAG connector
  • UART via USB

Tools and OS support

  • Linux
  • Android
  • FreeRTOS

Buy Options

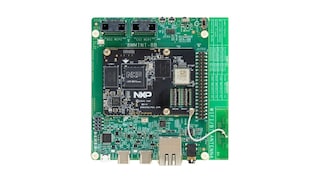

8MNANOLPD4-EVK-Image

Click to expand

  • 8MNANOLPD4-EVK

  • Evaluation Kit for the i.MX 8M Nano Applications Processor with NXP Wi-Fi/BT solution and NXP PMIC.

  • $388.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 4
    • Shipping: Normally ships 1-2 business days
Order from distributors
IMX-MIPI-HDMI-Image

Click to expand

  • $194.35 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
Order from distributors
MINISASTOCSI-Image

Click to expand

  • $74.75 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 12
    • Shipping: Normally ships 1-2 business days
Order from distributors
8MIC-RPI-MX8-Image

Click to expand

  • 8MIC-RPI-MX8

  • 8-microphone array proto board for voice enablement.

  • $228.85 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 18
    • Shipping: Normally ships 1-2 business days
Order from distributors
MX8-DSI-OLED1A-Image

Click to expand

  • MX8-DSI-OLED1A

  • Evaluation Kit for the i.MX 8M Applications Processor.

  • $573.85 USD
  • For a quantity of 1
    • Availability: Pending Stock
Order from distributors

Documentation

Quick reference to our documentation types.

1-5 of 46 documents

  • User Guide

    i.MX 8M Nano LPDDR4 EVK Board Hardware User's GuideGetting Started

  • User Guide

    i.MX 8M Nano DDR4 EVK Board Hardware User's GuideGetting Started

  • User Guide

    Getting Started with the i.MX 8M Nano EVK BoardGetting Started

  • Fact Sheet

    i.MX 8M Nano Applications Processor Fact Sheet

  • Quick Reference Guide

    i.MX 8M Nano EVK Quick Start Guide
