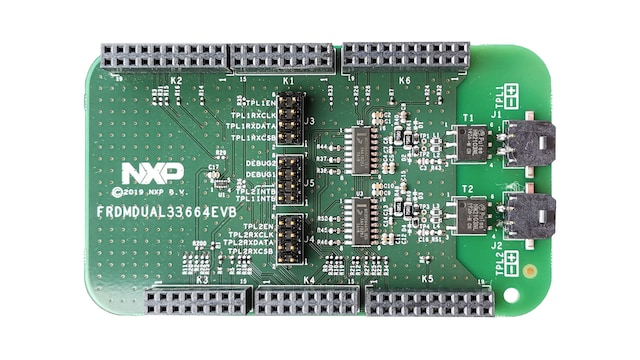

Evaluation Board for MC33664ATL Isolated Network High-Speed Transceiver

FRDMDUAL33664EVB
No Longer Manufactured

Roll over image to zoom in

This evaluation board features the MC33664ATL, a transceiver physical layer transformer driver designed to interface a microcontroller to a high-speed isolated communication network. MCU SPI data is directly converted to pulse bits and transferred to the bus network.

Slave response messages use the same structure to send pulse bit information to the MC33664ATL, which is then converted to an SPI bit stream for MCU.

This EVB works with the MC3377x battery cell controllers. The MC3377x are automotive lithium-ion battery cell controller ICs for hybrid (HEV) and electric vehicle (EV) as well as industrial applications, such as energy storage systems (ESS) and uninterruptible power supply (UPS).

Supported Devices

Battery Management

Battery Communication ICs

  • MC33664: Isolated Network High-Speed Transceiver

Battery Cell Controllers

  • MC33771C: 14-Channel Li-Ion Battery Cell Controller IC
  • MC33772B: 6-Channel Li-Ion Battery Cell Controller IC
  • MC33771B: 14-Channel Li-Ion Battery Cell Controller IC

Features

Connectivity

  • Single chain, dual chain or loop-back operation
  • 2.0 Mbit/s isolated network communication rate
  • Dual SPI architecture for message confirmation

Power Management

  • 3.3 V and 5.0 V compatible logic thresholds
  • Low sleep mode current with automatic bus wake-up
  • Ultra-low radiated emissions

Buy Options

BATT-TPLCABLE20-Image

Click to expand

BATT-TPLCABLE20
Active

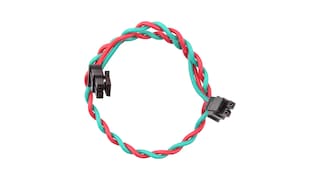

Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.

    $14.38 USD
    In Stock :19

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
    BATT-TPLCABLE50-Image

    Click to expand

    BATT-TPLCABLE50
    Active

    Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.

      $14.38 USD
      In Stock :9

      Normally ships 1-2 business days

      ADD TO CART
      Order from distributors
      FRDMDUAL33664EVB-Image

      Click to expand

      FRDMDUAL33664EVB
      No Longer Manufactured

      Evaluation Board for MC33664ATL Isolated Network High-Speed Transceiver.
