S12XF Automotive and Industrial Microcontrollers (MCUs)

S12XF No Longer Manufactured
  • This page contains information on a product that is not recommended for new designs.

Based on Our S12X architecture, the MC9S12XF family gives you a high-performance, cost-effective distributed control solution for satellite nodes on FlexRay™ networks used in body, chassis and safety applications.

Replacing 32-bit controllers for satellite nodes provides a reduction in overall system cost for FlexRay networks.

The S12XF family features four highly integrated MCUs offering a range of memory configurations and NXP®.s performance-boosting XGATE coprocessor.

Package options range from 112-pin low-profile quad flat-pack (LQFP) to the 10 mm x 10 mm 64-pin LQFP—the smallest FlexRay controller available.

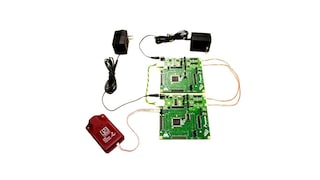

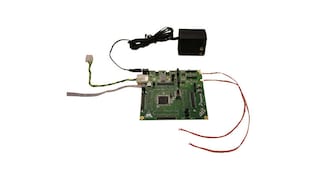

Product Details

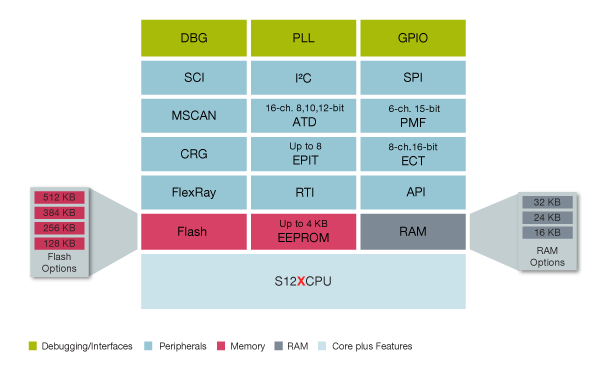

Block Diagram

Freescale S12XF Microcontroller Block Diagram

Freescale S12XF Microcontroller Block Diagram
Get diagram PDF

Features

  • Key Features
    • FlexRay Controller
    • XGATE co-processor capable for build virtual peripherials and boost the overall performance
    • Flexible programmable hardware emulated EEPROM
    • System integrity support with the memory protection unit (MPU) and supervisor/user modes
    • This product is included in NXP product longevity program, with assured supply for a minimum of 15 years after launch
  • Other Features
    • S12X CPU @ 50 MHz bus speed
    • Loop control/full-swing pierce oscillator
    • Enhanced interrupt module
    • Analog-to-digital Converter ADC 12-bit resolution and 3μs conversion time
    • Enhanced capture timer (ECT)
    • Periodic interrupt timer (PIT)
    • Real-time interrupt (RTI)
    • Asynchronous periodic interrupt (API)
    • Pulse width modulator (PWM)
    • MSCAN module
    • Serial peripherial interface (SPI)
    • Serial communication interface (SCI)
    • Background debug module (BDM) and debugger (xDBG)
    • On-chip voltage regulator
