S12GC Automotive and Industrial Microcontrollers (MCUs)

S12GC Active

The MC9S12GC128 MCU is a 16-bit device composed of the top on-chip peripherals for your automotive designs.

An on-chip bandgap-based voltage regulator (Vreg) generates the internal digital supply voltage (VDD) for a 2.97 V to 5.5 V external supply range.

The MC9S12GC128 has full 16-bit data paths throughout.

The inclusion of a phase-lock loop (PLL) circuit allows power consumption and performance to be adjusted to suit operational requirements.

A total of 50 I/O port pins and two input pins are available in the 80-pin package version. Up to 12 I/O port bits are available with wake-up capability from STOP or WAIT mode.

Block Diagram

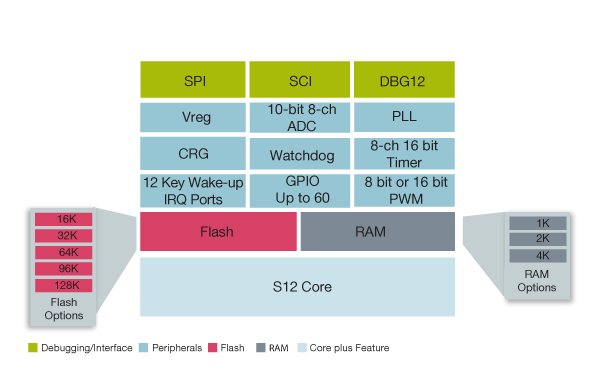

S12GC Microcontroller Block Diagram

S12GC Microcontroller Block Diagram
Get diagram PDF

Features

General

  • 16-bit HCS12 CPU
  • Asynchronous serial communications interface (SCI)
  • Serial peripheral interface (SPI)
  • Multiplexed external bus
  • 128 KB flash EEPROM
  • 4 KB RAM
  • 8-channel ADC, 10-bit resolution
  • 8 channel 16-bit TIM
  • 6-channel 8-bit PWM
