LPC553x/S3x

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

The LPC553x/S3x MCU family further expands the general purpose Cortex-M33-based MCU series, offering significant performance enhancement, all on-chip RAM with Parity or ECC, renewed security features and precision analog additions, leveraging the cost-effective 40-nm NVM process technology.

The LPC553x/S3x family includes a proprietary DSP accelerator offering 10x clock cycle reduction, bringing significant signal processing efficiency gains.

Data Sheet

Reference Manual

Product Details

Block Diagram

LPC553x/55S3x MCU

Get diagram PDF

Features

Arm® Cortex®-M33 Core (r0p4)

Running at a frequency of up to 150 MHz
Integrated digital signal processing (DSP) instructions
Floating point unit (FPU) and memory protection unit (MPU)
Arm Cortex M33 built-in nested vectored interrupt controller (NVIC)
Non-maskable interrupt (NMI) input with a selection of sources
Serial Wire Debug with eight breakpoints and four watch points. Includes Serial Wire Output for enhanced debug capabilities and trace (ETM)
System tick timer

DSP Accelerator/Coprocessor

A hardware DSP accelerator for fixed- and floating-point DSP functions (PowerQuad)

The PowerQuad uses a bank of four dedicated 4 kB SRAM

Crypto/FFT engine (public key cryptography (PKC))

PKC uses a bank of 4 KB SRAM that is also AHB accessible by the CPU and the DMA engine

On-Chip Memory

Up to 256 kB on-chip flash program memory with flash accelerator, 8 kB low-power cache and 512 byte page erase and write
Up to 128 kB total SRAM consisting of 16 kB SRAM on code bus, 112 kB SRAM on system bus (112 kB is contiguous)

112 kB has Parity and 16 kB ECC SRAM

Security Features

Arm TrustZone® enabled
PRINCE module for real-time encryption of data being written to off-chip flash and decryption of encrypted flash data during read to allow asset protection such as securing application code and enabling secure flash update. External memory can be encrypted and the content being decrypted on-the-fly while the controller is fetching data from the external memory.
AES-256 encryption/decryption engine with keys fed directly from PUF or software supplied key. Supports AES-GMAC mode.
Secure Hash Algorithm (SHA2) module supporting secure boot with a dedicated DMA controller.
Physical unclonable function (PUF) using dedicated SRAM for silicon fingerprint. PUF can generate, store and reconstruct key sizes from 64 bits to 4096 bits; includes hardware for key extraction*
128-bit unique device serial number for identification (UUID)
Secure GPIO
True random number generator (TRNG)
Secure Boot support
Code Watchdog for detecting code flow integrity
Device Identifier Composition Engine (DICE)
On-chip ROM bootloader supports:

Booting of images from on-chip flash and external flash
CRC32 image integrity checking

Flash programming through in system programming (ISP) commands over the following interfaces:

USB0 interfaces using HID Class device
UART interface (Flexcomm 0) with auto baud
High-Speed SPI responder interfaces (Flexcomm 8) using mode 3 (CPOL = 1 and CPHA = 1)
I²C responder interface (Flexcomm 1)
CAN FD ISP

ROM API functions:
- Flash programming API
- Power control API
- OTP programming API
- Protected flash region (PFR) programming
- Secure firmware update API using NXP Secure Boot file format, version 3.1 (SB3 files)
Booting of images from PRINCE encrypted flash regions and IPED encrypted external flash.
NXP Debug Authentication Protocol version 1.0 (RSA-2048), 1.1 (RSA-4096) and version 2.0 (ECDSA-256, UUID in DAR)
Setting a sealed part to Fault Analysis mode through Debug authentication
Dual images (boot latest version) from on-chip flash using remap feature
Loading image to RAM from an external Octal/QuadSPI device.
Booting execute-in-place (XIP) images present on Octal/QuadSPI devices
Dual execute-in-place (XIP) images in Octal/QuadSPI flash through flash address remap feature
Load-to-RAM boot mode from 1-bit SPI flash devices connected to Flexcomm (selectable by PFR) as normal boot option and recovery boot option
USB Device DFU Connection (device only)
Code read protection (CRP) on non-secure devices
Crystal-less USB ISP Device mode
Secure Boot support:

RSASSA-PKCS1-v1_5 signature of SHA256 digest as cryptographic signature verification
RSA-2048 bit public keys (2048-bit modulus, 32-bit exponent)
RSA-4096 bit public keys (4096-bit modulus, 32-bit exponent)

Serial Interfaces

The FlexComm interface contains up to eight serial peripherals. Each FlexComm interface can be selected by software to be a USART, SPI, I²C and I²S interface. A variety of clocking options are available to each Flexcomm Interface, including a shared fractional baud-rate generator and time-out feature. Flexcomm interfaces 0 to 5 each provide one channel pair of I²S and Flexcomm interfaces 6 to 7 each provide four channel pairs of I²S.
I²C-bus interfaces support Fast-mode and Fast-mode Plus with data rates of up to 1 Mbit/s and with multiple address recognition and monitor modes. Two sets of true I²C pads also support high-speed mode (3.4 Mbit/s) as a responder
High-speed SPI (Flexcomm 8, 50 MHz for both controller and responder)
A digital microphone interface supporting up to two channels with associated decimators and voice activation detect. One pair of channels can be streamed directly to I²S. The DMIC supports DMA.
One I³C bus interface
One CAN FD module with dedicated DMA controller
USB 2.0 full speed host/device controller with on-chip PHY and dedicated DMA controller supporting crystal-less operation in device mode

Digital Peripherals

DMA0 controller with 52 channels and up to 53 programmable triggers, able to access all memories and DMA-capable peripherals
DMA1 controller with 16 channels and up to 25 programmable triggers, able to access all memories and DMA-capable peripherals
CRC engine block can calculate a CRC on supplied data using one of three standard polynomials with DMA support
Up to 66 general-purpose input/output (GPIO) pins
GPIO registers are located on the AHB for fast access; the DMA supports GPIO ports
Up to eight GPIOs can be selected as pin interrupts (PINT), triggered by rising, falling or both input edges
Two GPIO grouped interrupts (GINT) enable an interrupt based on a logical (AND/OR) combination of input states
I/O pin configuration with support for up to 16 function options
FlexSPI flash interface for external flash with 8 kB cache and dynamic decryption for execute-in-place and supports DMA. The FlexSPI includes 1 port: high-speed channel A, which supports quad or octal operation. Support dual image via address remapping.
Two AOI (AND/OR/Invert) combinatorial logic modules with a dedicated set of input and output signals; each AOI has 4 outputs that feed to different peripheral muxes to individual peripherals

Analog Peripherals

Four single-ended 16-bit or two-differential input ADCs (selectable) with sample rate of 2.0 Msamples/sec in 16-bit mode and 3.13 Msamples/sec in 12-bit mode. Eight differential channel pairs (or 16 single-ended channels), with multiple internal and external trigger inputs. The ADC supports four simultaneous conversions, under the control of two independent sequences
Integrated temperature sensor connected to both ADCs
One comparator in an always-on domain with up to four input pins and internal reference voltage; can be used as a wake-up source from low-power modes
Three high-speed comparators with up to five input pins and internal reference voltage
Three 12-bit DACs with sample rates of up to 1.0 Msamples/sec
Three OpAmps with programmable VREF
Programmable VREF

Motor Control Subsystems

2x FlexPWM with 4 submodules, providing 12 PWM outputs and 2 Quadrature Encoder/Decoder (QEI).

Timers

Five 32-bit standard general-purpose asynchronous timers/counters, which support up to four capture inputs and four compare outputs; specific timer events can be selected to generate DMA requests
One SCTimer/PWM with eight input and ten output functions (including 16 capture and match). Inputs and outputs can be routed to or from external pins and internally to or from selected peripherals. Internally, the SCTimer/PWM supports 16 match/captures, 16 events, 32 states and a Dither engine for improved average resolution of pulse edges.
32-bit real-time clock (RTC) with calendar feature and 1 s resolution running in the always-on power domain A timer in the RTC can be used for wake-up from all low-power modes including deep power-down with 1 ms resolution. The RTC is clocked by the 32 kHz FRO or 32.768 kHz external crystal.
Multiple-channel multirate 24-bit timer (MRT) for repetitive interrupt generation at up to four programmable, fixed rates
Windowed watchdog timer (WWDT) with FRO 1 MHz as a clock source
Micro-tick timer running from the watchdog oscillator can be used to wake up the device from sleep and deep-sleep modes; includes 4 capture registers with pin inputs
Code Watchdog for detecting code flow integrity
42-bit free running OS timer as a continuous timebase for the system, available in any reduced power modes. It has a selectable clock source. When a 32 kHz clock is selected, allow a count period of more than 4 years

Clock Generation

Internal Free Running Oscillator (FRO). This oscillator provides a selectable 96 MHz output, and a 12 MHz output (divided down from the selected higher frequency) that can be used as a system clock. The FRO is trimmed to +/- 1% accuracy over the entire voltage and 0 C to 85 C. The FRO is trimmed to +/- 2% accuracy over the entire voltage and -40 C to 105 C.
32 kHz internal free Running oscillator FRO, which is trimmed to +/- 2% accuracy over the entire voltage and temperature range
Internal low-power oscillator (FRO 1 MHz) trimmed to +/- 15% accuracy over the entire voltage and temperature range
Crystal oscillator with an operating frequency of 12 MHz to 32 MHz; option for external clock input (bypass mode) for clock frequencies of up to 25 MHz
Crystal oscillator with 32.768 kHz operating frequency
PLL0 and PLL1 allow CPU operation up to the maximum CPU rate without the need for a high-frequency external clock. PLL0 and PLL1 can run from the internal FRO 12 MHz output, the external oscillator, internal FRO 1 MHz output, or the 32.768 kHz RTC oscillator
Clock output function with divider to monitor internal clocks
Frequency measurement unit for measuring the frequency of any on-chip or off-chip clock signal
Each crystal oscillator has one embedded capacitor bank, where each can be used as an integrated load capacitor for the crystal oscillators. Using APIs, the capacitor banks on each crystal pin can tune the frequency for crystals with a capacitive Load (CL) leading to conserving board space and reducing costs.

Power-Saving Modes

Integrated power management Unit (PMU) to minimize power consumption
Low power modes: sleep, deep-sleep with RAM retention, power-down with RAM retention and CPU retention and deep power-down with RAM retention.
Configurable wake-up options from peripheral interrupts
The Micro-Tick Timer running from the watchdog oscillator, and the Real-Time Clock (RTC) running from the 32.678 kHz clock, can be used to wake up the device from sleep, deep-sleep, power-down and deep power-down modes
Power-on reset (POR)
Brown-out-detect (BOD) for external VDD_MAIN and internal VDD_CORE with separate thresholds for interrupt and forced reset

Additional Information

Operating from an internal DC-DC converter or selectable LDO such that DC-DC converter can be bypassed
Single power supply 1.8 V to 3.6 V
Two main IO supplies (VDDIO_1: 1.8 V to 3.6 V, VDDIO_2: 1.08 V to 3.6 V)
Separate VBAT supply 1.71 V to 3.6 V.
JTAG boundary scan supported
Operating temperature range -40 °C to +105 °C
Available in HLQFP100, HTQFP64 and HVQFN48 packages

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Design Resources

Design Files

Quick reference to our design files types.

1-5of 11 design files

Receive the full breakdown. See the product footprint and more in the eCad file.

Models
LPC553x/LPC55S3x IBIS Model files

ZIPRev 2.0Aug 15, 2023 15:58:0011.1 MBLPC553x_LPC55S3x_IBIS
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Models
LPC553x/LPC55S3x BSDL Files

ZIPRev 1.0Feb 7, 2022 16:12:0028.5 KBLPC553x_LPC55S3x_BSDL
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Symbols and Footprints
Symbols and Footprints for LPC5536JBD100

BXLRev 1Nov 8, 2022 14:10:00125.2 KBLPC5536JBD100
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Symbols and Footprints
LPC55S3x/LPC553x BXL Files

ZIPRev 1.2Nov 17, 2022 14:10:00710.0 KBLPC55S3x-LPC553x_BXL
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Symbols and Footprints
Symbols and Footprints for LPC5534JBD64

BXLRev 2Nov 17, 2022 14:10:00233.1 KBLPC5534JBD64
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Symbols and Footprints
Symbols and Footprints for LPC5536JBD64

BXLRev 2Nov 17, 2022 14:10:0095.7 KBLPC5536JBD64
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Symbols and Footprints
Symbols and Footprints for LPC55S36JBD100

BXLRev 2Nov 17, 2022 14:10:00125.2 KBLPC55S36JBD100
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Symbols and Footprints
Symbols and Footprints for LPC5536JHI48

BXLRev 2Nov 17, 2022 14:10:00215.8 KBLPC5536JHI48
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Symbols and Footprints
Symbols and Footprints for LPC5534JBD100

BXLRev 1Nov 8, 2022 14:10:00306.6 KBLPC5534JBD100
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Symbols and Footprints
Symbols and Footprints for LPC55S36JHI48

BXLRev 1Nov 8, 2022 14:10:00215.9 KBLPC55S36JHI48
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Symbols and Footprints
Symbols and Footprints for LPC5534JHI48

BXLRev 1Nov 8, 2022 14:10:00215.8 KBLPC5534JHI48
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Show All

Hardware

Quick reference to our board types.

1-5 of 12 hardware offerings

Evaluation and Development Boards
LPCXpresso55S36 Development BoardFeatured

LPCXpresso55S36
Evaluation and Development Boards

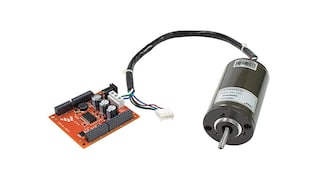

NXP^® Freedom Development Platform for Low-Voltage, 3-Phase BLDC Motor ControlFeatured

FRDM-MC-LVBLDC
Evaluation and Development Boards
Low-Voltage, 3-Phase Motor for FRDM platformFeatured

FRDM-MC-LVMTR
Additional hardware available. View our featured partner solutions.
Emulators, Probes, and Programmers
Universal Multilink Development Interface

UMultilink
Emulators, Probes, and Programmers
MCU-Link Debug Probe

MCU-LINK
Emulators, Probes, and Programmers
Universal Multilink FX High-Speed Development Interface

U-MULTILINK-FX
Emulators, Probes, and Programmers
PEmicro Cyclone programmer

CYCLONE
Emulators, Probes, and Programmers
PEmicro Cyclone FX programmer

CYCLONE-FX
Emulators, Probes, and Programmers
MCU-Link Pro Debug Probe

MCU-LINK-PRO
Evaluation and Development Boards
High-Voltage Development Platform

HVP-MC3PH
Evaluation and Development Boards
MCU-LINK-MR Debug Probe with USB-C, Serial and Mobile Robotics Interfaces

MCU-LINK-MR
Reference Design

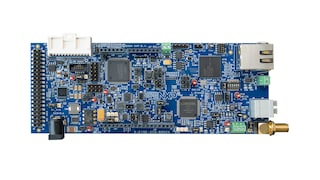

EasyEVSE EV Charging Signal Board

EVSE-SIG-BRD

Show All

1-5 of 10 hardware offerings

Test Accessories and Debugger
Flasher Secure

Flasher Secure is a mass production programming system, capable of protecting the vendor’s IP regardless of the production site. It provides full control over the program...

By SEGGER Microcontroller GmbH Gold Partner
Test Accessories and Debugger
Flasher Compact

Flasher Compact is the compact twin to the Flasher PRO, primarily designed for installation into production rigs or automated test equipment (ATE) where production space ...

By SEGGER Microcontroller GmbH Gold Partner
Test Accessories and Debugger
Flasher Portable PLUS

Flasher Portable PLUS is an extremely portable flash programmer, specifically designed to meet the needs of production-grade flash programming in the field.

By SEGGER Microcontroller GmbH Gold Partner
Test Accessories and Debugger
J-Link PRO PoE

J-Link PRO PoE is a specialized programming / debug probe for creating test farms. It can draw power via Ethernet and supplies power to the target either via debug interf...

By SEGGER Microcontroller GmbH Gold Partner
Test Accessories and Debugger
J-Link PRO

J-Link PRO is an enhanced version of the SEGGER J-Link. This emulator supports ARM/Cortex devices. This has an Ethernet interface in addition to the USB interface. This ...

By SEGGER Microcontroller GmbH Gold Partner
Test Accessories and Debugger
Flasher Hub-12

The Flasher Hub-12 controls up to 12 Flasher Compacts so that they program simultaneously, creating a powerful gang programmer for efficient high-speed parallel programmi...

By SEGGER Microcontroller GmbH Gold Partner
Test Accessories and Debugger
J-Link EDU Mini

The J-Link EDU Mini is a stripped-down, budget-friendly model of the J-Link debug probe created for educational use. Even with its reduced size, it maintains most J-Link ...

By SEGGER Microcontroller GmbH Gold Partner
Test Accessories and Debugger
Flasher PRO

Flasher PRO is SEGGER’s “almost-anything” flash programmer for microcontrollers, SoCs, and (Q)SPI flashes.

By SEGGER Microcontroller GmbH Gold Partner
Test Accessories and Debugger
Flasher ATE

Flasher ATE is perfectly suited for high volume mass production environments.

By SEGGER Microcontroller GmbH Gold Partner
Test Accessories and Debugger
J-Link ULTRA+

The J-Link ULTRA+ is three times faster than the industry standard J-Link, at a 3 MBytes/s download speed to RAM. It comes complete with J-Flash, and Unlimited Flash Brea...

By SEGGER Microcontroller GmbH Gold Partner
