Digital Signal Controllers for Auto and Industrial Applications

56F8335_8135 Active

NXP® 56F8335 and 56F8135 digital signal controllers belong to the 56800E core-based DSC family. They combine digital signal processing and microcontroller functionalities on a single chip, with a flexible set of peripherals.

  • On-chip integration and ease of implementation help to speed development, lower component count, and significantly reduce system cost
  • Simplifies designs while promoting compliance with safety regulations
  • Supported by robust development tools to simplify and accelerate time-to-market

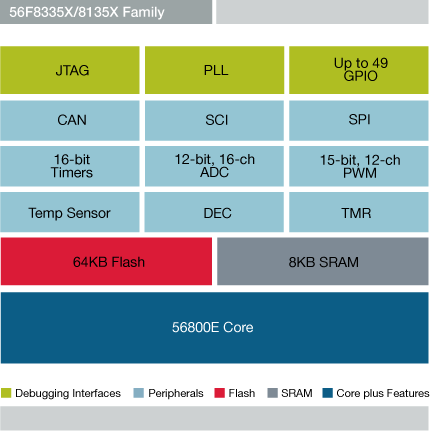

Block Diagram

56F8335/8135 Digital Signal Controller

NXP<sup>&#174;</sup> 56F8335/8135 Digital Signal Controller Block Diagram
Get diagram PDF

Features

  • On-chip memory includes high-speed volatile and nonvolatile components:
    • 64 KB of program Flash
    • 4 KB of program RAM (8335 device)
    • 8 KB of data Flash (8335 device)
    • 8 KB of data RAM
    • 8 KB of boot Flash
  • Up to 60 MIPS at 60 MHz execution frequency
  • JTAG/EOnCE for unobtrusive real-time debugging
  • Temperature sensor
  • FlexCAN module
  • EEPROM emulation capability
  • Four 12-bit ADCs
  • Two serial communication interfaces (SCIs)
  • Up to two serial peripheral interfaces (SPIs)
  • Two dedicated external interrupt pins
  • Integrated low-voltage interrupt module
  • TTL-compatible digital inputs

Buy/Parametrics

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSP56F8335_8135en 57 Application Note Application Note t789 14 Application Note Software Application Note Software t783 1 Data Sheet Data Sheet t520 2 Errata Errata t522 2 Fact Sheet Fact Sheet t523 4 Reference Manual Reference Manual t877 1 Selector Guide Selector Guide t528 14 Training Presentation Training Presentation t878 9 User Guide User Guide t792 8 White Paper White Paper t530 2 en_US 5 1 5 English The 56F8335 and 56F8135 are members of the 56800E core-based family of controllers. The devices include many peripherals that are especially useful for motion control, smart appliances, steppers, encoders, tachometers, limit switches, power supply and control, automotive control (56F8335 only), engine management, noise suppression, remote utility metering, industrial control for power, lighting, and automation applications. 1120074512372706514742 PSP 892.9 KB None None documents None 1120074512372706514742 /docs/en/data-sheet/MC56F8335.pdf 892854 /docs/en/data-sheet/MC56F8335.pdf MC56F8335 N 2005-06-29 56F8335 / 56F8135 Technical Data - Data Sheet /docs/en/data-sheet/MC56F8335.pdf /docs/en/data-sheet/MC56F8335.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf en Jan 31, 2007 Data Sheet t520 Data Sheet Data Sheet Y N 56F8335 / 56F8135 Technical Data - Data Sheet 2 0 English The 56F8100 and 56F8300 series are based on the 56800E digital signal controller core that utilizes a Harvard architecture consisting of three execution units operating in parallel, allowing as many as six operations per instruction cycle. 1120246764722704875422 PSP 105.2 KB None None documents None 1120246764722704875422 /docs/en/fact-sheet/56F8135FS.pdf 105165 /docs/en/fact-sheet/56F8135FS.pdf 56F8135FS N 2005-07-01 56F8135 Fact Sheet /docs/en/fact-sheet/56F8135FS.pdf /docs/en/fact-sheet/56F8135FS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf en Jun 30, 2005 Fact Sheet t523 Fact Sheet Fact Sheet N N 56F8135 Fact Sheet 3 0 English The 56F8300 series executes code from its third-generation flash at up to 60 MIPS (millions of instructions per second) in demanding industrial and automotive environments. This device supports applications such as: Automotive control and Industrial control/connectivity. 1120246766680715993542 PSP 110.3 KB None None documents None 1120246766680715993542 /docs/en/fact-sheet/56F8335FS.pdf 110298 /docs/en/fact-sheet/56F8335FS.pdf 56F8335FS N 2005-07-01 56F8335 - Fact Sheet /docs/en/fact-sheet/56F8335FS.pdf /docs/en/fact-sheet/56F8335FS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf en Jun 30, 2005 Fact Sheet t523 Fact Sheet Fact Sheet Y N 56F8335 - Fact Sheet 4 1 English The 56F8300/56F8100 Demonstration Kit includes a demonstration board that uses the 60 MIPS 56F8323 digital signal controller with on-chip oscillator to illustrate the enhanced capabilities of the 56F8300/56F8100 Series. To demonstrate some typical 56F8300/56F8100 applications in which processing power must be combined with remote sensing capabilities, the MC56F8300DSK integrates NXP&#8217;s MC33794 e-field sensor. 1127491890104720415466 PSP 183.6 KB None None documents None 1127491890104720415466 /docs/en/fact-sheet/56F8300DEMOFS.pdf 183600 /docs/en/fact-sheet/56F8300DEMOFS.pdf 56F8300DEMOFS N 2005-09-23 56F8300/56F8100 Demonstration Kit - Fact Sheet /docs/en/fact-sheet/56F8300DEMOFS.pdf /docs/en/fact-sheet/56F8300DEMOFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf en May 30, 2005 Fact Sheet t523 Fact Sheet Fact Sheet Y N 56F8300/56F8100 Demonstration Kit - Fact Sheet 5 3 English This manual describes the central processing unit of the DSP56800E and DSP56800EX in detail. The 32-bit DSP56800EX core represents the next step in the evolution of NXP&#8217;s families of digital signal controllers (DSCs). The DSP56800EX core extends the capabilities of the DSP56800E core architecture. Both the DSP56800EX and DSP56800E cores provide low-cost, low-power computing, combining DSC power and parallelism with MCU-like programming simplicity. C968463319800 PSP 8.9 MB Registration without Disclaimer None documents Extended C968463319800 /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf 8861960 /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf DSP56800ERM Y N 2016-10-31 DSP56800E and DSP56800EX - Reference Manual /webapp/Download?colCode=DSP56800ERM /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf Reference Manual N Y 500633505221135046 2022-12-07 pdf Y en Sep 22, 2011 Reference Manual t877 Reference Manual Reference Manual Y N DSP56800E and DSP56800EX - Reference Manual false en_US en Data Sheet Data Sheet 1 6 1 English MC56F834x/833x Addendum 1655884499773741462878 PSP 146.9 KB None None documents None 1655884499773741462878 /docs/en/data-sheet/MC56F833xDSAD.pdf 146903 /docs/en/data-sheet/MC56F833xDSAD.pdf MC56F834x/833xAddendum documents N N 2022-06-22 MC56F834x/833x Addendum: MC56F834x/833x Processor Supplement Datasheet /docs/en/data-sheet/MC56F833xDSAD.pdf /docs/en/data-sheet/MC56F833xDSAD.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en Jun 21, 2022 980000996212993340 Data Sheet Y N MC56F834x/833x Addendum: MC56F834x/833x Processor Supplement Datasheet Application Note Application Note 14 7 1.0 English AN4824, The NXP DSC Flasher is a stand-alone flash programmer for the MC56F8xxx family of Digital Signal Controller products. It is meant as an alternative to the CodeWarrior Flash Programmer that is integrated within the CodeWarrior development tool. 1383694760468710465910 PSP 53.3 MB Registration With Click-Thru Software Licensing Agreement 0yqyQpfQ documents Extended 1383694760468710465910 /secured/assets/documents/en/application-note/AN4824SW.zip 53275751 /secured/assets/documents/en/application-note/AN4824SW.zip AN4824SW documents Y N 2016-10-31 Software files for AN4824 Freescale DSC Flasher /webapp/Download?colCode=AN4824SW&appType=license /secured/assets/documents/en/application-note/AN4824SW.zip Application Note N 645036621402383989 2024-08-28 zip Y en Jul 14, 2014 645036621402383989 Application Note Y N Software files for AN4824 Freescale DSC Flasher 8 0 English AN4824, The NXP DSC Flasher is a stand-alone flash programmer for the MC56F8xxx family of Digital Signal Controller products. It is meant as an alternative to the CodeWarrior Flash Programmer that is integrated within the CodeWarrior development tool. 1383694360052702070622 PSP 860.8 KB None None documents None 1383694360052702070622 /docs/en/application-note/AN4824.pdf 860786 /docs/en/application-note/AN4824.pdf AN4824 documents N N 2013-11-05 AN4824, NXP<sup>&#174;</sup> DSC Flasher - Application Note /docs/en/application-note/AN4824.pdf /docs/en/application-note/AN4824.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Nov 5, 2013 645036621402383989 Application Note N N AN4824, NXP<sup>&#174;</sup> DSC Flasher - Application Note 9 0 English This Application Note describes one way to perform the non-blocking communication on the I2C bus and provides c-code example for an I2C controller 1382425896639685691413 PSP 671.4 KB None None documents None 1382425896639685691413 /docs/en/application-note/AN4803.pdf 671393 /docs/en/application-note/AN4803.pdf AN4803 documents N N 2016-10-31 I2C non-blocking communication /docs/en/application-note/AN4803.pdf /docs/en/application-note/AN4803.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 21, 2013 645036621402383989 Application Note Y N I2C non-blocking communication 10 0 English Explaining how to add the FreeMASTER serial driver software to the embedded application and configure it. The FreeMASTER serial driver is a piece of code that enables an embedded application to communicate with the FreeMASTER PC application. 1370013855832696188368 PSP 2.2 MB Registration without Disclaimer None documents Extended 1370013855832696188368 /secured/assets/documents/en/application-note/AN4752.pdf 2220944 /secured/assets/documents/en/application-note/AN4752.pdf AN4752 documents Y N 2016-10-31 AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note /webapp/Download?colCode=AN4752 /secured/assets/documents/en/application-note/AN4752.pdf Application Note N 645036621402383989 2024-07-15 pdf Y en May 31, 2013 645036621402383989 Application Note Y N AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note 11 0 English Presenting the use of the Rational ClearCase version control system in CodeWarrior 10.3. It lists the files needed to maintain the project and describes how to install, set up, use, and uninstall the ClearCase plugin in CodeWarrior 10.3. The ClearCase plugin enables you to check files in and out directly from within CodeWarrior, making the work more effective. 1369937932059742568603 PSP 477.3 KB None None documents None 1369937932059742568603 /docs/en/application-note/AN4753.pdf 477314 /docs/en/application-note/AN4753.pdf AN4753 documents N N 2016-10-31 AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note /docs/en/application-note/AN4753.pdf /docs/en/application-note/AN4753.pdf Application Note N 645036621402383989 2024-07-15 pdf N en May 30, 2013 645036621402383989 Application Note Y N AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note 12 0 English This Application Note focuses on the introduction and description of the Embedded Software and Motor Control Libraries 1349298868720722973654 PSP 246.8 KB Registration without Disclaimer None documents Extended 1349298868720722973654 /secured/assets/documents/en/application-note/AN4611.pdf 246845 /secured/assets/documents/en/application-note/AN4611.pdf AN4611 documents Y N 2016-10-31 Freescale Embedded Software and Motor Control libraries /webapp/Download?colCode=AN4611 /secured/assets/documents/en/application-note/AN4611.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Sep 14, 2012 645036621402383989 Application Note Y N Freescale Embedded Software and Motor Control libraries 13 0 English This application note deals with the step-by-step guide how to quickly and easily include the FSLESL into an empty project and to reduce the necessary time of the user to study how to do&#13;&#10;that. 1346755334507726943483 PSP 962.9 KB None None documents None 1346755334507726943483 /docs/en/application-note/AN4586.pdf 962878 /docs/en/application-note/AN4586.pdf AN4586 documents N N 2012-09-04 Inclusion of DSC NXP<sup>&#174;</sup> Embedded Software Libraries in CodeWarrior<sup>&#174;</sup> 10.2 /docs/en/application-note/AN4586.pdf /docs/en/application-note/AN4586.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Sep 4, 2012 645036621402383989 Application Note Y N Inclusion of DSC NXP<sup>&#174;</sup> Embedded Software Libraries in CodeWarrior<sup>&#174;</sup> 10.2 14 0 English AN3312SW.zip /docs/en/application-note-software/AN3312SW.zip /webapp/sps/download/license.jsp?colCode=AN3312SW&docLang=en AN3312: A PC-CAN card is a useful tool for debugging and/or upgrading firmware via the CAN bus. The DSC 56F83xx family offers a dedicated flash block (boot flash block) for bootloader, which commonly uses asynchronous communication protocol such as SCI, SPI, and CAN bus to reduce hardware wires. This document guides you in configuring the 56F8346 FlexCAN module for CAN bus communication. 1161009815505727855254 PSP 707.2 KB None None documents None 1161009815505727855254 /docs/en/application-note/AN3312.pdf 707185 /docs/en/application-note/AN3312.pdf AN3312 documents N 2006-10-16 AN3312, CAN Bus Bootloader for DSC 56F83xx Family - Application Notes /docs/en/application-note/AN3312.pdf /docs/en/application-note/AN3312.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 16, 2006 645036621402383989 Application Note Y N AN3312, CAN Bus Bootloader for DSC 56F83xx Family - Application Notes 15 0 Chinese 1154642043490702298521zh PSP 1.0 MB None None documents None 1154642043490702298521 /docs/zh/application-note/AN3301.pdf 1008598 /docs/zh/application-note/AN3301.pdf AN3301 documents N 2006-08-03 AN3301, Design of a PMSM Servo System Using the 56F8357 Device - Application Notes /docs/zh/application-note/AN3301.pdf /docs/zh/application-note/AN3301.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N AN3301，使用56F8357器件设计PMSM伺服系统 - 应用说明 0 English AN3301: A servo system is commonly used in a positioning application which requires high instantaneous torque response, lower torque ripple, a wide adjustable speed range and excellent speed regulation, such as NC machine tools, industrial robots, and other automated (printing, packaging, food, and textile) equipment. 1154642043490702298521 PSP 1.0 MB None None documents None 1154642043490702298521 /docs/en/application-note/AN3301.pdf 1008598 /docs/en/application-note/AN3301.pdf AN3301 documents N 2006-08-03 AN3301, Design of a PMSM Servo System Using the 56F8357 Device - Application Notes /docs/en/application-note/AN3301.pdf /docs/en/application-note/AN3301.pdf Application Note N 645036621402383989 2022-12-07 pdf en Aug 3, 2006 645036621402383989 Application Note Y N AN3301, Design of a PMSM Servo System Using the 56F8357 Device - Application Notes 16 3 Chinese U993580316788zh PSP 252.5 KB None None documents None U993580316788 /docs/zh/application-note/AN1916.pdf 252515 /docs/zh/application-note/AN1916.pdf AN1916 documents N N 2016-10-31 3-Phase BLDC Motor Control with Hall Sensors Using 56800/E Digital Signal Controllers /docs/zh/application-note/AN1916.pdf /docs/zh/application-note/AN1916.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N 使用56800/E数字信号控制器实现带霍尔传感器的3相无刷直流电机控制 3 English 3-Phase BLDC Motor Control with Hall Sensors Using 56800/E Digital Signal Controllers U993580316788 PSP 252.5 KB None None documents None U993580316788 /docs/en/application-note/AN1916.pdf 252515 /docs/en/application-note/AN1916.pdf AN1916 documents N N 2016-10-31 3-Phase BLDC Motor Control with Hall Sensors Using 56800/E Digital Signal Controllers /docs/en/application-note/AN1916.pdf /docs/en/application-note/AN1916.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Nov 11, 2005 645036621402383989 Application Note Y N 3-Phase BLDC Motor Control with Hall Sensors Using 56800/E Digital Signal Controllers 17 1 English This document describes the design of an Indirect Power Factor Correction (PFC) application. It is based on Our 56F800/E controllers, which are ideal for&#13;&#10;motor control applications.&#13;&#10; 1073597832087704012595 PSP 728.0 KB None None documents None 1073597832087704012595 /docs/en/application-note/AN1965.pdf 727979 /docs/en/application-note/AN1965.pdf AN1965 documents N 2004-01-08 AN1965 Design of Indirect Power factor Correction Using the 56F800/E /docs/en/application-note/AN1965.pdf /docs/en/application-note/AN1965.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jul 29, 2005 645036621402383989 Application Note Y N AN1965 Design of Indirect Power factor Correction Using the 56F800/E 18 0 English One of the benefits of the using Code Warrior with Processor Expert<sup>&#174;</sup> for NXP&#8217;s family of processors is its flexibility. Code Warrior provides Stationery (templates) to address different memory configurations. However, templates to address new product hardware may be required and can be developed using tools in CodeWarrior. This document details the steps required to create a new build target. 1063315964244695375471 PSP 358.4 KB None None documents None 1063315964244695375471 /docs/en/application-note/AN1975.pdf 358398 /docs/en/application-note/AN1975.pdf AN1975 documents N 2003-09-11 Multiple Target Features Using Processor Expert<sup>&#174;</sup> and CodeWarrior<sup>&#174;</sup> /docs/en/application-note/AN1975.pdf /docs/en/application-note/AN1975.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jul 29, 2005 645036621402383989 Application Note Y N Multiple Target Features Using Processor Expert<sup>&#174;</sup> and CodeWarrior<sup>&#174;</sup> 19 1 English This document provides general information that will help in porting code from the HCS12/16 microcontroller cores to the&#13;&#10;higher-performance 56800/E cores. The 56800/E hybrid controllers provide a migration path for microcontrollers requiring additional resources and/or signal processing functionality, while maintaining the ease of MCU programmability. 1071605184328718044286 PSP 347.4 KB None None documents None 1071605184328718044286 /docs/en/application-note/AN1983.pdf 347353 /docs/en/application-note/AN1983.pdf AN1983 documents N 2003-12-16 HCS12/16 to 56800/E Software Porting Considerations /docs/en/application-note/AN1983.pdf /docs/en/application-note/AN1983.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jul 29, 2005 645036621402383989 Application Note N N HCS12/16 to 56800/E Software Porting Considerations 20 0 English The DSP56800E&#8217;s DSP core architecture represents the next step in the evolution of NXP&#8217;s 16-bit DSP56800 Family of digital signal processors. It maintains compatibility with the DSP56800 while&#13;&#10;improving performance and adding new features. I989439208142 PSP 293.6 KB None None documents None I989439208142 /docs/en/application-note/AN2095.pdf 293560 /docs/en/application-note/AN2095.pdf AN2095 documents N 2001-05-09 AN2095 Porting and Optimizing DSP56800 Applications to DSP56800E /docs/en/application-note/AN2095.pdf /docs/en/application-note/AN2095.pdf Application Note N 645036621402383989 2022-12-07 pdf en Apr 1, 2001 645036621402383989 Application Note Y N AN2095 Porting and Optimizing DSP56800 Applications to DSP56800E User Guide User Guide 8 21 10 English Features of the 56F8300 Series of 16-bit hybrid controllers are described in this&#13;&#10;preliminary manual release. Peripheral modules are documented here. 1063939252940725704521 PSP 6.4 MB None None documents None 1063939252940725704521 /docs/en/user-guide/MC56F8300UM.pdf 6375187 /docs/en/user-guide/MC56F8300UM.pdf MC56F8300UM.PDF documents N 2003-09-18 56F8300 Peripheral User Manual /docs/en/user-guide/MC56F8300UM.pdf /docs/en/user-guide/MC56F8300UM.pdf User Guide N 132339537837198660 2022-12-07 pdf en Oct 3, 2007 132339537837198660 User Guide Y N 56F8300 Peripheral User Manual 22 0 English The 56800E Flash Programmer provides a means to program the on-chip Flash of the 56800E DSC family. The Flash Memory blocks are programmed in circuit, using the JTAG/EOnCE interface. The 56800E Flash Programmer runs under a 32-bit Windows environment on PC compatible computers. A Parallel Command Converter or CodeWarrior USB TAP is needed to provide the interface between the JTAG/OnCE interface of the target system and the computer. 1128116417222721579465 PSP 578.2 KB None None documents None 1128116417222721579465 /docs/en/user-guide/56800EFPUG.pdf 578182 /docs/en/user-guide/56800EFPUG.pdf 56800EFPUG documents N 2005-09-30 56800E Flash Programmer - User's Guide /docs/en/user-guide/56800EFPUG.pdf /docs/en/user-guide/56800EFPUG.pdf User Guide N 132339537837198660 2023-06-19 pdf en Sep 30, 2005 132339537837198660 User Guide Y N 56800E Flash Programmer - User's Guide 23 6 English The Bootloaders for the 56F83xx devices were developed to load and run a users application by parsing an S-Record file, then copying the parsed S-Record file into the appropriate Program and Data memory. 1063667863511715880310 PSP 923.8 KB None None documents None 1063667863511715880310 /docs/en/user-guide/MC56F83XXBLUM.pdf 923768 /docs/en/user-guide/MC56F83XXBLUM.pdf MC56F83XXBLUM documents N 2003-09-15 56F83xx SCI/CAN Bootloader User Manual /docs/en/user-guide/MC56F83XXBLUM.pdf /docs/en/user-guide/MC56F83XXBLUM.pdf User Guide N 132339537837198660 2023-06-18 pdf en Sep 29, 2005 132339537837198660 User Guide Y N 56F83xx SCI/CAN Bootloader User Manual 24 0 English This application exercises vector control of the 3-phase AC Induction Motor (ACIM) using Processor Expert (PE), a 56F8346, 56F8357, or 56F8367 EVM board, and 3-phase AC / BLDC High-Voltage (HV) power stage. 1110386460707727677584 PSP 561.6 KB None None documents None 1110386460707727677584 /docs/en/user-guide/8300ACVCTD.pdf 561604 /docs/en/user-guide/8300ACVCTD.pdf 8300ACVCTD documents N 2005-03-09 Targeting manual 3ph ACIM Vector Control.fm /docs/en/user-guide/8300ACVCTD.pdf /docs/en/user-guide/8300ACVCTD.pdf User Guide N 132339537837198660 2023-06-19 pdf en Feb 28, 2005 132339537837198660 User Guide N N Targeting manual 3ph ACIM Vector Control.fm 25 0 English This application exercises sensorless control of the 3-phase Switched Reluctance Motor (SRM) using Processor Expert<sup>&#174;</sup> (PE), a 56F8346, 56F8357, or 56F8367 EVM boards, and a 3-phase SR High-Voltage (HV) Power Stage. 1110385757119694519948 PSP 573.9 KB None None documents None 1110385757119694519948 /docs/en/user-guide/8300SRMxxTD.pdf 573878 /docs/en/user-guide/8300SRMxxTD.pdf 8300SRMXXTD documents N 2005-03-09 Targeting manual 3ph SRM Sensorless Control.fm /docs/en/user-guide/8300SRMxxTD.pdf /docs/en/user-guide/8300SRMxxTD.pdf User Guide N 132339537837198660 2023-06-19 pdf en Feb 28, 2005 132339537837198660 User Guide N N Targeting manual 3ph SRM Sensorless Control.fm 26 0 English This application exercises control of a 3-phase Switched Reluctance Motor (SRM) with Hall Sensors, using Processor Expert<sup>&#174;</sup> (PE), a 56F8346, 56F8357 or 56F8367 EVM board and a 3-phase SRM highvoltage power stage. 1110386464785711164368 PSP 662.3 KB None None documents None 1110386464785711164368 /docs/en/user-guide/8300SRMHSTD.pdf 662259 /docs/en/user-guide/8300SRMHSTD.pdf 8300SRMHSTD documents N 2005-03-09 Targeting manual 3ph SRM Hall Sensor Control.fm /docs/en/user-guide/8300SRMHSTD.pdf /docs/en/user-guide/8300SRMHSTD.pdf User Guide N 132339537837198660 2023-06-19 pdf en Feb 28, 2005 132339537837198660 User Guide N N Targeting manual 3ph SRM Hall Sensor Control.fm 27 0 English This application exercises vector control of the 3-Phase Permanent Magnet Synchronous Motor (PMSM) using Processor Expert<sup>&#174;</sup> (PE), a 56F8346, 56F8357, or 56F8367 EVM board and a 3-Phase AC / BLDC High-Voltage Power Stage. 1110386462872718893639 PSP 575.1 KB None None documents None 1110386462872718893639 /docs/en/user-guide/8300PMSMTD.pdf 575098 /docs/en/user-guide/8300PMSMTD.pdf 8300PMSMTD documents N 2005-03-09 Targeting manual 3ph PMSM Vector Control.fm /docs/en/user-guide/8300PMSMTD.pdf /docs/en/user-guide/8300PMSMTD.pdf User Guide N 132339537837198660 2023-06-19 pdf en Jan 28, 2005 132339537837198660 User Guide N N Targeting manual 3ph PMSM Vector Control.fm 28 0 English Unless otherwise noted, the term "56F8300/56F8100" refers to the 56F834x/56F814x, 56F835x/56F815x and 56F836x/56F816x devices only. There are several perspectives to take when considering issues which arise when porting code from the 56F807 to any of the 56F8300/56F8100 devices. This document will view the memory map as a distinguishing feature and therefore, devices will be described using the generic part number (such as 56F834x) in most cases. 1105036294505701294207 PSP 3.6 MB None None documents None 1105036294505701294207 /docs/en/user-guide/8300PUG.pdf 3619989 /docs/en/user-guide/8300PUG.pdf 8300PUG documents N 2005-01-06 56F807 to 56F8300/56F8100 Porting - User's Guide /docs/en/user-guide/8300PUG.pdf /docs/en/user-guide/8300PUG.pdf User Guide N 132339537837198660 2023-06-19 pdf en Dec 30, 2004 132339537837198660 User Guide Y N 56F807 to 56F8300/56F8100 Porting - User's Guide Application Note Software Application Note Software 1 29 0 English 1161009819246714713641 PSP 4.9 MB Click-Thru Software Licensing Agreement-No Registration 1395958162559706127527 documents None 1161009819246714713641 /docs/en/application-note-software/AN3312SW.zip 4925905 /docs/en/application-note-software/AN3312SW.zip AN3312SW documents N 2016-10-31 CAN Bus Bootloader for DSC 56F83xx Family Software /webapp/sps/download/license.jsp?colCode=AN3312SW /docs/en/application-note-software/AN3312SW.zip Application Note Software N 789425793691620447 2023-10-11 zip en Oct 16, 2006 789425793691620447 Application Note Software N CAN Bus Bootloader for DSC 56F83xx Family Software Errata Errata 2 30 5 English This document reports errata information on chip revision C. Errata numbers are in the form n.m, where n is the number of the errata item and m identifies the document revision number. Chip Revision C Errata Information: The following errata items apply only to Revision C 56F8335 devices. 1120001890376702781410 PSP 74.7 KB None None documents None 1120001890376702781410 /docs/en/errata/MC56F8335E.pdf 74745 /docs/en/errata/MC56F8335E.pdf MC56F8335E documents N 2005-06-28 56F8335 Digital Signal Controller: Preliminary Chip Errata - Errata /docs/en/errata/MC56F8335E.pdf /docs/en/errata/MC56F8335E.pdf Errata N 155452329886410597 2022-12-07 pdf en Aug 4, 2010 155452329886410597 Errata Y N 56F8335 Digital Signal Controller: Preliminary Chip Errata - Errata 31 2 English This document reports errata information on chip revisions 1120001888444717178749 PSP 231.2 KB None None documents None 1120001888444717178749 /docs/en/errata/MC56F8135E.pdf 231167 /docs/en/errata/MC56F8135E.pdf MC56F8135E documents N 2005-06-28 MC56F8135 Chip Errata /docs/en/errata/MC56F8135E.pdf /docs/en/errata/MC56F8135E.pdf Errata N 155452329886410597 2022-12-07 pdf en Jul 6, 2009 155452329886410597 Errata N N MC56F8135 Chip Errata Fact Sheet Fact Sheet 1 32 2 English NXP Semiconductors&#8217;s comprehensive&#13;&#10;processor evaluation kits provide a great out-of-box experience, containing the tools&#13;&#10;required to quickly begin processor evaluation. 1127491882691729462068 PSP 129.2 KB None None documents None 1127491882691729462068 /docs/en/fact-sheet/56800-EDEVFS.pdf 129211 /docs/en/fact-sheet/56800-EDEVFS.pdf 56800-EDEVFS documents N N 2016-10-31 56F800, 56F8300/8100, 56F8000 and 56850 Series Hardware Development Tools /docs/en/fact-sheet/56800-EDEVFS.pdf /docs/en/fact-sheet/56800-EDEVFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf N en May 30, 2005 736675474163315314 Fact Sheet Y N 56F800, 56F8300/8100, 56F8000 and 56850 Series Hardware Development Tools Training Presentation Training Presentation 9 33 0 English SCI Hands-on Exercise for 56800/E Digital Signal Controllers 1131558009438711299366 PSP 3.3 MB None None documents None 1131558009438711299366 /docs/en/supporting-information/56800SCI.pdf 3335342 /docs/en/supporting-information/56800SCI.pdf 56800SCI documents N N 2016-10-31 SCI Hands-on Exercise for 56800/E Digital Signal Controllers /docs/en/supporting-information/56800SCI.pdf /docs/en/supporting-information/56800SCI.pdf Training Presentation N 501713016990820713 2022-12-07 pdf N en Nov 9, 2005 501713016990820713 Training Presentation Y N SCI Hands-on Exercise for 56800/E Digital Signal Controllers 34 0 English PWM to ADC synchronization for 56F83xx/1xx and 56F801x Digital Signal Controllers 1131465254878723969755 PSP 2.0 MB None None documents None 1131465254878723969755 /docs/en/supporting-information/56800PWMADCSYNCH.pdf 1979661 /docs/en/supporting-information/56800PWMADCSYNCH.pdf 56800PWMADCSYNCH documents N 2005-11-08 PWM to ADC synchronization for 56F83xx/1xx and 56F801x Digital Signal Controllers /docs/en/supporting-information/56800PWMADCSYNCH.pdf /docs/en/supporting-information/56800PWMADCSYNCH.pdf Training Presentation N 501713016990820713 2022-12-07 pdf en Nov 8, 2005 501713016990820713 Training Presentation Y N PWM to ADC synchronization for 56F83xx/1xx and 56F801x Digital Signal Controllers 35 1 English Open up a CAN with 56800/E Digital Signal Controllers 1128375910692715303963 PSP 1.4 MB None None documents None 1128375910692715303963 /docs/en/supporting-information/ECS04W54.pdf 1362829 /docs/en/supporting-information/ECS04W54.pdf ECS04W54 documents N 2005-10-03 Embedded Connectivity Summit 2004 - Open up a CAN with 56800/E Digital Signal Controllers /docs/en/supporting-information/ECS04W54.pdf /docs/en/supporting-information/ECS04W54.pdf Training Presentation N 501713016990820713 2023-06-18 pdf en Nov 2, 2005 501713016990820713 Training Presentation Y N Embedded Connectivity Summit 2004 - Open up a CAN with 56800/E Digital Signal Controllers 36 0 English 1128375904386718648439 PSP 1.1 MB None None documents None 1128375904386718648439 /docs/en/supporting-information/ECS04P37.pdf 1073913 /docs/en/supporting-information/ECS04P37.pdf ECS04P37 documents N N 2016-10-31 Embedded Connectivity Summit 2004 - Low-Cost Modem Applications and Implementations Using the 56F8300 /docs/en/supporting-information/ECS04P37.pdf /docs/en/supporting-information/ECS04P37.pdf Training Presentation N 501713016990820713 2023-06-18 pdf N en Oct 3, 2005 501713016990820713 Training Presentation Y N Embedded Connectivity Summit 2004 - Low-Cost Modem Applications and Implementations Using the 56F8300 37 0 English FlexRay Protocol Overview and Applications Demonstration with 56F8300 1128375902252714709118 PSP 1.3 MB None None documents None 1128375902252714709118 /docs/en/supporting-information/ECS04P32.pdf 1263402 /docs/en/supporting-information/ECS04P32.pdf ECS04P32 documents N N 2016-10-31 Embedded Connectivity Summit 2004 - FlexRay Protocol Overview and Applications Demonstration with 56F8300 /docs/en/supporting-information/ECS04P32.pdf /docs/en/supporting-information/ECS04P32.pdf Training Presentation N 501713016990820713 2023-06-18 pdf N en Oct 3, 2005 501713016990820713 Training Presentation Y N Embedded Connectivity Summit 2004 - FlexRay Protocol Overview and Applications Demonstration with 56F8300 38 0 English 1128375893841724508566 PSP 1.6 MB None None documents None 1128375893841724508566 /docs/en/supporting-information/ECS04D76.pdf 1609688 /docs/en/supporting-information/ECS04D76.pdf ECS04D76 documents N N 2016-10-31 Embedded Connectivity Summit 2004 - Getting Started with CodeWarrior™ Tools /docs/en/supporting-information/ECS04D76.pdf /docs/en/supporting-information/ECS04D76.pdf Training Presentation N 501713016990820713 2023-06-18 pdf N en Oct 3, 2005 501713016990820713 Training Presentation Y N Embedded Connectivity Summit 2004 - Getting Started with CodeWarrior™ Tools 39 0 English 1128375891764705093646 PSP 1.3 MB None None documents None 1128375891764705093646 /docs/en/supporting-information/ECS04D74.pdf 1337633 /docs/en/supporting-information/ECS04D74.pdf ECS04D74 documents N N 2016-10-31 Embedded Connectivity Summit 2004 - Efficient C for 56800/E Digital Signal Controllers /docs/en/supporting-information/ECS04D74.pdf /docs/en/supporting-information/ECS04D74.pdf Training Presentation N 501713016990820713 2023-06-18 pdf N en Oct 3, 2005 501713016990820713 Training Presentation Y N Embedded Connectivity Summit 2004 - Efficient C for 56800/E Digital Signal Controllers 40 0 English Hands-Free and Feature Phone Applications for the Industrial and Commercial Markets Using the 56800/E Digital Signal Controllers 1128375895935701756441 PSP 974.2 KB None None documents None 1128375895935701756441 /docs/en/supporting-information/ECS04M95.pdf 974201 /docs/en/supporting-information/ECS04M95.pdf ECS04M95 documents N N 2016-10-31 Embedded Connectivity Summit 2004 - Hands-Free and Feature Phone Applications for the Industrial and Commercial Markets Using the 56800/E Digital Signal Controllers /docs/en/supporting-information/ECS04M95.pdf /docs/en/supporting-information/ECS04M95.pdf Training Presentation N 501713016990820713 2022-12-07 pdf N en Oct 27, 2004 501713016990820713 Training Presentation Y N Embedded Connectivity Summit 2004 - Hands-Free and Feature Phone Applications for the Industrial and Commercial Markets Using the 56800/E Digital Signal Controllers 41 0 English 56800/E Digital Signal Controllers in Connectivity Applications 1128372770391721916525 PSP 2.2 MB None None documents None 1128372770391721916525 /docs/en/supporting-information/ECS04W65.pdf 2212253 /docs/en/supporting-information/ECS04W65.pdf ECS04W65 documents N N 2016-10-31 Embedded Connectivity Summit 2004 - 56800/E Digital Signal Controllers in Connectivity Applications /docs/en/supporting-information/ECS04W65.pdf /docs/en/supporting-information/ECS04W65.pdf Training Presentation N 501713016990820713 2023-06-18 pdf N en Sep 22, 2004 501713016990820713 Training Presentation Y N Embedded Connectivity Summit 2004 - 56800/E Digital Signal Controllers in Connectivity Applications Selector Guide Selector Guide 14 42 0 English Digital Signal Processors and Controller, Quarter 2, 2009, SG1004Q22009 L1010004267257 PSP 1.1 MB None None documents None L1010004267257 /docs/en/product-selector-guide/SG1004.pdf 1146625 /docs/en/product-selector-guide/SG1004.pdf SG1004Q22009 documents N N 2016-10-31 Digital Signal Processors and Controllers, SG1004 /docs/en/product-selector-guide/SG1004.pdf /docs/en/product-selector-guide/SG1004.pdf Selector Guide N 553557935274807777 2022-12-07 pdf N en Apr 17, 2009 553557935274807777 Selector Guide Y N Digital Signal Processors and Controllers, SG1004 43 3 English Electromechanical braking systems (EMB), also called brake by-wire, replace conventional hydraulic braking systems with a completely ?dry? electrical component systems by replacing conventional actuators with electric motor-driven units. 10bWcyXM PSP 174.9 KB None None documents None 10bWcyXM /docs/en/product-selector-guide/SG2008.pdf 174859 /docs/en/product-selector-guide/SG2008.pdf SG2008 documents N 2003-07-28 ARCHIVED - SG2008 Electromechanical Braking (Brake By-Wire) /docs/en/product-selector-guide/SG2008.pdf /docs/en/product-selector-guide/SG2008.pdf Selector Guide N 553557935274807777 2022-12-07 pdf en Jul 5, 2005 553557935274807777 Selector Guide Y N ARCHIVED - SG2008 Electromechanical Braking (Brake By-Wire) 44 3 English The cost of a personal electrocardiogram (ECG) monitor can be reduced through use of new technologies that incorporate a digital signal processor (DSP) into one device. Z1024935231423 PSP 171.1 KB None None documents None Z1024935231423 /docs/en/product-selector-guide/SG2079.pdf 171124 /docs/en/product-selector-guide/SG2079.pdf SG2079 documents N 2002-06-24 ARCHIVED - SG2079 Personal Electrocardiogram (ECG) Monitor /docs/en/product-selector-guide/SG2079.pdf /docs/en/product-selector-guide/SG2079.pdf Selector Guide N 553557935274807777 2022-12-07 pdf en Jul 5, 2005 553557935274807777 Selector Guide Y N ARCHIVED - SG2079 Personal Electrocardiogram (ECG) Monitor 45 3 English A &#8220;by-wire&#8221; denotes a control system that replaces traditional mechanical or hydraulic linkages with electronic connections between control units that drive electromechanical actuators. Originally used in the aerospace industry, by-wire technology is making its way into the ground transportation sector. Automotive by-wire includes three categories: throttle by-wire, steer by-wire, and brake by-wire 10bY1Rnr PSP 171.1 KB None None documents None 10bY1Rnr /docs/en/product-selector-guide/SG2031.pdf 171063 /docs/en/product-selector-guide/SG2031.pdf SG2031 documents N 2002-12-16 ARCHIVED - SG2031 By-Wire /docs/en/product-selector-guide/SG2031.pdf /docs/en/product-selector-guide/SG2031.pdf Selector Guide N 553557935274807777 2022-12-07 pdf en Jul 5, 2005 553557935274807777 Selector Guide Y N ARCHIVED - SG2031 By-Wire 46 3 English In recent years, the increasing power and ease of use of digital signal processors (DSPs) have made them a viable alternative in a variety of applications that previously used low-cost 8- and 16-bit microcontrollers. G1024935241154 PSP 202.0 KB None None documents None G1024935241154 /docs/en/product-selector-guide/SG2082.pdf 201998 /docs/en/product-selector-guide/SG2082.pdf SG2082 documents N 2003-07-28 ARCHIVED - SG2082 One DSP Controlling Two Robot Manipulators /docs/en/product-selector-guide/SG2082.pdf /docs/en/product-selector-guide/SG2082.pdf Selector Guide N 553557935274807777 2022-12-07 pdf en Jul 5, 2005 553557935274807777 Selector Guide Y N ARCHIVED - SG2082 One DSP Controlling Two Robot Manipulators 47 2 English The main purpose of an Uninterruptable Power Supply (UPS) is to provide clean and stable power to a load, regardless of power grid conditions such as black-outs. 1089307491166726381441 PSP 159.7 KB None None documents None 1089307491166726381441 /docs/en/product-selector-guide/SG2095.pdf 159722 /docs/en/product-selector-guide/SG2095.pdf SG2095 documents N N 2016-10-31 ARCHIVED - SG2095 Network-Enabled High-Performance UPS /docs/en/product-selector-guide/SG2095.pdf /docs/en/product-selector-guide/SG2095.pdf Selector Guide N 553557935274807777 2022-12-07 pdf N en Jul 5, 2005 553557935274807777 Selector Guide Y N ARCHIVED - SG2095 Network-Enabled High-Performance UPS 48 2 English Combining the 56F8300 high-performance controllers with today?s low-cost sensor technology makes traditionally high-cost intelligent sensor systems much more affordable. 1088456691711732863531 PSP 132.5 KB None None documents None 1088456691711732863531 /docs/en/product-selector-guide/SG2016.pdf 132460 /docs/en/product-selector-guide/SG2016.pdf SG2016 documents N 2004-06-28 ARCHIVED - SG2016 Inertial Sensor for Steering/Traction Control /docs/en/product-selector-guide/SG2016.pdf /docs/en/product-selector-guide/SG2016.pdf Selector Guide N 553557935274807777 2022-12-07 pdf en Jul 5, 2005 553557935274807777 Selector Guide N N ARCHIVED - SG2016 Inertial Sensor for Steering/Traction Control 49 2 English Remote monitoring of buildings, such as summer homes, is a valuable activity which can be enabled with the NXP Semiconductors MC56F8322. 1088463773526723303158 PSP 162.9 KB None None documents None 1088463773526723303158 /docs/en/product-selector-guide/SG2049.pdf 162938 /docs/en/product-selector-guide/SG2049.pdf SG2049 documents N 2004-06-28 ARCHIVED - SG2049 Building Monitoring System with Voice /docs/en/product-selector-guide/SG2049.pdf /docs/en/product-selector-guide/SG2049.pdf Selector Guide N 553557935274807777 2022-12-07 pdf en Jul 5, 2005 553557935274807777 Selector Guide N N ARCHIVED - SG2049 Building Monitoring System with Voice 50 2 English Electromechanical braking systems (EMB), also known as brake by-wire, replace conventional actuators with electrical motordriven units to connect the four braking ?corners? to the pedal and to each other. 1088456006266700718055 PSP 151.9 KB None None documents None 1088456006266700718055 /docs/en/product-selector-guide/SG2014.pdf 151926 /docs/en/product-selector-guide/SG2014.pdf SG2014 documents N 2004-06-28 ARCHIVED - SG2014 Electromechanical Braking Utilizing FlexRay /docs/en/product-selector-guide/SG2014.pdf /docs/en/product-selector-guide/SG2014.pdf Selector Guide N 553557935274807777 2022-12-07 pdf en Jul 5, 2005 553557935274807777 Selector Guide Y N ARCHIVED - SG2014 Electromechanical Braking Utilizing FlexRay 51 4 English An uninterruptable power supply (UPS) system provides backup power supply for an application in the event of an electrical outage. M1024935212560 PSP 189.8 KB None None documents None M1024935212560 /docs/en/product-selector-guide/SG2070.pdf 189795 /docs/en/product-selector-guide/SG2070.pdf SG2070 documents N 2003-07-28 ARCHIVED - SG2070 Uninterruptable Power Supply (UPS) /docs/en/product-selector-guide/SG2070.pdf /docs/en/product-selector-guide/SG2070.pdf Selector Guide N 553557935274807777 2022-12-07 pdf en Jul 5, 2005 553557935274807777 Selector Guide Y N ARCHIVED - SG2070 Uninterruptable Power Supply (UPS) 52 3 English Control of a device with voice commands is now possible using an architecture that combines a microcontroller (MCU) with a digital signal processor (DSP). D1028235269025 PSP 191.5 KB None None documents None D1028235269025 /docs/en/product-selector-guide/SG2041.pdf 191496 /docs/en/product-selector-guide/SG2041.pdf SG2041 documents N 2003-07-28 ARCHIVED - SG2041 Home Appliances Voice Control /docs/en/product-selector-guide/SG2041.pdf /docs/en/product-selector-guide/SG2041.pdf Selector Guide N 553557935274807777 2022-12-07 pdf en Jul 5, 2005 553557935274807777 Selector Guide Y N ARCHIVED - SG2041 Home Appliances Voice Control 53 5 English The controller area network (CAN) is a serial, asynchronous, multicommander communication protocol for connecting electronic control modules in automotive and industrial applications. CAN was designed for applications needing high-level data integrity and data rates of up to 1 Mbit/s. Z1024950375357 PSP 218.7 KB None None documents None Z1024950375357 /docs/en/product-selector-guide/SG2096.pdf 218657 /docs/en/product-selector-guide/SG2096.pdf SG2096 documents N N 2016-10-31 ARCHIVED - SG2096 Industrial Controller Area Network (CAN) Applications /docs/en/product-selector-guide/SG2096.pdf /docs/en/product-selector-guide/SG2096.pdf Selector Guide N 553557935274807777 2022-12-07 pdf N en Jun 30, 2005 553557935274807777 Selector Guide Y N ARCHIVED - SG2096 Industrial Controller Area Network (CAN) Applications 54 3 English Use of hybrid architecture combining an MPC5xx microcontroller unit (MCU) and two to three TouCAN? modules can be used in applications from toys to industrial manufacturing. Each node on a robotic arm application has a stand alone functioning module designed to enable modular construction, leading to adaptable robotic arms. H1024935222201 PSP 194.2 KB None None documents None H1024935222201 /docs/en/product-selector-guide/SG2076.pdf 194169 /docs/en/product-selector-guide/SG2076.pdf SG2076 documents N N 2016-10-31 ARCHIVED - SG2076 Robotic Arm /docs/en/product-selector-guide/SG2076.pdf /docs/en/product-selector-guide/SG2076.pdf Selector Guide N 553557935274807777 2022-12-07 pdf N en Jun 30, 2005 553557935274807777 Selector Guide Y N ARCHIVED - SG2076 Robotic Arm 55 3 English Industry demand for precise electronic control of actuators underscores the need for sophisticated controllers that can deliver high performance at a reasonable price. To meet today?s application demands for precise actuator control from both position and dynamic points of view, an actuator system requires a cost-effective controller with the flexibility and speed to process complex control algorithms. T1024935250163 PSP 206.0 KB None None documents None T1024935250163 /docs/en/product-selector-guide/SG2083.pdf 206008 /docs/en/product-selector-guide/SG2083.pdf SG2083 documents N 2002-06-24 ARCHIVED - SG2083 Electromagnetic Actuator Control /docs/en/product-selector-guide/SG2083.pdf /docs/en/product-selector-guide/SG2083.pdf Selector Guide N 553557935274807777 2022-12-07 pdf en Jun 30, 2005 553557935274807777 Selector Guide Y N ARCHIVED - SG2083 Electromagnetic Actuator Control White Paper White Paper 2 56 1 English 1063316957683718386603 PSP 125.6 KB None None documents None 1063316957683718386603 /docs/en/white-paper/EEPROMFLASH.pdf 125568 /docs/en/white-paper/EEPROMFLASH.pdf EEPROMFLASH documents N 2003-09-18 56F83xx Lends Hybrid Applications EEPROM Capability FlashEE /docs/en/white-paper/EEPROMFLASH.pdf /docs/en/white-paper/EEPROMFLASH.pdf White Paper N 918633085541740938 2022-12-07 pdf en Jul 27, 2005 918633085541740938 White Paper N N 56F83xx Lends Hybrid Applications EEPROM Capability FlashEE 57 0 English Motorola hybrid and microcontrollers have a long and distinguished history in industrial and control applications. 1068587446891714924507 PSP 730.1 KB None None documents None 1068587446891714924507 /docs/en/white-paper/WP5683XX_1.pdf 730075 /docs/en/white-paper/WP5683XX_1.pdf WP5683XX_1 documents N 2003-11-11 56F8300 Benefits in Industrial Applications /docs/en/white-paper/WP5683XX_1.pdf /docs/en/white-paper/WP5683XX_1.pdf White Paper N 918633085541740938 2022-12-07 pdf en Sep 1, 2003 918633085541740938 White Paper N N 56F8300 Benefits in Industrial Applications false 0 56F8335_8135 downloads en true 1 Y PSP Application Note 14 /secured/assets/documents/en/application-note/AN4824SW.zip 2016-10-31 1383694760468710465910 PSP 7 Jul 14, 2014 Application Note AN4824, The NXP DSC Flasher is a stand-alone flash programmer for the MC56F8xxx family of Digital Signal Controller products. It is meant as an alternative to the CodeWarrior Flash Programmer that is integrated within the CodeWarrior development tool. Registration With Click-Thru Software Licensing Agreement /secured/assets/documents/en/application-note/AN4824SW.zip English documents 53275751 0yqyQpfQ 645036621402383989 2024-08-28 Y /webapp/Download?colCode=AN4824SW&appType=license Software files for AN4824 Freescale DSC Flasher /secured/assets/documents/en/application-note/AN4824SW.zip documents 645036621402383989 Application Note N en Extended Y zip 1.0 Y N Software files for AN4824 Freescale DSC Flasher 53.3 MB AN4824SW N 1383694760468710465910 /docs/en/application-note/AN4824.pdf 2013-11-05 1383694360052702070622 PSP 8 Nov 5, 2013 Application Note AN4824, The NXP DSC Flasher is a stand-alone flash programmer for the MC56F8xxx family of Digital Signal Controller products. It is meant as an alternative to the CodeWarrior Flash Programmer that is integrated within the CodeWarrior development tool. None /docs/en/application-note/AN4824.pdf English documents 860786 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4824.pdf AN4824, NXP<sup>&#174;</sup> DSC Flasher - Application Note /docs/en/application-note/AN4824.pdf documents 645036621402383989 Application Note N en None N pdf 0 N N AN4824, NXP<sup>&#174;</sup> DSC Flasher - Application Note 860.8 KB AN4824 N 1383694360052702070622 /docs/en/application-note/AN4803.pdf 2016-10-31 1382425896639685691413 PSP 9 Oct 21, 2013 Application Note This Application Note describes one way to perform the non-blocking communication on the I2C bus and provides c-code example for an I2C controller None /docs/en/application-note/AN4803.pdf English documents 671393 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4803.pdf I2C non-blocking communication /docs/en/application-note/AN4803.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N I2C non-blocking communication 671.4 KB AN4803 N 1382425896639685691413 /secured/assets/documents/en/application-note/AN4752.pdf 2016-10-31 1370013855832696188368 PSP 10 May 31, 2013 Application Note Explaining how to add the FreeMASTER serial driver software to the embedded application and configure it. The FreeMASTER serial driver is a piece of code that enables an embedded application to communicate with the FreeMASTER PC application. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4752.pdf English documents 2220944 None 645036621402383989 2024-07-15 Y /webapp/Download?colCode=AN4752 AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note /secured/assets/documents/en/application-note/AN4752.pdf documents 645036621402383989 Application Note N en Extended Y pdf 0 Y N AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note 2.2 MB AN4752 N 1370013855832696188368 /docs/en/application-note/AN4753.pdf 2016-10-31 1369937932059742568603 PSP 11 May 30, 2013 Application Note Presenting the use of the Rational ClearCase version control system in CodeWarrior 10.3. It lists the files needed to maintain the project and describes how to install, set up, use, and uninstall the ClearCase plugin in CodeWarrior 10.3. The ClearCase plugin enables you to check files in and out directly from within CodeWarrior, making the work more effective. None /docs/en/application-note/AN4753.pdf English documents 477314 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN4753.pdf AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note /docs/en/application-note/AN4753.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note 477.3 KB AN4753 N 1369937932059742568603 /secured/assets/documents/en/application-note/AN4611.pdf 2016-10-31 1349298868720722973654 PSP 12 Sep 14, 2012 Application Note This Application Note focuses on the introduction and description of the Embedded Software and Motor Control Libraries Registration without Disclaimer /secured/assets/documents/en/application-note/AN4611.pdf English documents 246845 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4611 Freescale Embedded Software and Motor Control libraries /secured/assets/documents/en/application-note/AN4611.pdf documents 645036621402383989 Application Note N en Extended Y pdf 0 Y N Freescale Embedded Software and Motor Control libraries 246.8 KB AN4611 N 1349298868720722973654 /docs/en/application-note/AN4586.pdf 2012-09-04 1346755334507726943483 PSP 13 Sep 4, 2012 Application Note This application note deals with the step-by-step guide how to quickly and easily include the FSLESL into an empty project and to reduce the necessary time of the user to study how to do&#13;&#10;that. None /docs/en/application-note/AN4586.pdf English documents 962878 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4586.pdf Inclusion of DSC NXP<sup>&#174;</sup> Embedded Software Libraries in CodeWarrior<sup>&#174;</sup> 10.2 /docs/en/application-note/AN4586.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Inclusion of DSC NXP<sup>&#174;</sup> Embedded Software Libraries in CodeWarrior<sup>&#174;</sup> 10.2 962.9 KB AN4586 N 1346755334507726943483 /docs/en/application-note/AN3312.pdf 2006-10-16 1161009815505727855254 PSP 14 Oct 16, 2006 Application Note AN3312: A PC-CAN card is a useful tool for debugging and/or upgrading firmware via the CAN bus. The DSC 56F83xx family offers a dedicated flash block (boot flash block) for bootloader, which commonly uses asynchronous communication protocol such as SCI, SPI, and CAN bus to reduce hardware wires. This document guides you in configuring the 56F8346 FlexCAN module for CAN bus communication. None /docs/en/application-note/AN3312.pdf English documents 707185 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3312.pdf AN3312, CAN Bus Bootloader for DSC 56F83xx Family - Application Notes /docs/en/application-note/AN3312.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N AN3312, CAN Bus Bootloader for DSC 56F83xx Family - Application Notes 707.2 KB AN3312 N 1161009815505727855254 /docs/en/application-note/AN3301.pdf 2006-08-03 1154642043490702298521 PSP 15 Aug 3, 2006 Application Note AN3301: A servo system is commonly used in a positioning application which requires high instantaneous torque response, lower torque ripple, a wide adjustable speed range and excellent speed regulation, such as NC machine tools, industrial robots, and other automated (printing, packaging, food, and textile) equipment. None /docs/en/application-note/AN3301.pdf English documents 1008598 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3301.pdf AN3301, Design of a PMSM Servo System Using the 56F8357 Device - Application Notes /docs/en/application-note/AN3301.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N AN3301, Design of a PMSM Servo System Using the 56F8357 Device - Application Notes 1.0 MB AN3301 N 1154642043490702298521 /docs/en/application-note/AN1916.pdf 2016-10-31 U993580316788 PSP 16 Nov 11, 2005 Application Note 3-Phase BLDC Motor Control with Hall Sensors Using 56800/E Digital Signal Controllers None /docs/en/application-note/AN1916.pdf English documents 252515 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN1916.pdf 3-Phase BLDC Motor Control with Hall Sensors Using 56800/E Digital Signal Controllers /docs/en/application-note/AN1916.pdf documents 645036621402383989 Application Note N en None Y pdf 3 N N 3-Phase BLDC Motor Control with Hall Sensors Using 56800/E Digital Signal Controllers 252.5 KB AN1916 N U993580316788 /docs/en/application-note/AN1965.pdf 2004-01-08 1073597832087704012595 PSP 17 Jul 29, 2005 Application Note This document describes the design of an Indirect Power Factor Correction (PFC) application. It is based on Our 56F800/E controllers, which are ideal for&#13;&#10;motor control applications.&#13;&#10; None /docs/en/application-note/AN1965.pdf English documents 727979 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1965.pdf AN1965 Design of Indirect Power factor Correction Using the 56F800/E /docs/en/application-note/AN1965.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N AN1965 Design of Indirect Power factor Correction Using the 56F800/E 728.0 KB AN1965 N 1073597832087704012595 /docs/en/application-note/AN1975.pdf 2003-09-11 1063315964244695375471 PSP 18 Jul 29, 2005 Application Note One of the benefits of the using Code Warrior with Processor Expert<sup>&#174;</sup> for NXP&#8217;s family of processors is its flexibility. Code Warrior provides Stationery (templates) to address different memory configurations. However, templates to address new product hardware may be required and can be developed using tools in CodeWarrior. This document details the steps required to create a new build target. None /docs/en/application-note/AN1975.pdf English documents 358398 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1975.pdf Multiple Target Features Using Processor Expert<sup>&#174;</sup> and CodeWarrior<sup>&#174;</sup> /docs/en/application-note/AN1975.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Multiple Target Features Using Processor Expert<sup>&#174;</sup> and CodeWarrior<sup>&#174;</sup> 358.4 KB AN1975 N 1063315964244695375471 /docs/en/application-note/AN1983.pdf 2003-12-16 1071605184328718044286 PSP 19 Jul 29, 2005 Application Note This document provides general information that will help in porting code from the HCS12/16 microcontroller cores to the&#13;&#10;higher-performance 56800/E cores. The 56800/E hybrid controllers provide a migration path for microcontrollers requiring additional resources and/or signal processing functionality, while maintaining the ease of MCU programmability. None /docs/en/application-note/AN1983.pdf English documents 347353 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1983.pdf HCS12/16 to 56800/E Software Porting Considerations /docs/en/application-note/AN1983.pdf documents 645036621402383989 Application Note N en None N pdf 1 N HCS12/16 to 56800/E Software Porting Considerations 347.4 KB AN1983 N 1071605184328718044286 /docs/en/application-note/AN2095.pdf 2001-05-09 I989439208142 PSP 20 Apr 1, 2001 Application Note The DSP56800E&#8217;s DSP core architecture represents the next step in the evolution of NXP&#8217;s 16-bit DSP56800 Family of digital signal processors. It maintains compatibility with the DSP56800 while&#13;&#10;improving performance and adding new features. None /docs/en/application-note/AN2095.pdf English documents 293560 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2095.pdf AN2095 Porting and Optimizing DSP56800 Applications to DSP56800E /docs/en/application-note/AN2095.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N AN2095 Porting and Optimizing DSP56800 Applications to DSP56800E 293.6 KB AN2095 N I989439208142 Application Note Software 1 /docs/en/application-note-software/AN3312SW.zip 2016-10-31 1161009819246714713641 PSP 29 Oct 16, 2006 Application Note Software Click-Thru Software Licensing Agreement-No Registration /docs/en/application-note-software/AN3312SW.zip English documents 4925905 1395958162559706127527 789425793691620447 2023-10-11 /webapp/sps/download/license.jsp?colCode=AN3312SW CAN Bus Bootloader for DSC 56F83xx Family Software /docs/en/application-note-software/AN3312SW.zip documents 789425793691620447 Application Note Software N en None zip 0 N CAN Bus Bootloader for DSC 56F83xx Family Software 4.9 MB AN3312SW N 1161009819246714713641 Data Sheet 2 /docs/en/data-sheet/MC56F833xDSAD.pdf 2022-06-22 1655884499773741462878 PSP 6 Jun 21, 2022 Data Sheet MC56F834x/833x Addendum None /docs/en/data-sheet/MC56F833xDSAD.pdf English documents 146903 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/MC56F833xDSAD.pdf MC56F834x/833x Addendum: MC56F834x/833x Processor Supplement Datasheet /docs/en/data-sheet/MC56F833xDSAD.pdf documents 980000996212993340 Data Sheet N en None Y pdf 1 N N MC56F834x/833x Addendum: MC56F834x/833x Processor Supplement Datasheet 146.9 KB MC56F834x/833xAddendum N 1655884499773741462878 /docs/en/data-sheet/MC56F8335.pdf 2005-06-29 1120074512372706514742 PSP 1 Jan 31, 2007 Data Sheet Data Sheet The 56F8335 and 56F8135 are members of the 56800E core-based family of controllers. The devices include many peripherals that are especially useful for motion control, smart appliances, steppers, encoders, tachometers, limit switches, power supply and control, automotive control (56F8335 only), engine management, noise suppression, remote utility metering, industrial control for power, lighting, and automation applications. None /docs/en/data-sheet/MC56F8335.pdf English 892854 None Data Sheet 2022-12-07 /docs/en/data-sheet/MC56F8335.pdf 56F8335 / 56F8135 Technical Data - Data Sheet /docs/en/data-sheet/MC56F8335.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 5 N 56F8335 / 56F8135 Technical Data - Data Sheet 892.9 KB MC56F8335 N 1120074512372706514742 Errata 2 /docs/en/errata/MC56F8335E.pdf 2005-06-28 1120001890376702781410 PSP 30 Aug 4, 2010 Errata This document reports errata information on chip revision C. Errata numbers are in the form n.m, where n is the number of the errata item and m identifies the document revision number. Chip Revision C Errata Information: The following errata items apply only to Revision C 56F8335 devices. None /docs/en/errata/MC56F8335E.pdf English documents 74745 None 155452329886410597 2022-12-07 /docs/en/errata/MC56F8335E.pdf 56F8335 Digital Signal Controller: Preliminary Chip Errata - Errata /docs/en/errata/MC56F8335E.pdf documents 155452329886410597 Errata N en None Y pdf 5 N 56F8335 Digital Signal Controller: Preliminary Chip Errata - Errata 74.7 KB MC56F8335E N 1120001890376702781410 /docs/en/errata/MC56F8135E.pdf 2005-06-28 1120001888444717178749 PSP 31 Jul 6, 2009 Errata This document reports errata information on chip revisions None /docs/en/errata/MC56F8135E.pdf English documents 231167 None 155452329886410597 2022-12-07 /docs/en/errata/MC56F8135E.pdf MC56F8135 Chip Errata /docs/en/errata/MC56F8135E.pdf documents 155452329886410597 Errata N en None N pdf 2 N MC56F8135 Chip Errata 231.2 KB MC56F8135E N 1120001888444717178749 Fact Sheet 4 /docs/en/fact-sheet/56800-EDEVFS.pdf 2016-10-31 1127491882691729462068 PSP 32 May 30, 2005 Fact Sheet NXP Semiconductors&#8217;s comprehensive&#13;&#10;processor evaluation kits provide a great out-of-box experience, containing the tools&#13;&#10;required to quickly begin processor evaluation. None /docs/en/fact-sheet/56800-EDEVFS.pdf English documents 129211 None 736675474163315314 2022-12-07 N /docs/en/fact-sheet/56800-EDEVFS.pdf 56F800, 56F8300/8100, 56F8000 and 56850 Series Hardware Development Tools /docs/en/fact-sheet/56800-EDEVFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 2 N N 56F800, 56F8300/8100, 56F8000 and 56850 Series Hardware Development Tools 129.2 KB 56800-EDEVFS N 1127491882691729462068 /docs/en/fact-sheet/56F8135FS.pdf 2005-07-01 1120246764722704875422 PSP 2 Jun 30, 2005 Fact Sheet Fact Sheet The 56F8100 and 56F8300 series are based on the 56800E digital signal controller core that utilizes a Harvard architecture consisting of three execution units operating in parallel, allowing as many as six operations per instruction cycle. None /docs/en/fact-sheet/56F8135FS.pdf English 105165 None Fact Sheet 2022-12-07 /docs/en/fact-sheet/56F8135FS.pdf 56F8135 Fact Sheet /docs/en/fact-sheet/56F8135FS.pdf documents 736675474163315314 Fact Sheet N Y en None N t523 pdf 0 N 56F8135 Fact Sheet 105.2 KB 56F8135FS N 1120246764722704875422 /docs/en/fact-sheet/56F8335FS.pdf 2005-07-01 1120246766680715993542 PSP 3 Jun 30, 2005 Fact Sheet Fact Sheet The 56F8300 series executes code from its third-generation flash at up to 60 MIPS (millions of instructions per second) in demanding industrial and automotive environments. This device supports applications such as: Automotive control and Industrial control/connectivity. None /docs/en/fact-sheet/56F8335FS.pdf English 110298 None Fact Sheet 2022-12-07 /docs/en/fact-sheet/56F8335FS.pdf 56F8335 - Fact Sheet /docs/en/fact-sheet/56F8335FS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 0 N 56F8335 - Fact Sheet 110.3 KB 56F8335FS N 1120246766680715993542 /docs/en/fact-sheet/56F8300DEMOFS.pdf 2005-09-23 1127491890104720415466 PSP 4 May 30, 2005 Fact Sheet Fact Sheet The 56F8300/56F8100 Demonstration Kit includes a demonstration board that uses the 60 MIPS 56F8323 digital signal controller with on-chip oscillator to illustrate the enhanced capabilities of the 56F8300/56F8100 Series. To demonstrate some typical 56F8300/56F8100 applications in which processing power must be combined with remote sensing capabilities, the MC56F8300DSK integrates NXP&#8217;s MC33794 e-field sensor. None /docs/en/fact-sheet/56F8300DEMOFS.pdf English 183600 None Fact Sheet 2022-12-07 /docs/en/fact-sheet/56F8300DEMOFS.pdf 56F8300/56F8100 Demonstration Kit - Fact Sheet /docs/en/fact-sheet/56F8300DEMOFS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 1 N 56F8300/56F8100 Demonstration Kit - Fact Sheet 183.6 KB 56F8300DEMOFS N 1127491890104720415466 Reference Manual 1 /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf 2016-10-31 C968463319800 PSP 5 Sep 22, 2011 Reference Manual Reference Manual This manual describes the central processing unit of the DSP56800E and DSP56800EX in detail. The 32-bit DSP56800EX core represents the next step in the evolution of NXP&#8217;s families of digital signal controllers (DSCs). The DSP56800EX core extends the capabilities of the DSP56800E core architecture. Both the DSP56800EX and DSP56800E cores provide low-cost, low-power computing, combining DSC power and parallelism with MCU-like programming simplicity. Registration without Disclaimer /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf English 8861960 None Reference Manual 2022-12-07 Y /webapp/Download?colCode=DSP56800ERM DSP56800E and DSP56800EX - Reference Manual /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf documents 500633505221135046 Reference Manual N Y en Extended Y t877 pdf 3 Y N DSP56800E and DSP56800EX - Reference Manual 8.9 MB DSP56800ERM N C968463319800 Selector Guide 14 /docs/en/product-selector-guide/SG1004.pdf 2016-10-31 L1010004267257 PSP 42 Apr 17, 2009 Selector Guide Digital Signal Processors and Controller, Quarter 2, 2009, SG1004Q22009 None /docs/en/product-selector-guide/SG1004.pdf English documents 1146625 None 553557935274807777 2022-12-07 N /docs/en/product-selector-guide/SG1004.pdf Digital Signal Processors and Controllers, SG1004 /docs/en/product-selector-guide/SG1004.pdf documents 553557935274807777 Selector Guide N en None Y pdf 0 N N Digital Signal Processors and Controllers, SG1004 1.1 MB SG1004Q22009 N L1010004267257 /docs/en/product-selector-guide/SG2008.pdf 2003-07-28 10bWcyXM PSP 43 Jul 5, 2005 Selector Guide Electromechanical braking systems (EMB), also called brake by-wire, replace conventional hydraulic braking systems with a completely ?dry? electrical component systems by replacing conventional actuators with electric motor-driven units. None /docs/en/product-selector-guide/SG2008.pdf English documents 174859 None 553557935274807777 2022-12-07 /docs/en/product-selector-guide/SG2008.pdf ARCHIVED - SG2008 Electromechanical Braking (Brake By-Wire) /docs/en/product-selector-guide/SG2008.pdf documents 553557935274807777 Selector Guide N en None Y pdf 3 N ARCHIVED - SG2008 Electromechanical Braking (Brake By-Wire) 174.9 KB SG2008 N 10bWcyXM /docs/en/product-selector-guide/SG2079.pdf 2002-06-24 Z1024935231423 PSP 44 Jul 5, 2005 Selector Guide The cost of a personal electrocardiogram (ECG) monitor can be reduced through use of new technologies that incorporate a digital signal processor (DSP) into one device. None /docs/en/product-selector-guide/SG2079.pdf English documents 171124 None 553557935274807777 2022-12-07 /docs/en/product-selector-guide/SG2079.pdf ARCHIVED - SG2079 Personal Electrocardiogram (ECG) Monitor /docs/en/product-selector-guide/SG2079.pdf documents 553557935274807777 Selector Guide N en None Y pdf 3 N ARCHIVED - SG2079 Personal Electrocardiogram (ECG) Monitor 171.1 KB SG2079 N Z1024935231423 /docs/en/product-selector-guide/SG2031.pdf 2002-12-16 10bY1Rnr PSP 45 Jul 5, 2005 Selector Guide A &#8220;by-wire&#8221; denotes a control system that replaces traditional mechanical or hydraulic linkages with electronic connections between control units that drive electromechanical actuators. Originally used in the aerospace industry, by-wire technology is making its way into the ground transportation sector. Automotive by-wire includes three categories: throttle by-wire, steer by-wire, and brake by-wire None /docs/en/product-selector-guide/SG2031.pdf English documents 171063 None 553557935274807777 2022-12-07 /docs/en/product-selector-guide/SG2031.pdf ARCHIVED - SG2031 By-Wire /docs/en/product-selector-guide/SG2031.pdf documents 553557935274807777 Selector Guide N en None Y pdf 3 N ARCHIVED - SG2031 By-Wire 171.1 KB SG2031 N 10bY1Rnr /docs/en/product-selector-guide/SG2082.pdf 2003-07-28 G1024935241154 PSP 46 Jul 5, 2005 Selector Guide In recent years, the increasing power and ease of use of digital signal processors (DSPs) have made them a viable alternative in a variety of applications that previously used low-cost 8- and 16-bit microcontrollers. None /docs/en/product-selector-guide/SG2082.pdf English documents 201998 None 553557935274807777 2022-12-07 /docs/en/product-selector-guide/SG2082.pdf ARCHIVED - SG2082 One DSP Controlling Two Robot Manipulators /docs/en/product-selector-guide/SG2082.pdf documents 553557935274807777 Selector Guide N en None Y pdf 3 N ARCHIVED - SG2082 One DSP Controlling Two Robot Manipulators 202.0 KB SG2082 N G1024935241154 /docs/en/product-selector-guide/SG2095.pdf 2016-10-31 1089307491166726381441 PSP 47 Jul 5, 2005 Selector Guide The main purpose of an Uninterruptable Power Supply (UPS) is to provide clean and stable power to a load, regardless of power grid conditions such as black-outs. None /docs/en/product-selector-guide/SG2095.pdf English documents 159722 None 553557935274807777 2022-12-07 N /docs/en/product-selector-guide/SG2095.pdf ARCHIVED - SG2095 Network-Enabled High-Performance UPS /docs/en/product-selector-guide/SG2095.pdf documents 553557935274807777 Selector Guide N en None Y pdf 2 N N ARCHIVED - SG2095 Network-Enabled High-Performance UPS 159.7 KB SG2095 N 1089307491166726381441 /docs/en/product-selector-guide/SG2016.pdf 2004-06-28 1088456691711732863531 PSP 48 Jul 5, 2005 Selector Guide Combining the 56F8300 high-performance controllers with today?s low-cost sensor technology makes traditionally high-cost intelligent sensor systems much more affordable. None /docs/en/product-selector-guide/SG2016.pdf English documents 132460 None 553557935274807777 2022-12-07 /docs/en/product-selector-guide/SG2016.pdf ARCHIVED - SG2016 Inertial Sensor for Steering/Traction Control /docs/en/product-selector-guide/SG2016.pdf documents 553557935274807777 Selector Guide N en None N pdf 2 N ARCHIVED - SG2016 Inertial Sensor for Steering/Traction Control 132.5 KB SG2016 N 1088456691711732863531 /docs/en/product-selector-guide/SG2049.pdf 2004-06-28 1088463773526723303158 PSP 49 Jul 5, 2005 Selector Guide Remote monitoring of buildings, such as summer homes, is a valuable activity which can be enabled with the NXP Semiconductors MC56F8322. None /docs/en/product-selector-guide/SG2049.pdf English documents 162938 None 553557935274807777 2022-12-07 /docs/en/product-selector-guide/SG2049.pdf ARCHIVED - SG2049 Building Monitoring System with Voice /docs/en/product-selector-guide/SG2049.pdf documents 553557935274807777 Selector Guide N en None N pdf 2 N ARCHIVED - SG2049 Building Monitoring System with Voice 162.9 KB SG2049 N 1088463773526723303158 /docs/en/product-selector-guide/SG2014.pdf 2004-06-28 1088456006266700718055 PSP 50 Jul 5, 2005 Selector Guide Electromechanical braking systems (EMB), also known as brake by-wire, replace conventional actuators with electrical motordriven units to connect the four braking ?corners? to the pedal and to each other. None /docs/en/product-selector-guide/SG2014.pdf English documents 151926 None 553557935274807777 2022-12-07 /docs/en/product-selector-guide/SG2014.pdf ARCHIVED - SG2014 Electromechanical Braking Utilizing FlexRay /docs/en/product-selector-guide/SG2014.pdf documents 553557935274807777 Selector Guide N en None Y pdf 2 N ARCHIVED - SG2014 Electromechanical Braking Utilizing FlexRay 151.9 KB SG2014 N 1088456006266700718055 /docs/en/product-selector-guide/SG2070.pdf 2003-07-28 M1024935212560 PSP 51 Jul 5, 2005 Selector Guide An uninterruptable power supply (UPS) system provides backup power supply for an application in the event of an electrical outage. None /docs/en/product-selector-guide/SG2070.pdf English documents 189795 None 553557935274807777 2022-12-07 /docs/en/product-selector-guide/SG2070.pdf ARCHIVED - SG2070 Uninterruptable Power Supply (UPS) /docs/en/product-selector-guide/SG2070.pdf documents 553557935274807777 Selector Guide N en None Y pdf 4 N ARCHIVED - SG2070 Uninterruptable Power Supply (UPS) 189.8 KB SG2070 N M1024935212560 /docs/en/product-selector-guide/SG2041.pdf 2003-07-28 D1028235269025 PSP 52 Jul 5, 2005 Selector Guide Control of a device with voice commands is now possible using an architecture that combines a microcontroller (MCU) with a digital signal processor (DSP). None /docs/en/product-selector-guide/SG2041.pdf English documents 191496 None 553557935274807777 2022-12-07 /docs/en/product-selector-guide/SG2041.pdf ARCHIVED - SG2041 Home Appliances Voice Control /docs/en/product-selector-guide/SG2041.pdf documents 553557935274807777 Selector Guide N en None Y pdf 3 N ARCHIVED - SG2041 Home Appliances Voice Control 191.5 KB SG2041 N D1028235269025 /docs/en/product-selector-guide/SG2096.pdf 2016-10-31 Z1024950375357 PSP 53 Jun 30, 2005 Selector Guide The controller area network (CAN) is a serial, asynchronous, multicommander communication protocol for connecting electronic control modules in automotive and industrial applications. CAN was designed for applications needing high-level data integrity and data rates of up to 1 Mbit/s. None /docs/en/product-selector-guide/SG2096.pdf English documents 218657 None 553557935274807777 2022-12-07 N /docs/en/product-selector-guide/SG2096.pdf ARCHIVED - SG2096 Industrial Controller Area Network (CAN) Applications /docs/en/product-selector-guide/SG2096.pdf documents 553557935274807777 Selector Guide N en None Y pdf 5 N N ARCHIVED - SG2096 Industrial Controller Area Network (CAN) Applications 218.7 KB SG2096 N Z1024950375357 /docs/en/product-selector-guide/SG2076.pdf 2016-10-31 H1024935222201 PSP 54 Jun 30, 2005 Selector Guide Use of hybrid architecture combining an MPC5xx microcontroller unit (MCU) and two to three TouCAN? modules can be used in applications from toys to industrial manufacturing. Each node on a robotic arm application has a stand alone functioning module designed to enable modular construction, leading to adaptable robotic arms. None /docs/en/product-selector-guide/SG2076.pdf English documents 194169 None 553557935274807777 2022-12-07 N /docs/en/product-selector-guide/SG2076.pdf ARCHIVED - SG2076 Robotic Arm /docs/en/product-selector-guide/SG2076.pdf documents 553557935274807777 Selector Guide N en None Y pdf 3 N N ARCHIVED - SG2076 Robotic Arm 194.2 KB SG2076 N H1024935222201 /docs/en/product-selector-guide/SG2083.pdf 2002-06-24 T1024935250163 PSP 55 Jun 30, 2005 Selector Guide Industry demand for precise electronic control of actuators underscores the need for sophisticated controllers that can deliver high performance at a reasonable price. To meet today?s application demands for precise actuator control from both position and dynamic points of view, an actuator system requires a cost-effective controller with the flexibility and speed to process complex control algorithms. None /docs/en/product-selector-guide/SG2083.pdf English documents 206008 None 553557935274807777 2022-12-07 /docs/en/product-selector-guide/SG2083.pdf ARCHIVED - SG2083 Electromagnetic Actuator Control /docs/en/product-selector-guide/SG2083.pdf documents 553557935274807777 Selector Guide N en None Y pdf 3 N ARCHIVED - SG2083 Electromagnetic Actuator Control 206.0 KB SG2083 N T1024935250163 Training Presentation 9 /docs/en/supporting-information/56800SCI.pdf 2016-10-31 1131558009438711299366 PSP 33 Nov 9, 2005 Training Presentation SCI Hands-on Exercise for 56800/E Digital Signal Controllers None /docs/en/supporting-information/56800SCI.pdf English documents 3335342 None 501713016990820713 2022-12-07 N /docs/en/supporting-information/56800SCI.pdf SCI Hands-on Exercise for 56800/E Digital Signal Controllers /docs/en/supporting-information/56800SCI.pdf documents 501713016990820713 Training Presentation N en None Y pdf 0 N N SCI Hands-on Exercise for 56800/E Digital Signal Controllers 3.3 MB 56800SCI N 1131558009438711299366 /docs/en/supporting-information/56800PWMADCSYNCH.pdf 2005-11-08 1131465254878723969755 PSP 34 Nov 8, 2005 Training Presentation PWM to ADC synchronization for 56F83xx/1xx and 56F801x Digital Signal Controllers None /docs/en/supporting-information/56800PWMADCSYNCH.pdf English documents 1979661 None 501713016990820713 2022-12-07 /docs/en/supporting-information/56800PWMADCSYNCH.pdf PWM to ADC synchronization for 56F83xx/1xx and 56F801x Digital Signal Controllers /docs/en/supporting-information/56800PWMADCSYNCH.pdf documents 501713016990820713 Training Presentation N en None Y pdf 0 N PWM to ADC synchronization for 56F83xx/1xx and 56F801x Digital Signal Controllers 2.0 MB 56800PWMADCSYNCH N 1131465254878723969755 /docs/en/supporting-information/ECS04W54.pdf 2005-10-03 1128375910692715303963 PSP 35 Nov 2, 2005 Training Presentation Open up a CAN with 56800/E Digital Signal Controllers None /docs/en/supporting-information/ECS04W54.pdf English documents 1362829 None 501713016990820713 2023-06-18 /docs/en/supporting-information/ECS04W54.pdf Embedded Connectivity Summit 2004 - Open up a CAN with 56800/E Digital Signal Controllers /docs/en/supporting-information/ECS04W54.pdf documents 501713016990820713 Training Presentation N en None Y pdf 1 N Embedded Connectivity Summit 2004 - Open up a CAN with 56800/E Digital Signal Controllers 1.4 MB ECS04W54 N 1128375910692715303963 /docs/en/supporting-information/ECS04P37.pdf 2016-10-31 1128375904386718648439 PSP 36 Oct 3, 2005 Training Presentation None /docs/en/supporting-information/ECS04P37.pdf English documents 1073913 None 501713016990820713 2023-06-18 N /docs/en/supporting-information/ECS04P37.pdf Embedded Connectivity Summit 2004 - Low-Cost Modem Applications and Implementations Using the 56F8300 /docs/en/supporting-information/ECS04P37.pdf documents 501713016990820713 Training Presentation N en None Y pdf 0 N N Embedded Connectivity Summit 2004 - Low-Cost Modem Applications and Implementations Using the 56F8300 1.1 MB ECS04P37 N 1128375904386718648439 /docs/en/supporting-information/ECS04P32.pdf 2016-10-31 1128375902252714709118 PSP 37 Oct 3, 2005 Training Presentation FlexRay Protocol Overview and Applications Demonstration with 56F8300 None /docs/en/supporting-information/ECS04P32.pdf English documents 1263402 None 501713016990820713 2023-06-18 N /docs/en/supporting-information/ECS04P32.pdf Embedded Connectivity Summit 2004 - FlexRay Protocol Overview and Applications Demonstration with 56F8300 /docs/en/supporting-information/ECS04P32.pdf documents 501713016990820713 Training Presentation N en None Y pdf 0 N N Embedded Connectivity Summit 2004 - FlexRay Protocol Overview and Applications Demonstration with 56F8300 1.3 MB ECS04P32 N 1128375902252714709118 /docs/en/supporting-information/ECS04D76.pdf 2016-10-31 1128375893841724508566 PSP 38 Oct 3, 2005 Training Presentation None /docs/en/supporting-information/ECS04D76.pdf English documents 1609688 None 501713016990820713 2023-06-18 N /docs/en/supporting-information/ECS04D76.pdf Embedded Connectivity Summit 2004 - Getting Started with CodeWarrior™ Tools /docs/en/supporting-information/ECS04D76.pdf documents 501713016990820713 Training Presentation N en None Y pdf 0 N N Embedded Connectivity Summit 2004 - Getting Started with CodeWarrior™ Tools 1.6 MB ECS04D76 N 1128375893841724508566 /docs/en/supporting-information/ECS04D74.pdf 2016-10-31 1128375891764705093646 PSP 39 Oct 3, 2005 Training Presentation None /docs/en/supporting-information/ECS04D74.pdf English documents 1337633 None 501713016990820713 2023-06-18 N /docs/en/supporting-information/ECS04D74.pdf Embedded Connectivity Summit 2004 - Efficient C for 56800/E Digital Signal Controllers /docs/en/supporting-information/ECS04D74.pdf documents 501713016990820713 Training Presentation N en None Y pdf 0 N N Embedded Connectivity Summit 2004 - Efficient C for 56800/E Digital Signal Controllers 1.3 MB ECS04D74 N 1128375891764705093646 /docs/en/supporting-information/ECS04M95.pdf 2016-10-31 1128375895935701756441 PSP 40 Oct 27, 2004 Training Presentation Hands-Free and Feature Phone Applications for the Industrial and Commercial Markets Using the 56800/E Digital Signal Controllers None /docs/en/supporting-information/ECS04M95.pdf English documents 974201 None 501713016990820713 2022-12-07 N /docs/en/supporting-information/ECS04M95.pdf Embedded Connectivity Summit 2004 - Hands-Free and Feature Phone Applications for the Industrial and Commercial Markets Using the 56800/E Digital Signal Controllers /docs/en/supporting-information/ECS04M95.pdf documents 501713016990820713 Training Presentation N en None Y pdf 0 N N Embedded Connectivity Summit 2004 - Hands-Free and Feature Phone Applications for the Industrial and Commercial Markets Using the 56800/E Digital Signal Controllers 974.2 KB ECS04M95 N 1128375895935701756441 /docs/en/supporting-information/ECS04W65.pdf 2016-10-31 1128372770391721916525 PSP 41 Sep 22, 2004 Training Presentation 56800/E Digital Signal Controllers in Connectivity Applications None /docs/en/supporting-information/ECS04W65.pdf English documents 2212253 None 501713016990820713 2023-06-18 N /docs/en/supporting-information/ECS04W65.pdf Embedded Connectivity Summit 2004 - 56800/E Digital Signal Controllers in Connectivity Applications /docs/en/supporting-information/ECS04W65.pdf documents 501713016990820713 Training Presentation N en None Y pdf 0 N N Embedded Connectivity Summit 2004 - 56800/E Digital Signal Controllers in Connectivity Applications 2.2 MB ECS04W65 N 1128372770391721916525 User Guide 8 /docs/en/user-guide/MC56F8300UM.pdf 2003-09-18 1063939252940725704521 PSP 21 Oct 3, 2007 User Guide Features of the 56F8300 Series of 16-bit hybrid controllers are described in this&#13;&#10;preliminary manual release. Peripheral modules are documented here. None /docs/en/user-guide/MC56F8300UM.pdf English documents 6375187 None 132339537837198660 2022-12-07 /docs/en/user-guide/MC56F8300UM.pdf 56F8300 Peripheral User Manual /docs/en/user-guide/MC56F8300UM.pdf documents 132339537837198660 User Guide N en None Y pdf 10 N 56F8300 Peripheral User Manual 6.4 MB MC56F8300UM.PDF N 1063939252940725704521 /docs/en/user-guide/56800EFPUG.pdf 2005-09-30 1128116417222721579465 PSP 22 Sep 30, 2005 User Guide The 56800E Flash Programmer provides a means to program the on-chip Flash of the 56800E DSC family. The Flash Memory blocks are programmed in circuit, using the JTAG/EOnCE interface. The 56800E Flash Programmer runs under a 32-bit Windows environment on PC compatible computers. A Parallel Command Converter or CodeWarrior USB TAP is needed to provide the interface between the JTAG/OnCE interface of the target system and the computer. None /docs/en/user-guide/56800EFPUG.pdf English documents 578182 None 132339537837198660 2023-06-19 /docs/en/user-guide/56800EFPUG.pdf 56800E Flash Programmer - User's Guide /docs/en/user-guide/56800EFPUG.pdf documents 132339537837198660 User Guide N en None Y pdf 0 N 56800E Flash Programmer - User's Guide 578.2 KB 56800EFPUG N 1128116417222721579465 /docs/en/user-guide/MC56F83XXBLUM.pdf 2003-09-15 1063667863511715880310 PSP 23 Sep 29, 2005 User Guide The Bootloaders for the 56F83xx devices were developed to load and run a users application by parsing an S-Record file, then copying the parsed S-Record file into the appropriate Program and Data memory. None /docs/en/user-guide/MC56F83XXBLUM.pdf English documents 923768 None 132339537837198660 2023-06-18 /docs/en/user-guide/MC56F83XXBLUM.pdf 56F83xx SCI/CAN Bootloader User Manual /docs/en/user-guide/MC56F83XXBLUM.pdf documents 132339537837198660 User Guide N en None Y pdf 6 N 56F83xx SCI/CAN Bootloader User Manual 923.8 KB MC56F83XXBLUM N 1063667863511715880310 /docs/en/user-guide/8300ACVCTD.pdf 2005-03-09 1110386460707727677584 PSP 24 Feb 28, 2005 User Guide This application exercises vector control of the 3-phase AC Induction Motor (ACIM) using Processor Expert (PE), a 56F8346, 56F8357, or 56F8367 EVM board, and 3-phase AC / BLDC High-Voltage (HV) power stage. None /docs/en/user-guide/8300ACVCTD.pdf English documents 561604 None 132339537837198660 2023-06-19 /docs/en/user-guide/8300ACVCTD.pdf Targeting manual 3ph ACIM Vector Control.fm /docs/en/user-guide/8300ACVCTD.pdf documents 132339537837198660 User Guide N en None N pdf 0 N Targeting manual 3ph ACIM Vector Control.fm 561.6 KB 8300ACVCTD N 1110386460707727677584 /docs/en/user-guide/8300SRMxxTD.pdf 2005-03-09 1110385757119694519948 PSP 25 Feb 28, 2005 User Guide This application exercises sensorless control of the 3-phase Switched Reluctance Motor (SRM) using Processor Expert<sup>&#174;</sup> (PE), a 56F8346, 56F8357, or 56F8367 EVM boards, and a 3-phase SR High-Voltage (HV) Power Stage. None /docs/en/user-guide/8300SRMxxTD.pdf English documents 573878 None 132339537837198660 2023-06-19 /docs/en/user-guide/8300SRMxxTD.pdf Targeting manual 3ph SRM Sensorless Control.fm /docs/en/user-guide/8300SRMxxTD.pdf documents 132339537837198660 User Guide N en None N pdf 0 N Targeting manual 3ph SRM Sensorless Control.fm 573.9 KB 8300SRMXXTD N 1110385757119694519948 /docs/en/user-guide/8300SRMHSTD.pdf 2005-03-09 1110386464785711164368 PSP 26 Feb 28, 2005 User Guide This application exercises control of a 3-phase Switched Reluctance Motor (SRM) with Hall Sensors, using Processor Expert<sup>&#174;</sup> (PE), a 56F8346, 56F8357 or 56F8367 EVM board and a 3-phase SRM highvoltage power stage. None /docs/en/user-guide/8300SRMHSTD.pdf English documents 662259 None 132339537837198660 2023-06-19 /docs/en/user-guide/8300SRMHSTD.pdf Targeting manual 3ph SRM Hall Sensor Control.fm /docs/en/user-guide/8300SRMHSTD.pdf documents 132339537837198660 User Guide N en None N pdf 0 N Targeting manual 3ph SRM Hall Sensor Control.fm 662.3 KB 8300SRMHSTD N 1110386464785711164368 /docs/en/user-guide/8300PMSMTD.pdf 2005-03-09 1110386462872718893639 PSP 27 Jan 28, 2005 User Guide This application exercises vector control of the 3-Phase Permanent Magnet Synchronous Motor (PMSM) using Processor Expert<sup>&#174;</sup> (PE), a 56F8346, 56F8357, or 56F8367 EVM board and a 3-Phase AC / BLDC High-Voltage Power Stage. None /docs/en/user-guide/8300PMSMTD.pdf English documents 575098 None 132339537837198660 2023-06-19 /docs/en/user-guide/8300PMSMTD.pdf Targeting manual 3ph PMSM Vector Control.fm /docs/en/user-guide/8300PMSMTD.pdf documents 132339537837198660 User Guide N en None N pdf 0 N Targeting manual 3ph PMSM Vector Control.fm 575.1 KB 8300PMSMTD N 1110386462872718893639 /docs/en/user-guide/8300PUG.pdf 2005-01-06 1105036294505701294207 PSP 28 Dec 30, 2004 User Guide Unless otherwise noted, the term "56F8300/56F8100" refers to the 56F834x/56F814x, 56F835x/56F815x and 56F836x/56F816x devices only. There are several perspectives to take when considering issues which arise when porting code from the 56F807 to any of the 56F8300/56F8100 devices. This document will view the memory map as a distinguishing feature and therefore, devices will be described using the generic part number (such as 56F834x) in most cases. None /docs/en/user-guide/8300PUG.pdf English documents 3619989 None 132339537837198660 2023-06-19 /docs/en/user-guide/8300PUG.pdf 56F807 to 56F8300/56F8100 Porting - User's Guide /docs/en/user-guide/8300PUG.pdf documents 132339537837198660 User Guide N en None Y pdf 0 N 56F807 to 56F8300/56F8100 Porting - User's Guide 3.6 MB 8300PUG N 1105036294505701294207 White Paper 2 /docs/en/white-paper/EEPROMFLASH.pdf 2003-09-18 1063316957683718386603 PSP 56 Jul 27, 2005 White Paper None /docs/en/white-paper/EEPROMFLASH.pdf English documents 125568 None 918633085541740938 2022-12-07 /docs/en/white-paper/EEPROMFLASH.pdf 56F83xx Lends Hybrid Applications EEPROM Capability FlashEE /docs/en/white-paper/EEPROMFLASH.pdf documents 918633085541740938 White Paper N en None N pdf 1 N 56F83xx Lends Hybrid Applications EEPROM Capability FlashEE 125.6 KB EEPROMFLASH N 1063316957683718386603 /docs/en/white-paper/WP5683XX_1.pdf 2003-11-11 1068587446891714924507 PSP 57 Sep 1, 2003 White Paper Motorola hybrid and microcontrollers have a long and distinguished history in industrial and control applications. None /docs/en/white-paper/WP5683XX_1.pdf English documents 730075 None 918633085541740938 2022-12-07 /docs/en/white-paper/WP5683XX_1.pdf 56F8300 Benefits in Industrial Applications /docs/en/white-paper/WP5683XX_1.pdf documents 918633085541740938 White Paper N en None N pdf 0 N 56F8300 Benefits in Industrial Applications 730.1 KB WP5683XX_1 N 1068587446891714924507 true Y Products
