Sensor ToolBox Development Board for FXLS8974CF 3-Axis IoT Accelerometer

FRDM-XXXX-A8974

Roll over image to zoom in

Sensor toolbox development board for FXLS8974CF with enablement software tools.

Sensor Boards:

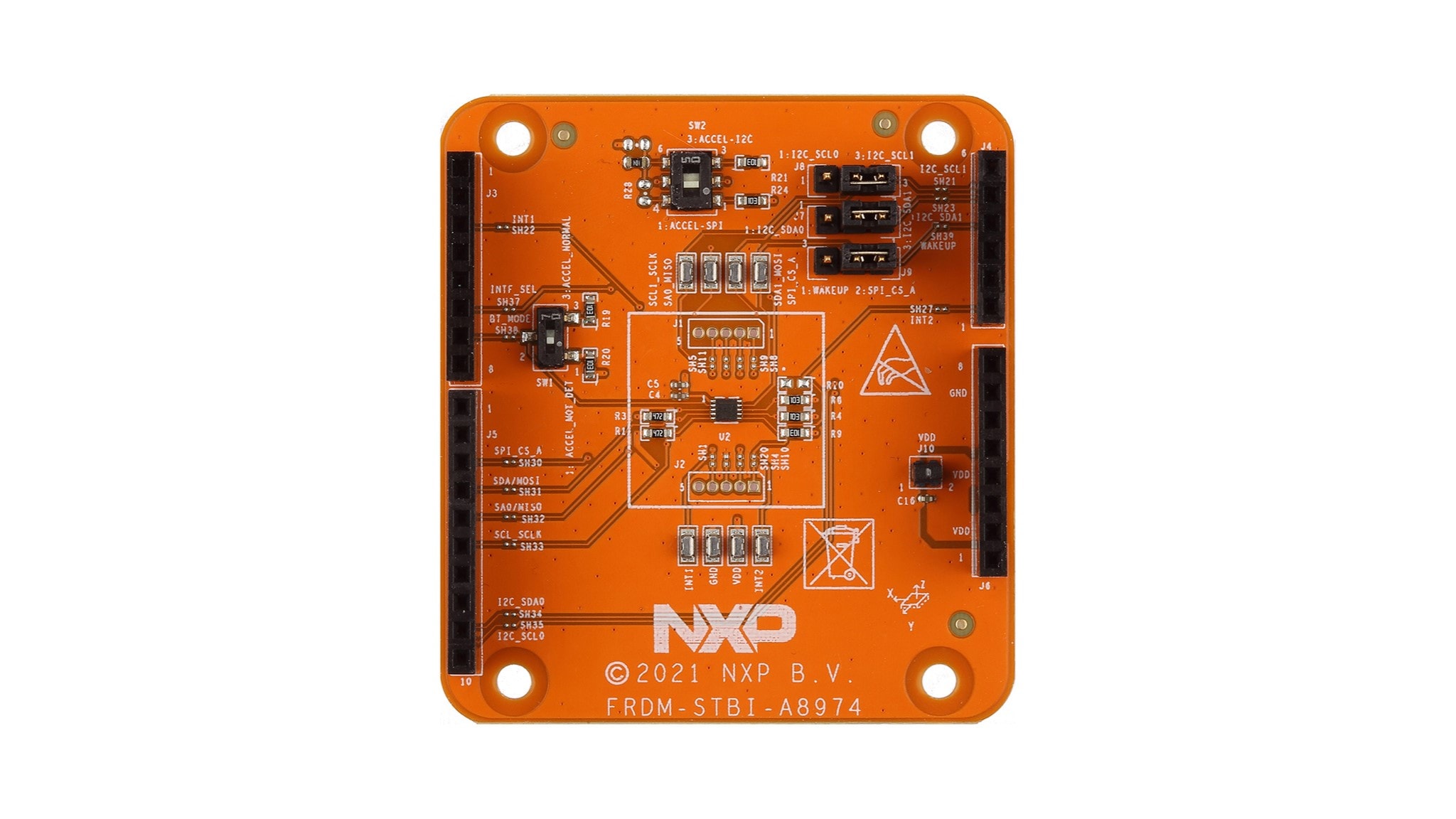

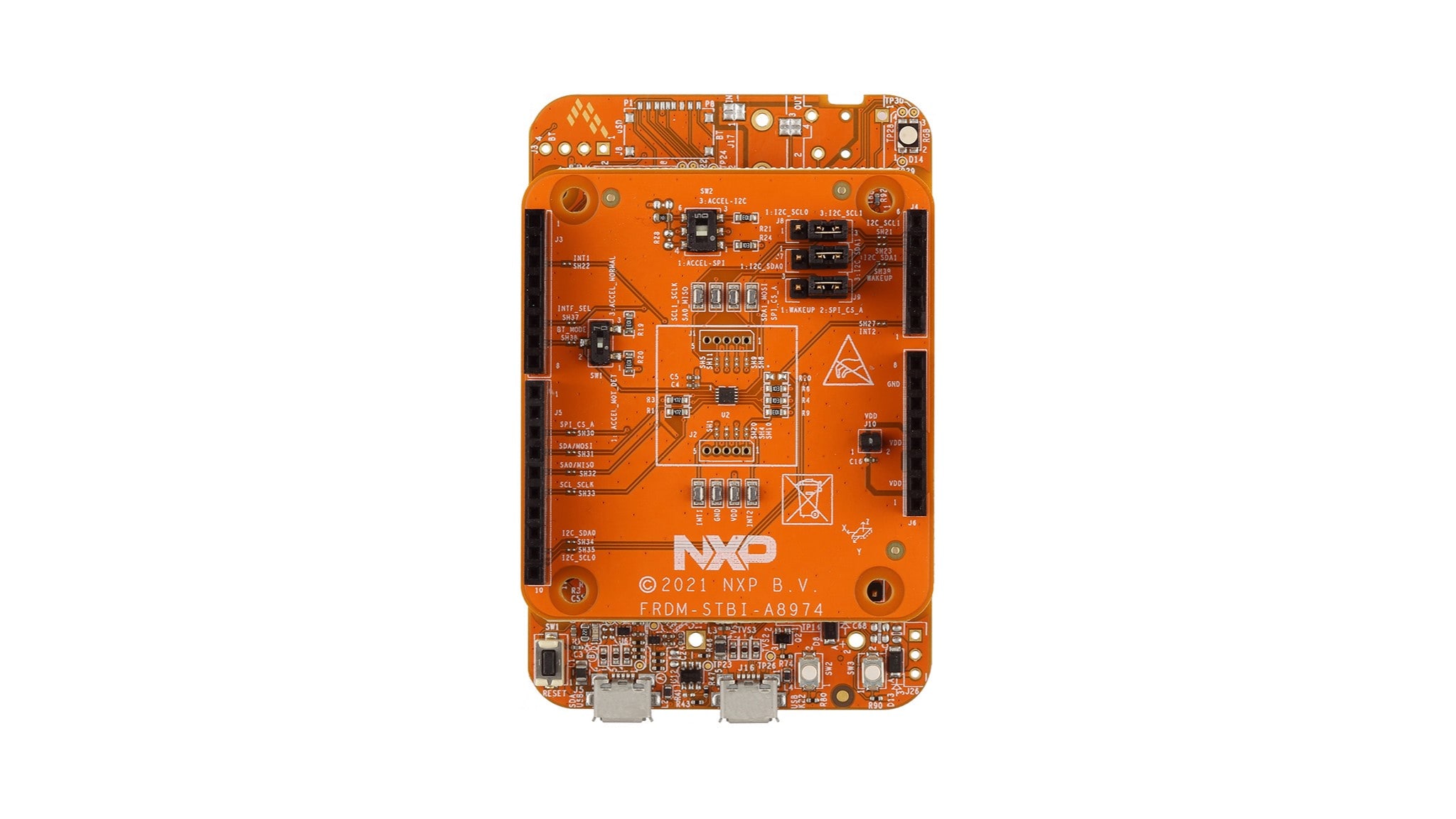

  • Sensor shield board: FRDM-STBI-A8974 is a sensor add-on/expansion shield board for FXLS8974CF motion wake-up accelerometer which can be used with any NXP FRDM MCU evaluation board with Arduino compatible expansion connectors

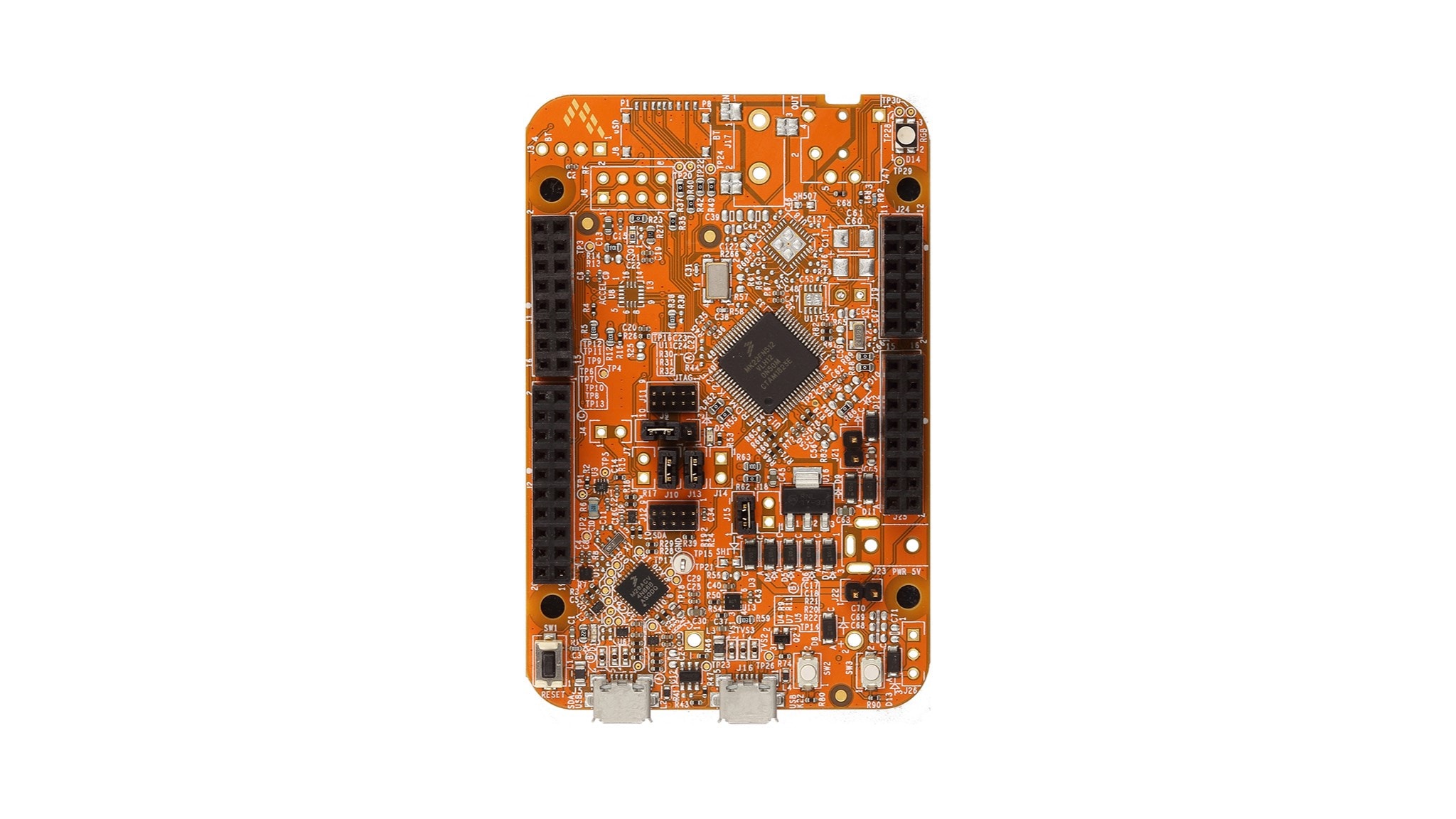

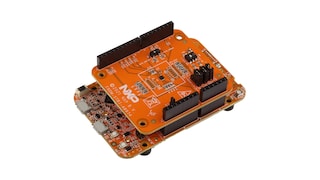

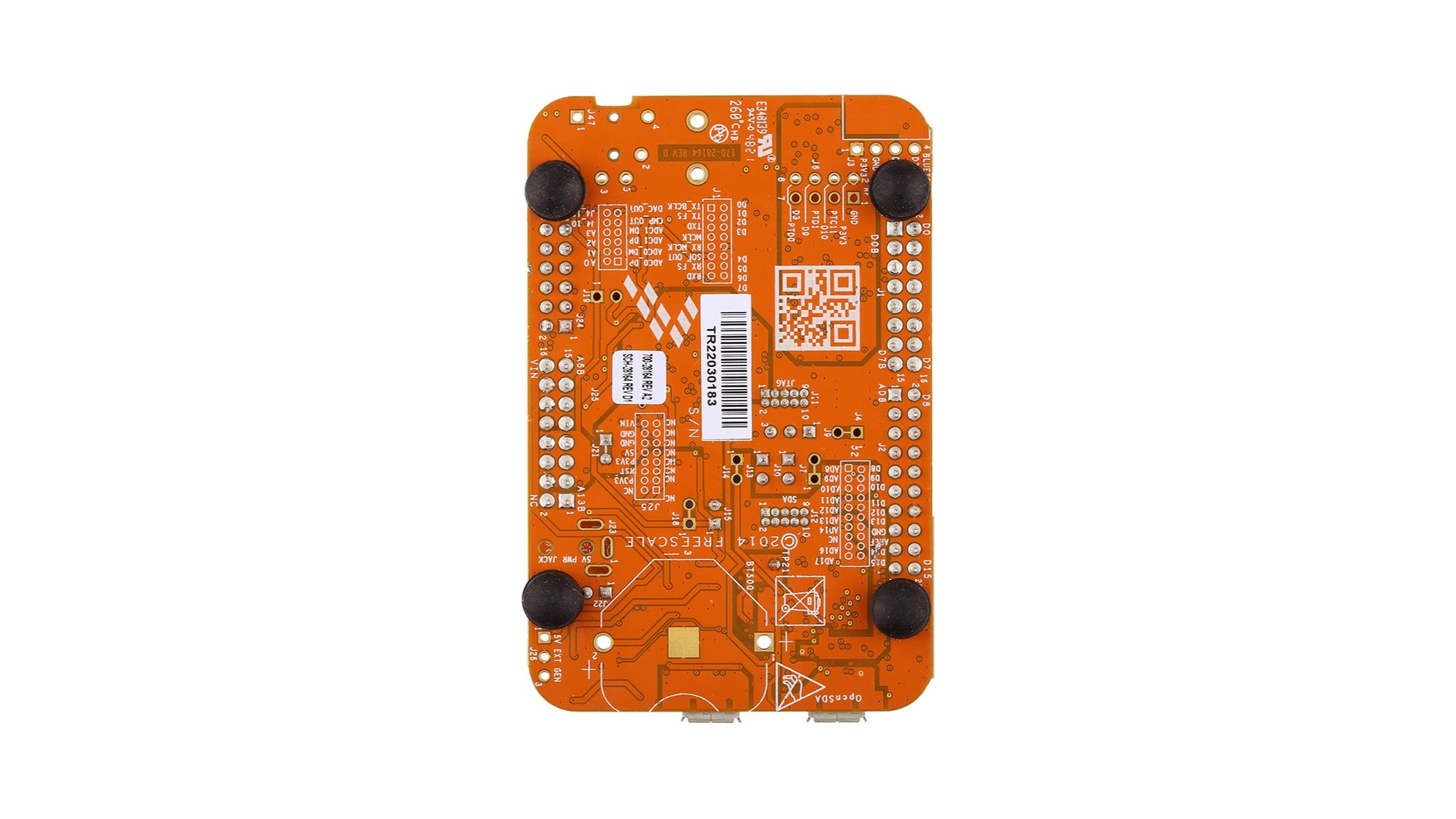

  • Evaluation kit: FRDM-K22F-A8974, sensor shield board can be kitted with FRDM-K22F MCU board to enable quick customer evaluation and development using sensor toolbox enablement software tools

Embedded Software Framework:

Evaluation and Visualization Software:

Product Details

Supported Devices

Sensors

Accelerometers

  • FXLS8974CF: ±2g/±4g/±8g/±16g, Low-Power 12-Bit Digital IoT Accelerometer

Features

Demonstration / Custom Kits

  • Enables out-of-the-box demos and evaluation using the FreeMASTER sensor tool
    • Graph visualization, register level analysis, real-time interrupt evaluation and data logging
  • Enables embedded sensor project development using IoT Sensing SDK
    • Example out-of-box projects for sensors with ultra-low power motion wake-up, interrupt, polling and FIFO modes using I²C, SPI

Sensor Shield Board

  • Compatible with Arduino® and most NXP Freedom development boards
  • Supports I²C and SPI communication interface with host MCU
  • Supports hardware configurability to switch accelerometer mode (normal versus motion detect) and I²C/SPI interface mode
  • Support multiple test points on the board

Buy Options

FRDM-K22F-A8974-Image

Click to expand

  • FRDM-K22F-A8974
    Active

  • Sensor ToolBox Development Board for FXLS8974CF 3-Axis IoT Accelerometer.

  • Kit Contains:

    • FRDM-STBI-A8974 sensor shield board
    • FRDM-K22F MCU board
    • USB cable
    • Quick Start Guide
  • $138.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 4
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
FRDM-STBI-A8974-Image

Click to expand

  • FRDM-STBI-A8974
    Active

  • Sensor ToolBox Development Board for FXLS8974CF 3-Axis IoT Accelerometer.

  • Kit Contains:

    • FRDM-STBI-A8974 Sensor Shield Board
    • USB cable
    • Quick Start Guide
  • $16.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 44
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
