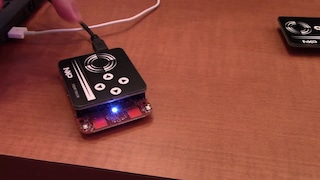

NXP® Touch software is designed to speed development of your touch applications and is ideal for use with Kinetis® MCUs. Available as a source code, this software download features touch detection algorithms and is ideally suited for RTOS based applications. NXP Touch software employs a modular architecture with a variety of touch centric controls, modules, and electrode data objects, enabling integrated and customizable features.

Diagram

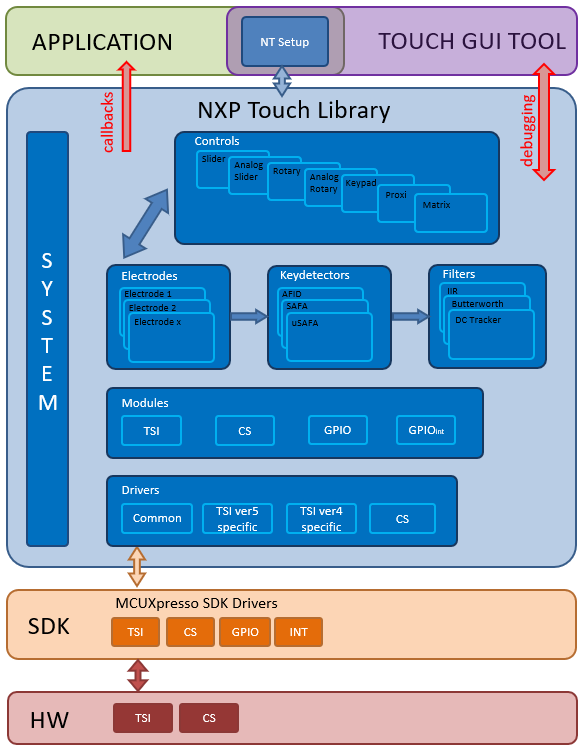

NXP® Touch Software Block diagram

NXP<sup>®</sup> Touch Software Block diagram
Get diagram PDF

Features

  • Available as source code
  • Based on MCUXpresso SDK
  • Released as MCUXpresso middleware
  • Ideally suited for RTOS based applications
  • Fully supports the NXP touch sensing interface (TSI) peripheral available on many KE1xZ MCUs
  • Abstracted decoder controls, such as rotary, slider, keypad, analog rotary, analog slider
  • Proximity and shielding electrodes
  • Advanced filtering and integrating detection (AFID) or Signal Adaptive Filtering Algorithm (SAFA) keydetectors
  • Water tolerance
  • Sensitivity auto-tuning function
  • FreeMASTER GUI Tools

Supported Devices

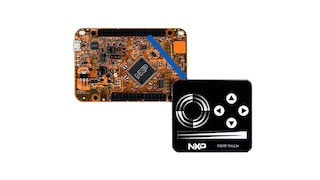

  • KE1xZ: KE1xZ: Arm® Cortex®-M0+ 5V Main Stream MCU with NXP Touch and CAN Control
