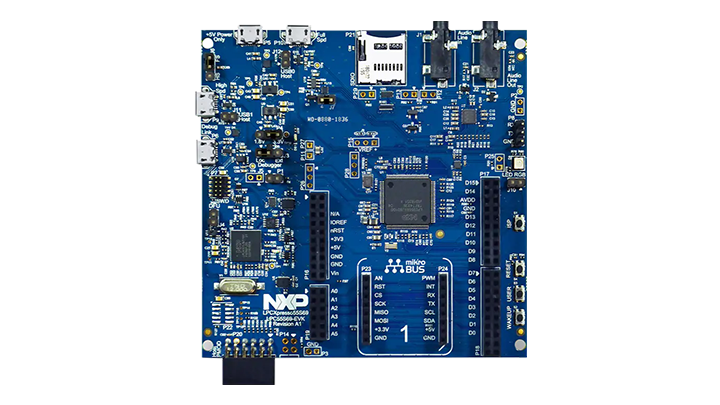

LPCXpresso55S69 Development Board

LPC55S69-EVK Active

Roll over image to zoom in

LPCXpresso boards for the LPC5500 series MCUs provide a powerful, extendable platform for evaluation and prototyping using the MCUXpresso suite of software and tools. Arduino UNO Mikroelekronika Click module sites provide a wide selection of add-on options. The boards feature a high speed USB debug probe based with easy firmware update options to support CMSIS-DSP or a special version of J-link LITE from SEGGER. The board can also be used with an external debug probe such as those from SEGGER and P&E.

Product Details

Supported Devices

Processors and Microcontrollers

LPC5500 Arm Cortex-M33

  • LPC55S6x: High Efficiency Arm® Cortex®-M33-Based Microcontroller Family

Features

Microcontroller

  • LPC55S69 dual core Arm Cortex-M33 microcontroller running at up to 150 MHz.

Memory Expansion

  • Micro SD card slot (4-bit SDIO).

Connectivity

  • UART and SPI port bridging from LPC55S69 target to USB via the onboard debug probe.
  • High and full speed USB ports with micro A/B connector for host or device functionality.

Debug

  • Onboard, high-speed USB, Link2 debug probe with CMSIS-DAP and SEGGER J-Link protocol options.
  • Hardware support for external debug probe.

Sensors

  • NXP MMA8652FCR1 accelerometer

Audio

  • Stereo audio codec with a line in/out

Expansion Options

  • MikroEletronika Click expansion option
  • LPCXpresso-V3 expansion connectors compatible with Arduino® UNO Rev3
  • PMod compatible expansion / host connector

User Interface

  • RGB user LED, plus Reset, ISP, Wake, and user buttons

Buy Options

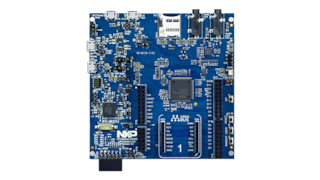

LPC55S69-EVK-Image

Click to expand

  • $44.85 USD
    • Availability: In Stock
    • Inventory: 22
    • Shipping: Normally ships 1-2 business days
ADD TO CART
